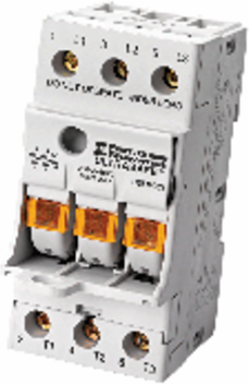

Mersen USFMBBC1 USFM - Midget
- MPN: USFMBBC1
- UPC: 782001382162
- PPN: FER-USFMBBC1
CAD
$53.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen UltraSafe Fuse Modules (USFM) have a unique, compact design suited for use with 45mm wide IEC contactors. These modules also offer other features not found on other class CC and midget UltraSafe fuseholders such as an auxiliary contact option. When the auxiliary is wired to an adjacent contactor the load is dropped out by the contactor immediately once the fuse extractor handle is opened. Additionally, the fuse module features padlock capabilities, compact bus bars for line side terminations, and tool free removal from DIN rail. Yet the fuse modules still incorporate well known UltraSafe features such as IP20 protection, easy operating fuse extraction handles and an open fuse visual indication option.
Features
- Dedicated 3-pole fuse module
- DIN-rail mount with tool free removal
- IP20 Finger-safe
- Optional visual blown fuse indication
- Compact footprint - 45mm width
- Ability to padlock in Open position with 1/4" diameter shank
- Auxiliary contact option (1NO/1NC)
Specifications
Product Details
- AC Voltage Range
- 240 - 600 VAC
- DC Voltage Range
- 240 - 600 VDC
- Materials Contact
- Tin-plated Copper Copper
- UL Certification
- E52283 IZLT.E52283E52283 IZLT2.E52283
- CSA Certification
- 6225-01 032169_0_0006225-01 3211-37
- Enclosure
- IP20
- CE conformity
- Consult Technical Services
- Ampere Range
- 0-30 A
- Applications
- Primarily for replacement of circuit breakers in motor circuits to achieve higher SCCR Circuits up to 600V for motors, control, transformers, etc…Applications requiring lock-out / tag-out procedures
- Lead Free
- Consult Technical Services
ROHS CompliantConsult Technical Services
Body MaterialLatamid
SCCR200, 100, kA
MountingDIN-rail
Number of Poles3
ClassMidget Class CC Accessory
Wiring Range#10 to 16 AWG, #10 to 6 AWG
Connection Terminal TypePressure Plate
StandardsUL Listed to standard 4248-4, File E52283 CSA Certified C22.2, Class 6225, File 32169 UL Listed to standard 508, File E336456 UL Recognized Component to standard 4248-1, File E319605 UL Recognized Component to standard 4248-14, File E52283 CSA Certified C22.2, Class 6225, File 32169 IEC Compliant to 60269-2-1, 60947-3
