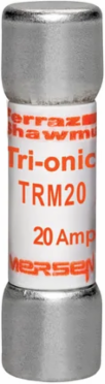

Mersen TRM20 Tri-Onic® Midget Fuse 250V 20A Time-Delay 1-1/2 Inch x 13/32 Inch
- MPN: TRM20
- UPC: 782001746636
- PPN: FER-TRM20
CAD
$5.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Features
- The Tri-Onic TRM20 features an engineered 12-second time-delay at a 200% overcurrent rating. This built-in slow-blow characteristic absorbs the temporary high inrush current generated by small inductive motors and transformers, preventing nuisance blowing and eliminating costly, unnecessary downtime.
- This midget-class cartridge fuse handles applications up to 250VAC with a continuous 20A current rating and a 10kA interrupting capacity (I.R.). It delivers ideal supplemental overcurrent protection for control circuits, small transformers, and specialized lighting installations without prematurely breaking under normal load variances.
- Built to the universal industry-standard 5AG midget physical dimensions (10.3 mm times 38.1 mm or 13/32 inch times 1-1/2 inch), this ferrule-terminal cylindrical fuse provides drop-in compatibility with standard open-style clips, blocks, and finger-safe modules like the Mersen UltraSafe USM series. The tin-plated copper contacts resist oxidation over time, ensuring a secure fit and excellent electrical conductivity.
- This electrical component is fully UL Listed to Standard 248-14 (File E33925) and CSA Certified to Standard C22.2 No. 248.14. These rigorous certifications ensure your facility maintains compliance with local electrical safety codes, making it an excellent, reliable option for facility managers and maintenance technicians who require verified parts to pass inspections.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V AC
- Speed/Characteristic
- Time Delay
- Interrupting Rating
- 10 kA
- Length
- 1.5 in
- Mounting
- Clip
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- GMG
Amperage20 A
Time-Delay12 seconds at 200% rating
Frequency50/60 Hz
Fuse ClassMidget
Weight0.013 lb
Connection/Terminal TypeFerrule
ComplianceUL Listed to standard 248-14, CSA Certified to Standard C22.2 No. 248.14, RoHS Compliant
