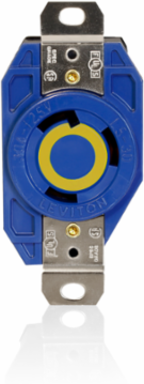

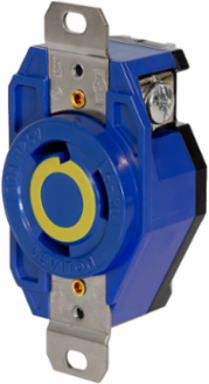

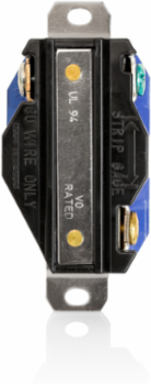

Leviton 2610-BU V-0-Max Flush Mount Locking Receptacle, 30 Amp, 125 Volt, NEMA L5-30R, Blue
- MPN: 2610-BU
- UPC: 078477925621
- PPN: LEV-2610-BU
CAD
$72.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30 Amp, 125 Volt, NEMA L5-30R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLUE
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
Material Specifications
- Base Material
- Valox
- Color
- Blue
- Face Material
- Valox
- Line Contacts
- Brass
- Terminal Clamps
- Zinc-Plated Brass
Body MaterialValox 357
Cover MaterialValox 357
Ground ContactsBrass
Strap MaterialNickel-Plated Brass
Terminal ScrewsChromated Brass
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 14-8 AWG
- Termination
- Back & Side
Screw Terminal Torque14-18 in-lbs
Terminal IDMarked on Device
Warranty
- Warranty
- Limited Lifetime Warranty
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingIsolated Ground
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- Screw Terminal Torque
- 14-18 in-lbs
Torque Range14-16 in-lbs
