Schneider Electric ATV320U11M2WS Altivar Machine Variable Speed Drive 1.1kW 200-240V IP65 Enclosed

MPN: ATV320U11M2WS
PPN: SCH-ATV320U11M2WS
UNSPSC: 39122001

$1026.17

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

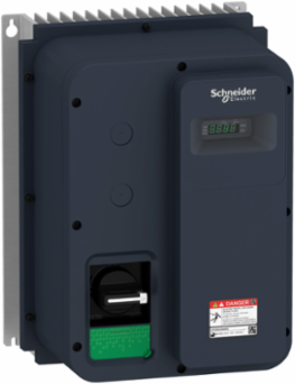

Altivar Machine Variable Speed Drive 1.1kW 200-240V IP65 Enclosed

Features

Safety function
Fanless
For simple and advanced machines
Advanced Motor control
Less downtime.
PLC integrated.
Synchronous and asynchronous motors comptatible

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia
Depth	235.0 mm

Weight	9949.9 g

Communications & Management Attributes

Communication Port Protocol	Modbus serial, CANopen

Complementary Attributes

Maximum Switching Current	relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
Maximum Associated Fuse Rating	25.0 A
Maximum Input Current Per Phase	13.7 A
Maximum Output Voltage	240 V
Us Rated Supply Voltage	200...240 V200...240 V - 15...10 %
Maximum Acceleration Under Shock Load During Storage	150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation	10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load During Transport	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Storage	3.5 mm at 2...13 Hz

Brake Chopper Integrated	true
Maximum Horse Power Rating	1.5 hp
Maximum Output Frequency	0.599 kHz
Minimum Switching Current	relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Maximum Acceleration Under Shock Impact During Operation	150 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Transport	150 m/s² at 11 ms
Maximum Acceleration Under Vibratory Load During Storage	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Operation	1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Transport	3.5 mm at 2...13 Hz

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Asynchronous Motor Control Profile	voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
Linearity Error	AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
Motor Slip Compensation	automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
Protection Type	input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
Speed Accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
Certificate Agency	CE, ATEX, NOM, GOST, EAC, RCM, KC
Environmental Class During Transport	class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
Carbon Footprint Of The End Of Life Phase C1 To C4	8.262011275849908, 8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	285 kg CO2 eq., 284.91488343183215
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
4 Quadrant Operation Possible	true
Application In Domestic And Commercial Area Permitted	false
Braking To Standstill	by DC injection
Computer Port	true
Emc Filter	Class C2 EMC filter integrated
Format Of The Drive	enclosed
Line Current	13.7 A 200 V heavy duty)11.5 A 240 V heavy duty)
Motor Power Kw	1.1 kW heavy duty
Network Frequency	50-60 Hz
Number Of Hw Interfaces Industrial Ethernet	0.0
Number Of Hw Interfaces Parallel	0.0
Number Of Hw Interfaces Serial Rs23	0.0
Number Of Hw Interfaces Serial Rs485	1.0
Number Of Hw Interfaces Usb	0.0
Operating Element Present	true
Optical Interface Present	false
Phase	single phase
Power Loss Per Device Current Dependent	61 W
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	complex machines
Range Of Product	Altivar Machine ATV320
Relative Symmetric Mains Voltage Tolerance	10 %
Returnability	Yes
Software Version	v6.2.5-6
Supporting Protocol For Bacnet	false
Supporting Protocol For Devicenet	true
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	true
Supporting Protocol For Profibus	true
Supporting Protocol For Profinet Io	true
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Switching Frequency	2...16 kHz adjustable4...16 kHz with derating factor
Total Lifecycle Carbon Footprint	1 200 kg CO2 eq.
Updatability	Upgradeable through digital modules
With Safety Function Safe Programmable Logic	false
Database Version	2024-01
Height Nominal	340 mm
Supporting Protocol For Ethernet/Ip	true
Nbr. Of Units In Pkg.	1
Emc Limit Value Complied	true
Supporting Protocol For As Interface Safety At Work	false
Supporting Protocol For Interbus Safety	false
With Safety Function Safe Direction Sdi	false
With Safety Function Safe Position Sp	false
With Safety Function Safe Stop 1 Ss1	true
With Safety Function Safely Limited Position Slp	false
With Sft Fct Safe Stop 2 Ss	false
Packaging Weight In G	2149.9
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	83

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Marking	CE, ATEX, UL, CSA, EAC, RCM
Option Card	communication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Time	logic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Motor Power Kw 10 N Motor Power Kw	1.1 kW
Environmental Class During Storage	class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
Carbon Footprint Of The Distribution Phase A4	1.8245977928394215, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	5 kg CO2 eq., 5.4470746916183055
Carbon Footprint Of The Use Phase B2 B3 B4 B6	900 kg CO2 eq., 900.0482708674406
Local Publishable Date	2026-03-25
Device Type	Variable speed drive - VSD Compacts
Traceability	Yes
Average Life Duration	10 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1908004EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1816
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	YES_SSI2Yes
Tier	1
Function Option	Standard
Market Segmentation	Industrial
1 Phase Low Current Possible	false
Apparent Power	2.8 kVA 240 V heavy duty)
Base Load Current At High Overload	3.9 A
Capacity Of Dc Link	1410 µF
Design Of Frequency Changer	U converter
Encoder Protocol	RS 422
Housing Material	plastic
Method Of Access	slave CANopen
Mounting Mode	wall mount
Nominal Switching Frequency	4 kHz
Number Of Hw Interfaces Other	1.0
Number Of Hw Interfaces Profinet	0.0
Number Of Hw Interfaces Serial Rs42	0.0
Number Of Hw Interfaces Serial Tty	0.0
Number Of Output Phases	1
Operating Position	vertical +/- 10 degree
Overvoltage Category	III
Power Dissipation In W	self-cooled 61 W 200 V 4 kHz
Power Loss Static Current Independent	61 W
Product Or Component Type	variable speed drive
Prospective Line Isc	1 kA
Regulation Loop	adjustable PID regulator
Relative Symmetric Network Frequency Tolerance	5 %
Sampling Duration	2 ms AI1, AI2, AI3) - analog input2 ms AQ1) - analog output
Supporting Protocol For Asi	false
Supporting Protocol For Can	true
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	true
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Synchronous Motor Control Profile	vector control without sensor
Transient Overtorque	170-200 % of nominal motor torque
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permitted	true
Data Source	extrapolated product
Width Nominal	250 mm
Supporting Protocol For Tcp/Ip	true
Customs Code	8504404000
Permitted Relative Humidity During Transport	class 2K5 according to EN 60721-3
Supporting Protocol For Data Highway	false
With Safety Function Safe Brake Management Sbc/Sbt	false
With Safety Function Safe Operating Stop Sos	false
With Safety Function Safe Speed Monitor Ssm	false
With Safety Function Safe Torque Off Sto	true
With Safety Function Safely Limited Speed Sls	true
Warranty In Months	18
Functional Unit Description	To adapt the speed and torque of synchronous, asynchronous motor to the machine's operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP65/UL type 1 conditions, at 380V to 500V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium phase, 40% uptime in low phase and 10% uptime in "standby" phase (equating it with standstill phase) of the 5000h operating time and 1000h of standby according to the "Electric Motor, VSD and PDS use phase GHG Emissions - CEMEP guideline: Duty profile for general Purpose Machinery_V1".
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	2226.75

Environment Attributes Main

Ambient Air Temperature For Operation	-10-40 °C without derating, -10-40 °C without derating, -10-60 °C, -10-60 °C, -10-40 °C without derating, -10-40 °C without derating40-60 °C with derating factor
Ambient Air Transport Temperature	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1200.4968380595806
Environmental Disclosure	ENVPEP1908004EN
Ip Degree Of Protection	IP65
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Permitted Relative Humidity During Operation	class 3K5 according to EN 60721-3

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Environmental Class During Operation	class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1908004EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 12
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1908004EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Permitted Relative Humidity During Storage	class 1K5 according to EN 60721-3

General Attributes

Phase	single phase
Range Of Product	Altivar Machine ATV320

Product Or Component Type	variable speed drive

ETIM

ETIM 8	EC001857
ETIM 10	EC001857

ETIM 9	EC001857

Output Attributes

Discrete Output Type	open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
Analogue Output Number	1
Discrete Output Number	3
Nominal Output Power	1.1 kW

Relay Output Type	configurable relay logic R1A 1 NO 100000 cyclesconfigurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
Analogue Output Type	software-configurable current AQ1 0...20 mA 800 Ohm 10 bitssoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Nominal Output Current	6.9 A

Input Attributes

Analogue Input Type	AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Discrete Input Type	STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
Discrete Input Number	7
