Variable Speed Drive, 15kW, 380-500V, Compact, 180mm Width
Variable Speed Drive, 15kW, 380-500V, Compact, 180mm Width
Schneider Electric

Schneider Electric ATV320D15N4C Variable Speed Drive, 15kW, 380-500V, Compact, 180mm Width

  • MPN: ATV320D15N4C
  • PPN: SCH-ATV320D15N4C
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2858.57

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

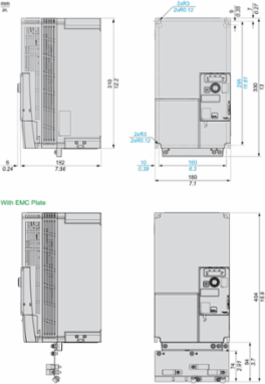

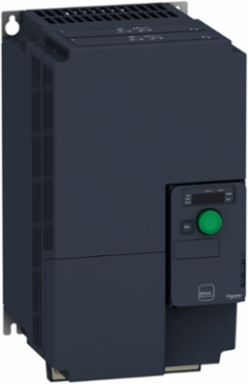

    Variable Speed Drive, 15kW, 380-500V, Compact, 180mm Width

    Features

    • Engineered for ultimate flexibility in industrial machinery, this variable frequency drive features advanced sensorless flux vector control profiles that deliver highly accurate open-loop speed and torque regulation. Whether you are running energy-efficient PM synchronous motors or heavy-duty asynchronous induction motors up to 20 HP (15 kW), you achieve maximized starting torque and dynamic dynamic response, eliminating the need for separate, motor-specific inventory.
    • The optimized, compact frame design allows for clean, vertical stacking inside machine frames and electrical enclosures without eating up valuable rail space. This high-density physical footprint enables automation engineers and panel builders to downsize new control panels or retrofitted machinery enclosures, significantly reducing raw materials and engineering layout costs.
    • This unit comes factory-equipped with certified safety architectures, including Safe Torque Off (STO) and Safe Stop 1 (SS1) logic, providing hardware-level machinery protection directly out of the box. By embedding these functional safety profiles within the drive, you eliminate the expense of external safety contactors, drastically simplify your wiring topology, and seamlessly comply with strict global safety directives.
    • Built to survive demanding manufacturing atmospheres, the internal printed circuit boards are treated with IEC 60721-3-3 class 3C3 protective conformal coating to guard against airborne dust, humidity, and chemical contaminants. The robust thermal management design ensures reliable 3-phase heavy-duty performance at ambient operating temperatures up to 50 C without derating, preventing unexpected line disruptions and costly unscheduled downtime.
    • Featuring native Modbus and CANopen protocols alongside options for EtherNet/IP, Modbus TCP, Profinet, and EtherCAT via seamless DTM integration, this VFD effortlessly links into modern industrial networks. Real-time diagnostic feedback and simplified parameter mapping via SoMove or SoMachine software bridge the gap between field devices and central control architectures, speeding up your commissioning times and optimizing machine monitoring.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, Latvia, Singapore, United States
    Depth198.0 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus serial, CANopen

    Complementary Attributes

    Maximum Switching Current
    relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
    Maximum Associated Fuse Rating
    80 A
    Maximum Input Current Per Phase
    47.3 A
    Maximum Output Voltage
    500 V
    Brake Chopper Integratedtrue
    Maximum Horse Power Rating20 hp
    Maximum Output Frequency0.599 kHz
    Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Electromagnetic Compatibility
    electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
    Linearity Error
    AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
    Motor Slip Compensation
    automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
    Protection Type
    input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
    Sampling Duration
    2 ms AI1, AI2, AI3) - analog input, 2 ms AQ1) - analog output
    Switching Frequency
    2...16 kHz adjustable, 4...16 kHz with derating factor
    [Us] Rated Supply Voltage
    380...500 V, 380...500 V - 15...10 %
    Environmental Class (During Storage)
    class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
    Carbon Footprint Of The Distribution Phase [A4]
    1.0416, 1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    2 kg CO2 eq., 1.9381
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    12 849 kg CO2 eq., 12849
    Local Publishable Date
    2026-06-19
    Stocking Flag
    Y
    Device Type
    Variable speed drive - VSD Compacts
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Distribution Carbon Footprint
    1.0416
    Use Carbon Footprint
    12849
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    1 Phase Low Current Possible
    false
    Apparent Power
    28.8 kVA 500 V heavy duty)
    Base Load Current At High Overload
    33.0 A
    Capacity Of Dc Link
    1660 µF
    Design Of Frequency Changer
    U converter
    Encoder Protocol
    RS 422
    Housing Material
    plastic
    Maximum Input Current Per Phase
    47.3 A
    Motor Power Kw
    15.0 kW heavy duty
    Network Frequency
    50-60 Hz
    Number Of Hw Interfaces Industrial Ethernet
    0.0
    Number Of Hw Interfaces Parallel
    0.0
    Number Of Hw Interfaces Serial Rs23
    0.0
    Number Of Hw Interfaces Serial Rs485
    1.0
    Number Of Hw Interfaces Usb
    0.0
    Operating Element Present
    true
    Optical Interface Present
    false
    Phase
    3 phase
    Power Loss Per Device Current Dependent
    452.0 W
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Specific Application
    complex machines
    Range Of Product
    Altivar Machine ATV320
    Relative Symmetric Mains Voltage Tolerance
    10 %
    Returnability
    Yes
    Supporting Protocol For Asi
    false
    Supporting Protocol For Can
    true
    Supporting Protocol For Devicenet Safety
    false
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    true
    Supporting Protocol For Profinet Cba
    false
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    12 979 kg CO2 eq.
    Updatability
    Upgradeable through digital modules
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permitted
    true
    Pep Code
    ENVPEP2311022EN
    Pep Verification Date
    2023-06-09
    Psr Version
    No PSR
    Data Source
    referent product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]
    Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Recyclability Potential, In %
    40
    Width Nominal
    180 mm
    Maximum Acceleration Under Shock Impact (During Operation)
    150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)
    1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)
    3.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)
    class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Work
    false
    Supporting Protocol For Ethernet/Ip
    true
    Supporting Protocol For Tcp/Ip
    true
    With Safety Function Safe Direction (Sdi)
    false
    With Safety Function Safe Position (Sp)
    false
    With Safety Function Safe Stop 1 (Ss1)
    true
    With Safety Function Safely Limited Position (Slp)
    false
    With Sft Fct Safe Stop 2 (Ss2)
    false
    Package Weight(Lbs)
    7.785 kg
    Warranty (In Months)
    18
    Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3]
    1.0762
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
    114.14
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Installation [A5]
    1.852
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]
    11.426
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
    115.21
    Climate Change - Total ( Kg Co2 Eq.) Installation [A5]
    1.9381
    Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]
    11.646
    Depletion Of Abiotic Resources - Elements (Kg.Equivalent.Sb) Manufacturing [A1-a3]
    0.0147
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    2139.1
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
    20.173
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    286.57
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
    3363.2
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    71312
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
    -132.52
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]
    7.6603
    Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
    15.756
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
    3696.4
    Marine Aquatic Eutrophication (Kg Of N Equiv) Operational Energy Use [B6]
    8.831
    Materials For Recycling (Kg) End Of Life [C1-c4]
    2.6438
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]
    32.781
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    79.447
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
    47012
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -29.342
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]
    29.342
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]
    1.4675
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    82.267
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
    -0.0047
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
    2182.5
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
    21.621
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
    292.84
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    43.383
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    18219
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
    -7.893
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    82.267
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    238778.054
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
    14.511
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    236400
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -167.66
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    7.9959
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    35.387
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    18219
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    8.7552
    Water Use (M3 Eq) Installation [A5]
    0.8277
    Water Use (M3 Eq) End Of Life [C1-c4]
    1411.4
    Persona Type IdsEU, OM, OM8
    Asynchronous Motor Control Profilevoltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
    Line Current47.3 A 380 V heavy duty), 33.3 A 500 V heavy duty)
    MarkingCE, ATEX, UL, CSA, EAC, RCM
    Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
    Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
    Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
    Certificate AgencyCE, ATEX, NOM, GOST, EAC, RCM, KC
    Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
    Environmental Class (During Transport)class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
    Carbon Footprint Of The End-of-life Phase [C1 To C4]11.646, 12 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]115 kg CO2 eq., 115.21
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityYes
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint115.21
    Installation Carbon Footprint1.9381
    End Of Life Carbon Footprint11.646
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311022EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1852
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    4 Quadrant Operation Possibletrue
    Application In Domestic And Commercial Area Permittedfalse
    Braking To Standstillby DC injection
    Computer Porttrue
    Emc Filterintegrated
    Format Of The Drivecompact
    Maximum Associated Fuse Rating80 A
    Method Of Accessslave CANopen
    Mounting Modewall mount
    Nominal Switching Frequency4 kHz
    Number Of Hw Interfaces Other1.0
    Number Of Hw Interfaces Profinet0.0
    Number Of Hw Interfaces Serial Rs420.0
    Number Of Hw Interfaces Serial Tty0.0
    Number Of Output Phases3
    Operating Positionvertical +/- 10 degree
    Overvoltage CategoryIII
    Power Dissipation In Wfan 452.0 W 380 V 4 kHz
    Power Loss Static Current Independent452.0 W
    Product Or Component Typevariable speed drive
    Prospective Line Isc22 kA
    Regulation Loopadjustable PID regulator
    Relative Symmetric Network Frequency Tolerance5 %
    Software Versionv5.9.4
    Supporting Protocol For Bacnetfalse
    Supporting Protocol For Devicenettrue
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbustrue
    Supporting Protocol For Profibustrue
    Supporting Protocol For Profinet Iotrue
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Synchronous Motor Control Profilevector control without sensor
    Transient Overtorque170-200 % of nominal motor torque
    Volume Of Cooling Air156.0 m3/h
    With Safety Function Safe Programmable Logicfalse
    Motor Power Kw 10 N Motor Power Kw15.0 kW
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 15 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 380V to 500V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime, In Kwh21286.8
    Energy Model - Installation [A5]Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Height Nominal330 mm
    Emc Limit Value (Complied)true
    Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)3.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highwayfalse
    Supporting Protocol For Interbus-safetyfalse
    With Safety Function Safe Brake Management (Sbc/Sbt)false
    With Safety Function Safe Operating Stop (Sos)false
    With Safety Function Safe Speed Monitor (Ssm)false
    With Safety Function Safe Torque Off (Sto)true
    With Safety Function Safely Limited Speed (Sls)true
    Nbr. Of Units In Pkg.1
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]108.17
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Total Life Cycle12977.4596
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Distribution [A4]1.0416
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]12849
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-8.5738
    Climate Change - Total ( Kg Co2 Eq.) Distribution [A4]1.0416
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]12849
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-8.6589
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle238860.354
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]14.511
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]236400
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-167.66
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]13.229
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]2826.4
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]166.33
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-161.17
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]2435.2
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-3.8654
    Materials For Recycling (Kg) Installation [A5]1.0651
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]1.1348
    Net Use Of Fresh Water (M3) End Of Life [C1-c4]36.942
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]6.3047
    Non-hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.7626
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Manufacturing [A1-a3]0.4878
    Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]38.322
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]96.164
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]82.267
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle257131.492
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]14.531
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]254620
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-175.56
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]1.4476
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]6.2632
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle82.2623
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.0047
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2056.8
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]20.173
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]286.57
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle7.9959
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-16.648
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]1.4476
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]6.2632
    Water Use (M3 Eq) Manufacturing [A1-a3]47.02
    Water Use (M3 Eq) Operational Energy Use [B6]1408
    Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-4.0219

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating, 50-60 °C with derating factor
    Ambient Air Transport Temperature
    -25-70 °C, -25-70 °C
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2311022EN
    Eu Rohs Directive
    Compliant By Exemption
    Nema Degree Of Protection
    NEMA 1
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2311022EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint12978.835700000001
    Environmental DisclosureENVPEP2311022EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2023-06-09
    Psr VersionNo PSR

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Machine ATV320
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
    Relay Output Type
    configurable relay logic R1A 1 NO 100000 cycles, configurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
    Discrete Output Number
    3
    Maximum Output Voltage
    500 V
    Nominal Output Power
    15.0 kW
    Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
    Analogue Output Number1
    Maximum Output Frequency0.599 kHz
    Nominal Output Current33.0 A

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated

    Input Attributes

    Analogue Input Type
    AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
    Discrete Input Type
    STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
    Discrete Input Number
    7
    Discrete Input Logicpositive logic (source), negative logic (sink)
    Analogue Input Number3
    Number Of Input Phases3
    Loading video…

    Accessories

    Loading carousel layout...

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$2858.57/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
