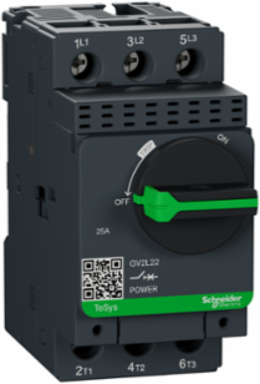

Schneider Electric GV2L22 TeSys Deca Motor Circuit Breaker 3P 25A Magnetic, Rotary Handle

MPN: GV2L22
PPN: SCH-GV2L22

$475.29

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD22 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United Kingdom, Mexico, Thailand

Depth	97 mm

Physical Attributes

Color	dark grey

Complementary Attributes

Rated Current	25 A
Maximum Operating Rate	40 cyc/h

Line Rated Current	25 A
Rated Duty	uninterrupted IEC 60947-4-1

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Durability	100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
Motor Power Kw	9-9 kW 400/415 V AC 50/60 Hz, 11-11 kW 400/415 V AC 50/60 Hz, 11-11 kW 500 V AC 50/60 Hz, 15-15 kW 500 V AC 50/60 Hz18.5-18.5 kW 690 V AC 50/60 Hz
Range Of Product	TeSys GV2, TeSys Deca
Rated Current 1	25 A
[Ics] Rated Service Short-circuit Breaking Capacity	100 % 230/240 V AC 50/60 Hz IEC 60947-250 % 400/415 V AC 50/60 Hz IEC 60947-275 % 440 V AC 50/60 Hz IEC 60947-2, 75 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The Distribution Phase [A4]	0.09826502911277538, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.03918244673885468
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	29 kg CO2 eq., 28.68028521732126
Local Publishable Date	2026-07-28
Stocking Flag	N
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2211002
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2538
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	GV2L
Device Application	motor protection
Energy Efficiency Optimized	False
Magnetic Tripping Current	388.3-388.3 A
Mechanical Robustness	shocks 30 Gn for 11 msvibrations 5 Gn, 5...150 Hz
Network Type	AC
Power Dissipation Per Pole	1.8 W
Product Name	TeSys GV2
Range	TeSys Deca
Software Version	v6.2.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	32 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %	51
Width Nominal	45 mm
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-2
Package Weight(Lbs)	330.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Fixing Mode	35 mm symmetrical DIN rail clipped, panel screwed with 2 x M4 screws)
Mounting Position	horizontal, vertical
Utilisation Category	category A IEC 60947-2AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
Certificate Agency	CCC, UL, CSA, EAC, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA, IECEE CB Scheme
Connections - Terminals	power circuit: screw clamp terminal 2 cable(s) 1-6 mm² - solid, power circuit: screw clamp terminal 2 cable(s) 1.5-6 mm² - flexible without cable end, power circuit: screw clamp terminal 2 cable(s) 1-4 mm² - flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.582536723313944, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 2.1119764492809097
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	3
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	rotary handle
Device Short Name	GV2L
Fire Resistance	960 °C IEC 60695-2-11
Mechanical Durability	100000 cycles
Network Frequency	50/60 Hz IEC 60947-2
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	motor circuit breaker
Returnability	Yes
Suitability For Isolation	yes IEC 60947-1
Tightening Torque	1.7 N.m screw clamp terminal
Trip Unit Technology	magnetic
Pep Code	ENVPEP2211002EN
Pep Verification Date	2026-04-17
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	89 mm
[Ith] Conventional Free Air Thermal Current	25 A IEC 60947-2
[Ui] Rated Insulation Voltage	690 V AC 50/60 Hz IEC 60947-2
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	-20-60 °C-20-60 °C
Climatic Withstand	IACS E10
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2211002EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	31.512245865767742
Circularity Profile	ENVEOLI2211002
Environmental Disclosure	ENVPEP2211002EN
Ip Degree Of Protection	IP20 IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-04-17
Psr Version	PSR-0005-ed3-2023 06 06
