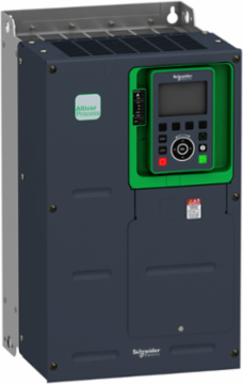

Schneider Electric ATV630D11Y6 Altivar Process Variable Speed Drive, 11kW, 15hp, 500-690V, IP00

  • MPN: ATV630D11Y6
  • PPN: SCH-ATV630D11Y6
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3618.48

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Altivar Process Variable Speed Drive, 11kW, 15hp, 500-690V, IP00

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, India, United States

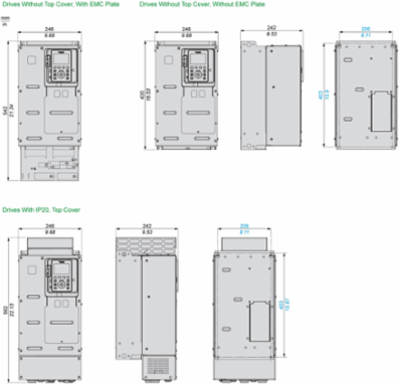

    Depth242 mm

    Communications & Management Attributes

    Communication Port Protocol
    Ethernet, Modbus serial, Modbus TCP

    Complementary Attributes

    Maximum Horse Power Rating
    10 hp 690 V heavy duty10 hp 500 V normal duty, 7.5 hp 500 V heavy duty, 15 hp 690 V normal duty
    Maximum Thdi
    <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12
    Brake Chopper Integrated
    false
    Maximum Input Current Per Phase
    14.7 A
    Maximum Output Voltage
    690.0 V
    Maximum Switching Currentrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
    Maximum Transient Current14.9 A 60 s normal duty), 14.3 A 60 s heavy duty)
    Maximum Associated Fuse Rating25.0 A
    Maximum Output Frequency500 kHz
    Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Asynchronous Motor Control Profile
    constant torque standard, optimized torque mode, variable torque standard
    Electrical Connection
    control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16, motor screw terminal 4...10 mm² AWG 12...AWG 8, line side screw terminal 4...10 mm² AWG 12...AWG 8
    Frequency Resolution
    display unit 0.1 Hz, analog input 0.012/50 Hz
    Line Current
    13.6 A 500 V normal duty), 14.7 A 690 V normal duty), 10.4 A 500 V heavy duty), 10.5 A 690 V heavy duty)
    Local Signalling
    3 LEDs for local diagnostic, 3 LEDs (dual colour) for embedded communication status, 4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage
    Motor Slip Compensation
    adjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
    Option Card
    slot A communication module, Profibus DP V1, slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IP, slot A communication module, CANopen daisy chain RJ45, slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminals, slot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink
    Power Dissipation In W
    natural convection 98 W 500 V 4 kHz, forced convection 198 W 500 V 4 kHz
    Protection Type
    safe torque off drive, motor phase break drivethermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Supply
    external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
    Synchronous Motor Control Profile
    permanent magnet motor, synchronous reluctance motor
    Vibration Resistance
    1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
    [Ue] Rated Operational Voltage
    690 V 7.5 kW 10 hp heavy duty500 V 7.5 kW 10 hp normal duty, 500 V 5.5 kW 7.5 hp heavy duty, 690 V 11 kW 15 hp normal duty
    Environmental Class (During Operation)
    class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)
    class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    40.41193315490592, 40 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    239 kg CO2 eq., 239.36017519122294
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    2
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    4 Quadrant Operation Possible
    false
    Base Load Current At High Overload
    9.5 A
    Braking To Standstill
    by DC injection
    Computer Port
    true
    Design Of Frequency Changer
    U converter
    Emc Filter
    integrated 25 m IEC 61800-3 category C3
    Exchange Mode
    half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Isolation
    between power and control terminals
    Maximum Associated Fuse Rating
    25.0 A
    Method Of Access
    slave Modbus TCP
    Network Frequency
    50-60 Hz
    Number Of Addresses
    1-247 Modbus serial
    Number Of Hw Interfaces Serial Rs485
    1
    Operating Element Present
    true
    Optical Interface Present
    false
    Phase
    3 phase
    Power Loss Static Current Independent
    41.0 W
    Product Or Component Type
    variable speed drive
    Prospective Line Isc
    70 kA
    Range Of Product

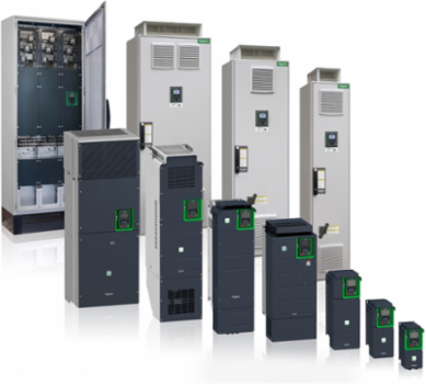

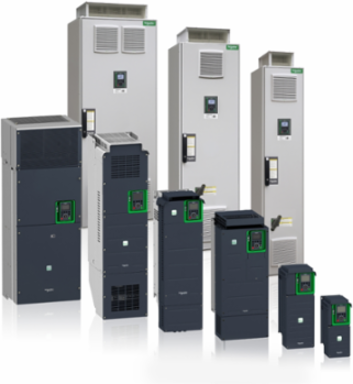

    Altivar Process ATV600
    Regulation Loop
    adjustable PID regulator
    Relative Symmetric Network Frequency Tolerance
    5 %
    Safety Function
    STO (safe torque off) SIL 3
    Software Version
    v6.1
    Supporting Protocol For Asi
    false
    Supporting Protocol For Can
    true
    Supporting Protocol For Devicenet Safety
    false
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    false
    Supporting Protocol For Profinet Cba
    true
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Sustainable Packaging
    No
    Transmission Frame
    RTU
    Type Of Polarization
    no impedance
    Volume Of Cooling Air
    330 m3/h
    With Safety Function Safe Programmable Logic
    false
    Pep Code
    ENVPEP1704001EN
    Pep Verification Date
    2024-11-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    India, IN
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential, In %
    84
    Width Nominal
    246 mm
    Maximum Acceleration Under Shock Impact (During Operation)
    150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)
    1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)
    1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)
    class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Work
    false
    Supporting Protocol For Ethernet/Ip
    true
    Supporting Protocol For Tcp/Ip
    true
    With Safety Function Safe Direction (Sdi)
    false
    With Safety Function Safe Position (Sp)
    false
    With Safety Function Safe Stop 1 (Ss1)
    false
    With Safety Function Safely Limited Position (Slp)
    false
    With Sft Fct Safe Stop 2 (Ss2)
    false
    Package Weight(Lbs)
    21.000 kg
    Warranty (In Months)
    18
    Persona Type IdsEU, OM, OM8, SI
    Apparent Power17.6 kVA 690 V normal duty), 12.5 kVA 690 V heavy duty)
    Connector TypeRJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output
    Motor Power Kw7.5 kW 690 V heavy duty)7.5 kW 500 V normal duty), 5.5 kW 500 V heavy duty), 11 kW 690 V normal duty)
    Noise Level52 dB 86/188/EEC, 58 dB
    Permissible Temporary Current Boost1.1 x In 60 s normal duty), 1.5 x In 60 s heavy duty)
    Product Destinationasynchronous motors, synchronous motors
    Sampling Duration2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output
    Switching Frequency2...8 kHz adjustable, 4...8 kHz with derating factor
    Transmission Rate10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
    Certificate AgencyCSA, UL, TÃœV
    [Us] Rated Supply Voltage500...690 V, 500...690 V - 15...10 %
    Environmental Class (During Storage)class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]4.287068889972338, 4 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]7 kg CO2 eq., 7.423492840918801
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]4 438 kg CO2 eq., 4437.775834780928
    Local Publishable Date2026-03-26
    Stocking FlagN
    Device TypeVariable speed drive - VSD Compacts
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1704001EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1923
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier2
    Function OptionAdvanced
    Market SegmentationIndustrial
    1 Phase Low Current Possiblefalse
    Application In Domestic And Commercial Area Permittedfalse
    Base Load Current At Low Overload13.5 A
    Capacity Of Dc Link800.0 µF
    Data Format8 bits, configurable odd, even or no parity
    Device Short NameATV630
    Enclosure Mountingwall mounted
    Housing Materialsheet steel
    MarkingCE
    Maximum Input Current Per Phase14.7 A
    Mounting Modewall mount
    Nominal Switching Frequency4 kHz
    Number Of Hw Interfaces Industrial Ethernet1
    Number Of Output Phases3
    Operating Positionvertical +/- 10 degree
    Overvoltage CategoryIII
    Power Loss Per Device Current Dependent277.0 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationprocess and utilities
    Quantity Per Set1
    Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance10 %
    ReturnabilityYes
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Supply Frequency50...60 Hz - 5...5 %
    Supporting Protocol For Bacnetfalse
    Supporting Protocol For Devicenetfalse
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbustrue
    Supporting Protocol For Profibustrue
    Supporting Protocol For Profinet Iotrue
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Total Lifecycle Carbon Footprint4 729 kg CO2 eq.
    Type Of Coolingforced convection
    UpdatabilityUpgradeable through digital modules
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permittedtrue
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 22 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 600V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime, In Kwh10827.36
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Height Nominal420 mm
    Emc Limit Value (Complied)true
    Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highwayfalse
    Supporting Protocol For Interbus-safetyfalse
    With Safety Function Safe Brake Management (Sbc/Sbt)false
    With Safety Function Safe Operating Stop (Sos)false
    With Safety Function Safe Speed Monitor (Ssm)false
    With Safety Function Safe Torque Off (Sto)true
    With Safety Function Safely Limited Speed (Sls)false
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating), 50-60 °C (with derating factor)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1704001EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1704001EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP20 with kit VW3A9705)IEC 60529, IP21, IP00IEC 61800-5-1, IP00IEC 60529, IP20 with kit VW3A9705)IEC 61800-5-1
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint4729.2585048579485
    Environmental DisclosureENVPEP1704001EN
    Nema Degree Of ProtectionNEMA 1
    Packaging Without Single Use PlasticNo
    Relative Humidity5-95 % without condensation IEC 60068-2-3
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV600
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 10 bits, software-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
    Discrete Output Type
    relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
    Relay Output Type
    configurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles
    Discrete Output Number
    0
    Maximum Output Voltage
    690.0 V
    Nominal Output Power
    11.0 kW
    Speed Drive Output Frequency
    0.1-500 Hz
    Continuous Output Current13.5 A 4 kHz normal duty, 9.5 A 4 kHz heavy duty
    Output Voltage<= power supply voltage, <= power supply voltage
    Analogue Output Number2
    Maximum Output Frequency500 kHz
    Nominal Output Current13.5 A
    Relay Output Number3

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated 25 m IEC 61800-3 category C3

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
    Input Compatibility
    DI1...DI6 discrete input level 1 PLC IEC 61131-2, DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Number
    8
    Number Of Input Phases
    3
    Discrete Input Logicpositive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
    Analogue Input Number3
    Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

    Batteries & Runtime Attributes

    Removable Battery
    Yes
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$3618.48/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
