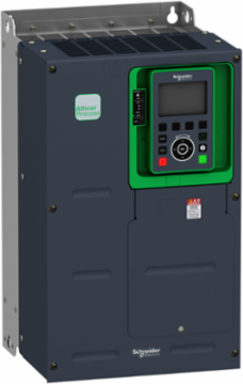

Schneider Electric ATV630U22Y6 Variable Speed Drive, 2.2kW, 3hp, 500-690V, IP00, EMC Filter
Schneider Electric ATV630U22Y6 Variable Speed Drive, 2.2kW, 3hp, 500-690V, IP00, EMC Filter
- MPN: ATV630U22Y6
- PPN: SCH-ATV630U22Y6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1731.46/ EA
Description
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 25m cable conforming to category C3. It works at a rated supply voltage from 500V to 690VAC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 2.2kW/3HP (500V supply voltage) for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 1.5kW/2HP (500V supply voltage) for applications requiring significant overload (up to 150%). Its dimensions are 246mm (width) x 242mm (depth) x 420mm (height). It weighs 22kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by CE, CSA and TUV. It meets UL 508C, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. Accessories (fan kit, graphic display terminal) and options (line chokes, dv/dt filter, sinus filter, EMC filter) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Specifications
Environment
- Product Certifications
- CSA || TÜV || UL
- Standards
- UL 508C || IEC 61800-3 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Noise Level
- 52 dB 86/188/EEC
- Operating Altitude
- <= 1000 m without derating || 1000...4800 m with current derating 1 % per 100 m
- Pollution Degree
- 2
- Ambient Air Temperature For Operation
- -15-50 °C without derating) || 50-60 °C with derating factor)
- Marking
- CE
- Noise Level
- 58 dB
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3
- Maximum Thdi
- <48 % with external line choke IEC 61000-3-12
Power Dissipation In Wnatural convection 73 W 500 V 4 kHz || forced convection 43 W 500 V 4 kHz
Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth
Vibration Resistance1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
Regulation Loopadjustable PID regulator
Overvoltage CategoryIII
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6
Volume Of Cooling Air330 m3/h
Pollution Degree2 IEC 61800-5-1
Ambient Air Temperature For Storage-40-70 °C
Operating Positionvertical +/- 10 degree
Complementary
- Discrete Input Logic
- positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V
- Discrete Output Type
- relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V DC 5000 mA
- Exchange Mode
- half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
- Net Weight
- 22 kg
- Frequency Resolution
- display unit 0.1 Hz || analog input 0.012/50 Hz
- Maximum Transient Current
- 3.4 A 60 s normal duty) || 3.6 A 60 s heavy duty)
- Motor Slip Compensation
- adjustable || automatic whatever the load || not available in permanent magnet motor law || can be suppressed
- Method Of Access
- slave Modbus TCP
- Local Signalling
- local diagnostic 3 LEDs || embedded communication status 3 LEDs dual colour) || communication module status 4 LEDs dual colour) || presence of voltage 1 LED red)
- Number Of Addresses
- 1-247 Modbus serial
- Transmission Rate
- 10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
- Analogue Input Type
- AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
- Electrical Connection
- control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 4...10 mm² AWG 12...AWG 8 || line side screw terminal 4...10 mm² AWG 12...AWG 8
- Height
- 420 mm
- Transmission Frame
- RTU
- Data Format
- 8 bits, configurable odd, even or no parity
- Connector Type
- RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
- Permissible Temporary Current Boost
- 1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
- Analogue Output Number
- 2
- Minimum Switching Current
- relay output R1, R2, R3 5 mA 24 V DC
- Enclosure Mounting
- wall mounted
- Output Voltage
- <= power supply voltage
- Braking To Standstill
- by DC injection
- Protection Type
- thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive
Analogue Output Typesoftware-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
Maximum Switching Currentrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Network Number Of Phases3 phases
Type Of Polarizationno impedance
Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles
Analogue Input Number3
Discrete Output Number0
Discrete Input Number8
Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
Width246 mm
Depth242 mm
Sampling Duration2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Maximum Output Frequency500 kHz
Acceleration And Deceleration RampsS, U or customized || linear adjustable separately from 0.01...9999 s
Relay Output Number3
Accuracy+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Input CompatibilityDI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2
Mounting Modewall mount
Physical InterfaceEthernet || 2-wire RS 485
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
Isolationbetween power and control terminals
Quantity Per Set1
Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Supplyexternal supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
Specifications
- Prospective Line Isc
- 70 kA
- Line Current
- 3.4 A 500 V normal duty) || 3.6 A 690 V normal duty) || 2.6 A 500 V heavy duty) || 2.6 A 690 V heavy duty)
- Asynchronous Motor Control Profile
- optimized torque mode || variable torque standard || constant torque standard
- Product Or Component Type
- variable speed drive
- Switching Frequency
- 2...8 kHz adjustable || 4...8 kHz with derating factor
- Product Specific Application
- process and utilities
- Motor Power Hp
- 2 hp 500 V normal duty || 1.5 hp 500 V heavy duty || 3 hp 690 V normal duty || 2 hp 690 V heavy duty
- Option Card
- slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A communication module, CANopen screw terminals || slot A/slot B digital and analog I/O extension module || slot A/slot B output relay extension module || slot A communication module, Ethernet IP/Modbus TCP/MD-Link || communication module, BACnet MS/TP || communication module, Ethernet Powerlink
- Speed Drive Output Frequency
- 0.1-500 Hz
- Motor Power Kw
- 1.5 kW 500 V normal duty) || 1.1 kW 500 V heavy duty) || 2.2 kW 690 V normal duty) || 1.5 kW 690 V heavy duty)
- [Us] Rated Supply Voltage
- 500...690 V - 15...10 %
- Type Of Cooling
- forced convection
- Nominal Switching Frequency
- 4 kHz
- Synchronous Motor Control Profile
- permanent magnet motor || synchronous reluctance motor
Product Destinationasynchronous motors || synchronous motors
Emc Filterintegrated 25 m IEC 61800-3 category C3
Variantstandard version
Apparent Power4.3 kVA 690 V normal duty) || 3.1 kVA 690 V heavy duty)
Communication Port ProtocolEthernet || Modbus serial || Modbus TCP
Safety FunctionSTO (safe torque off) SIL 3
Supply Frequency50...60 Hz - 5...5 %
Range Of ProductAltivar Process ATV600
Ip Degree Of ProtectionIP00IEC 61800-5-1 || IP00IEC 60529 || IP20 with kit VW3A9705)IEC 61800-5-1 || IP20 with kit VW3A9705)IEC 60529
[Us] Rated Supply Voltage500...690 V
Discrete Input Logic16 preset speeds
Continuous Output Current3.1 A 4 kHz normal duty || 2.4 A 4 kHz heavy duty
Device Short NameATV630
Offer Sustainability
- Mercury Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Upgradeability
- Upgraded components available
- Environmental Disclosure
- ENVPEP1704001EN
- Circularity Profile
- ENVEOLI1704001EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Rohs Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
