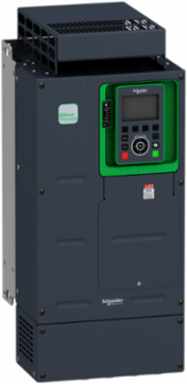

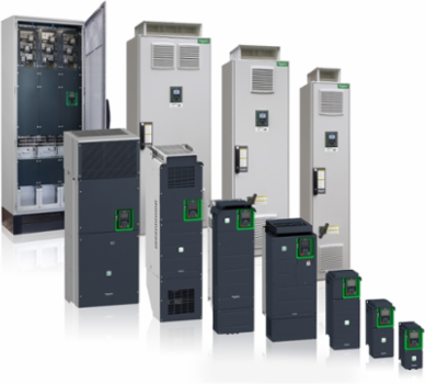

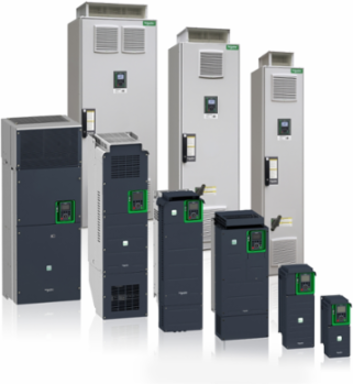

Variable Speed Drive, 25hp, 600V, IP20, Wall Mount
Variable Speed Drive, 25hp, 600V, IP20, Wall Mount
Variable Speed Drive, 25hp, 600V, IP20, Wall Mount
Variable Speed Drive, 25hp, 600V, IP20, Wall Mount
Schneider Electric

Schneider Electric ATV630D18S6 Variable Speed Drive, 25hp, 600V, IP20, Wall Mount

  • MPN: ATV630D18S6
  • PPN: SCH-ATV630D18S6
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $4700.83

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The Schneider Electric ATV630D18S6 Variable Speed Drive is engineered for high-performance automation and control applications, providing seamless regulation of motor speeds in a variety of settings. With a robust power output of 25 horsepower and operating at 600V, this drive is designed for efficient operation, contributing to energy savings and improved process control. Its wall-mount design allows for versatile installation in industrial environments, while the Green Premium designation underscores its commitment to sustainability and environmental responsibility. This drive stands out in the AC Drives category, making it an essential component for enhancing the reliability and efficiency of motor control systems.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France

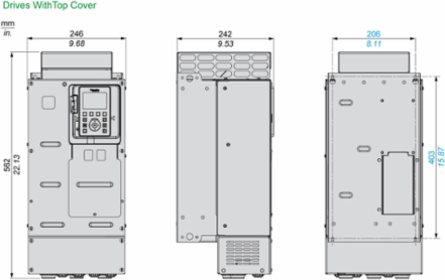

    Depth242 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus TCP, Modbus serial, Ethernet

    Complementary Attributes

    Maximum Thdi
    <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12
    Maximum Horse Power Rating
    25 hp 600 V normal duty20 hp 600 V heavy duty
    Maximum Output Frequency
    500 kHz
    Maximum Switching Current
    relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V ACrelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DCrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
    Minimum Switching Current
    relay output R1, R2, R3 5 mA 24 V DC
    Brake Chopper Integratedfalse
    Maximum Input Current Per Phase23.2 A
    Maximum Output Voltage600.0 V
    Maximum Transient Current29.7 A 60 s normal duty)33 A 60 s heavy duty)

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, SI
    Asynchronous Motor Control Profile
    constant torque standard, optimized torque mode, variable torque standard
    Electrical Connection
    control removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWGmotor screw terminal 10 mm² 8 AWG, line side screw terminal 10 mm² 8 AWG
    Insulation Resistance
    > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    Local Signalling
    3 LEDs for local diagnostic3 LEDs (dual colour) for embedded communication status4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage
    Noise Level
    52 dB 86/188/EEC, 58 dB
    Product Destination
    asynchronous motors, synchronous motors
    Sampling Duration
    2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output
    Synchronous Motor Control Profile
    permanent magnet motor, synchronous reluctance motor
    Certificate Agency
    TÜV, CSA, UL
    Environmental Class (During Storage)
    class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]
    4.481935657698354, 4 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    8 kg CO2 eq., 7.760924333687837
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    8 854 kg CO2 eq., 8854.009068422141
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Device Type
    Variable speed drive - VSD Compacts
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Applicability
    Finished product
    Weee Product Category
    4
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Dangerous Goods Code
    LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier
    2
    Function Option
    Advanced
    Market Segmentation
    Industrial
    1 Phase Low Current Possible
    false
    Apparent Power
    24.1 kVA 600 V normal duty)20.4 kVA 600 V heavy duty)
    Average Percentage Of Recycled Plastic Content
    2 %
    Base Load Current At Low Overload
    27.0 A
    Capacity Of Dc Link
    800.0 µF
    Data Format
    8 bits, configurable odd, even or no parity
    Device Short Name
    ATV630
    Enclosure Mounting
    wall mounted
    Frequency Resolution
    display unit 0.1 Hzanalog input 0.012/50 Hz
    Isolation
    between power and control terminals
    Marking
    CE
    Method Of Access
    slave Modbus TCP
    Network Frequency
    50-60 Hz
    Number Of Addresses
    1-247 Modbus serial
    Number Of Hw Interfaces Serial Rs485
    1
    Operating Element Present
    true
    Optical Interface Present
    false
    Permissible Temporary Current Boost
    1.1 x In 60 s normal duty)1.5 x In 60 s heavy duty)
    Power Dissipation In W
    natural convection 125 W 600 V 4 kHzforced convection 377 W 600 V 4 kHz
    Power Loss Static Current Independent
    37.0 W
    Product Or Component Type
    variable speed drive
    Prospective Line Isc
    70 kA
    Range Of Product
    Altivar Process ATV600
    Regulation Loop
    adjustable PID regulator
    Relative Symmetric Network Frequency Tolerance
    5 %
    Safety Function
    STO (safe torque off) SIL 3
    Software Version
    v6.1
    Supporting Protocol For Asi
    false
    Supporting Protocol For Can
    true
    Supporting Protocol For Devicenet Safety
    false
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    false
    Supporting Protocol For Profinet Cba
    true
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    9 159 kg CO2 eq.
    Type Of Cooling
    forced convection
    Updatability
    Upgradeable through digital modules
    Volume Of Cooling Air
    330 m3/h
    With Safety Function Safe Programmable Logic
    false
    Pep Code
    ENVPEP1704001EN
    Pep Verification Date
    2024-11-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Manufacturing [A1-a3]
    India, IN
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential In %
    84
    Width Nominal
    246 mm
    [Us] Rated Supply Voltage
    600 V600 V - 15...10 %
    Maximum Acceleration Under Shock Impact (During Operation)
    150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)
    1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)
    1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)
    class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Work
    false
    Supporting Protocol For Ethernet/Ip
    true
    Supporting Protocol For Tcp/Ip
    true
    With Safety Function Safe Direction (Sdi)
    false
    With Safety Function Safe Position (Sp)
    false
    With Safety Function Safe Stop 1 (Ss1)
    false
    With Safety Function Safely Limited Position (Slp)
    false
    With Sft Fct Safe Stop 2 (Ss2)
    false
    Package Weight(Lbs)
    23.0 kg
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Connector TypeRJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output
    Motor Slip Compensationadjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
    Option Cardslot A communication module, Profibus DP V1, slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IPslot A communication module, CANopen daisy chain RJ45slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminalsslot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink
    Protection Typesafe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Supplyexternal supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protectioninternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
    Transmission Rate10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
    Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]42.24883920740164, 42 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]250 kg CO2 eq., 250.24018315446034
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Average Percentage Of Asi Certified Metals100 %
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1704001EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1923
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsYES_SSI2Yes
    Tier Id2
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    4 Quadrant Operation Possiblefalse
    Application In Domestic And Commercial Area Permittedfalse
    Base Load Current At High Overload22.0 A
    Braking To Standstillby DC injection
    Computer Porttrue
    Design Of Frequency ChangerU converter
    Emc Filterwithout EMC filter
    Exchange Modehalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Housing Materialsheet steel
    Line Current23.2 A 600 V normal duty)19.6 A 600 V heavy duty)
    Maximum Input Current Per Phase23.2 A
    Mounting Modewall mount
    Nominal Switching Frequency4 kHz
    Number Of Hw Interfaces Industrial Ethernet1
    Number Of Output Phases3
    Operating Positionvertical +/- 10 degree
    Overvoltage CategoryIII
    Phase3 phase
    Power Loss Per Device Current Dependent468.0 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationprocess and utilities
    Quantity Per Set1
    Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance10 %
    ReturnabilityYes
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Supply Frequency50...60 Hz - 5...5 %
    Supporting Protocol For Bacnetfalse
    Supporting Protocol For Devicenetfalse
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbustrue
    Supporting Protocol For Profibustrue
    Supporting Protocol For Profinet Iotrue
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Switching Frequency2...8 kHz adjustable4...8 kHz with derating factor
    Transmission FrameRTU
    Type Of Polarizationno impedance
    Vibration Resistance1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-61 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permittedtrue
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 22 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 600V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh21602.16
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Height Nominal567 mm
    [Ue] Rated Operational Voltage600 V 25 hp normal duty600 V 20 hp head pump
    Emc Limit Value (Complied)false
    Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highwayfalse
    Supporting Protocol For Interbus-safetyfalse
    With Safety Function Safe Brake Management (Sbc/Sbt)false
    With Safety Function Safe Operating Stop (Sos)false
    With Safety Function Safe Speed Monitor (Ssm)false
    With Safety Function Safe Torque Off (Sto)true
    With Safety Function Safely Limited Speed (Sls)false
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8504404000

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1704001EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1704001EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP20IP20IEC 61800-5-1, IP20IEC 60529
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint9158.74095077539
    Environmental DisclosureENVPEP1704001EN
    Nema Degree Of ProtectionNEMA 1
    Packaging Without Single Use PlasticNo
    Relative Humidity5-95 % without condensation IEC 60068-2-3
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV600
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bitssoftware-configurable current AQ1, AQ2 0...20 mA 10 bitssoftware-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
    Output Voltage
    <= power supply voltage, <= power supply voltage
    Analogue Output Number
    2
    Discrete Output Number
    0
    Maximum Output Voltage
    600.0 V
    Nominal Output Power
    18.5 kW
    Speed Drive Output Frequency
    0.1-500 Hz
    Discrete Output Typerelay outputs R2A, R2C 30 V DC 5000 mArelay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mArelay outputs R1A, R1B, R1C 30 V DC 3000 mArelay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
    Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles
    Continuous Output Current27 A 4 kHz normal duty22 A 4 kHz heavy duty
    Maximum Output Frequency500 kHz
    Nominal Output Current27.0 A
    Relay Output Number3

    Surge Protection And Filtering Attributes

    Emc Filter
    without EMC filter

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
    Input Compatibility
    DI1...DI6 discrete input level 1 PLC IEC 61131-2DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Number
    8
    Number Of Input Phases
    3
    Discrete Input Logicpositive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
    Analogue Input Number3
    Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

    Batteries & Runtime Attributes

    Removable Battery
    Yes
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$4700.83/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
