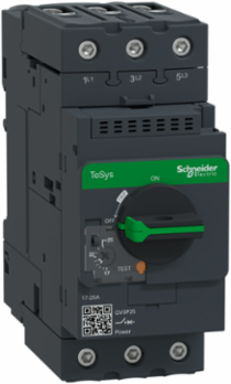

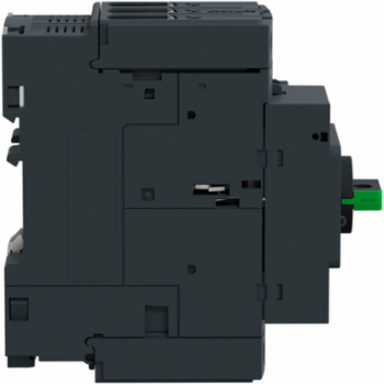

Schneider Electric GV3P25 Motor Circuit Breaker 3P 25A 690V Thermal-Magnetic Protection
- MPN: GV3P25
- PPN: SCH-GV3P25
CAD
$268.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-25A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Features
- The TeSys Deca GV3P25 features an adjustable thermal protection dial covering a 17A to 25A range, making it ideal for 11 kW at 400V motor applications. This allows control panel builders and industrial electricians to dial in the exact full-load current (FLA) of the motor, eliminating nuisance tripping while safeguarding machinery against prolonged overloads.
- Built for robust high-breaking capacity environments, this 3-pole breaker delivers a massive 100 kA short-circuit interrupting capacity (Icu) at 400/415V AC with magnetic tripping fixed at 14xIn (350A).
- The integrated rotary handle provides distinct, reliable visual indication of the breaker status (ON, OFF, TRIP) and is natively padlockable in the OFF position. This robust switch mechanical assembly is rated for 50,000 cycles, providing a clear, ergonomic manual disconnect that complies with standard industrial lock-out/tag-out (LOTO) safety protocols.
- Featuring a space-saving 55 mm frame width, the GV3P25 offers a compact footprint that easily clips onto standard 35 mm symmetrical DIN rails or mounts directly to backplates via screws. Its vertical or horizontal mounting flexibility allows you to optimize panel space and effortlessly drop it into existing control layouts as a direct replacement or a new install.
- his genuine Schneider Electric manual motor starter is fully multi-standard certified, meeting EN/IEC 60947-1/2/4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1 standards. This extensive regulatory compliance ensures your custom panels will easily pass local field inspections and satisfy strict corporate safety audits across North America and international markets.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 25 A
- Breaking Capacity
- 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
- Thermal Protection Adjustment Range
- 17-25 A IEC 60947-4-1
- Trip Unit Technology
- thermal-magnetic
- Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Mechanical Durability
- 50000 cycles
- Poles
- 3P
- Height
- 132 mm (5.20 in)
- Net Weight
- 0.96 kg (2.12 lb)
- Degree of Protection
- IP20 IEC 60529, IK09
- Ambient Storage Temperature
- -40 to 80 C (-40 to 176 F)
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Standards
- EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
- Rated Duty
- continuous IEC 60947-4-1
- Product Type
- motor circuit breaker
- Network Type
- AC
- Fixing Mode

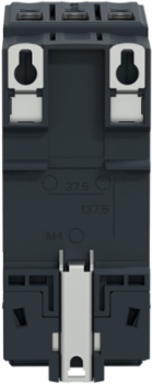

- 35 mm symmetrical DIN rail clipped, panel screwed with 3 x M4 screws
- Fire Resistance
- 960 B0C IEC 60695-2-11
- Mercury Free
- yes
Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
Magnetic Tripping Current350 A (14 x In)
Motor Power11 kW @ 400/415 V, 15 kW @ 500 V, 18.5 kW @ 690 V AC 50/60 Hz
Utilisation CategoryAC-3 IEC 60947-4-1
Impulse Withstand Voltage6 kV IEC 60947-2
Electrical Durability50000 cycles AC-3 415 V In

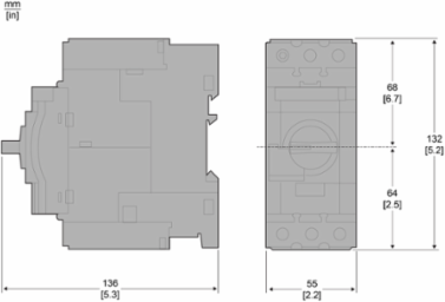

Width55 mm (2.17 in)
Depth136 mm (5.35 in)
Control Typerotary handle
Ambient Operating Temperature-20 to 60 C (-4 to 140 F)
Suitability For Isolationyes IEC 60947-1
Tightening Torque5 N.m (44.25 lbf.in) screw clamp terminal
CertificationsCCC, UL, CSA, EAC, ATEX, LROS, BV, ABS, DNV-GL, UKCA
Materialdark grey (color)
RangeTeSys Deca
Network Frequency50/60 Hz IEC 60947-4-1
Mechanical Robustnessshocks 15 Gn/11 ms open, 30 Gn/11 ms closed, vibrations 4 Gn, 5-300 Hz
Operating Altitude3000 m
