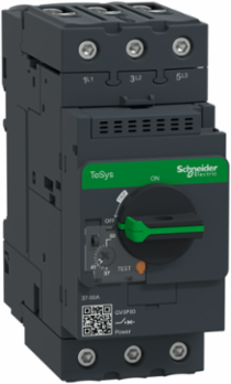

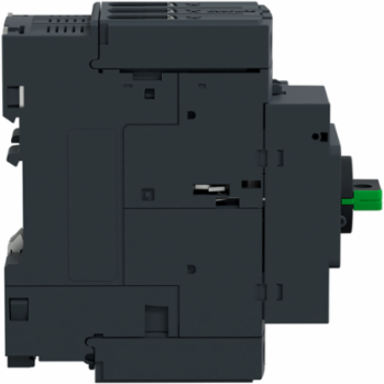

Schneider Electric GV3P50 TeSys Deca Motor Circuit Breaker, 3P, 37-50A, Thermal-Magnetic, 50kA
- MPN: GV3P50
- PPN: SCH-GV3P50
CAD
$354.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for 3-phase motor applications 22kW@400V. It provides a thermal-magnetic protection with a thermal setting range 37-50A, magnetic tripping at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Features
- Engineered specifically for equipment up to 22kW, this TeSys GV3 manual motor starter combines highly accurate thermal overload and immediate magnetic short-circuit protection (tripping at 700A). This precise dial-in adjustability prevents costly motor winding burnouts and phase-failure damage, maximizing the lifespan of your critical manufacturing infrastructure while minimizing unplanned production downtime.
- Featuring Schneider Electric’s patented EverLink BTR screw technology, this breaker guarantees a permanent, creep-compensating grip on bare cables even under severe industrial vibration and thermal cycling. This innovative terminal design eliminates the tedious need for periodic retightening and completely mitigates the risk of resistive thermal heating, preventing catastrophic electrical fires inside your motor control center.
- Designed with a highly visible, ergonomic rotary dial, this motor protection circuit breaker provides clear ON/OFF/TRIP status indication at a single glance. The handle is physically engineered to be secured with multiple padlocks in the OFF position, ensuring maintenance technicians can confidently isolate live 690V circuits and maintain full compliance with OSHA workplace safety directives during routine servicing.
- Measuring just 55mm wide, this space-saving MPCB mounts instantly onto standard 35mm or 75mm DIN rails, offering a significantly smaller footprint than traditional bulky fuse-and-contactor combinations. This modular design allows panel builders to efficiently scale mult-motor control configurations, drastically reducing structural enclosure costs and simplifying complex cable routing.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 50 A
- Breaking Capacity (Icu)
- 50 kA @ 400/415 V AC IEC 60947-2
- Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Utilisation Category
- AC-3 IEC 60947-4-1
- Poles
- 3P
- Trip Unit Technology
- thermal-magnetic
- Electrical Durability
- 50000 cycles AC-3 415 V In
- Power Dissipation Per Pole
- 8 W

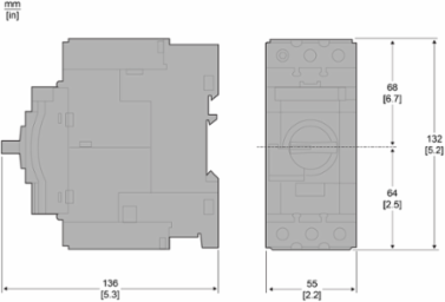

- Width
- 55 mm (2.17 in)
- Depth
- 136 mm (5.35 in)

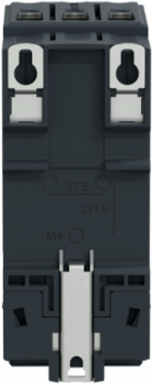

- Fixing Mode
- 35 mm symmetrical DIN rail clipped, panel screwed with 3 x M4 screws
- Operating Altitude
- 3000 m
- IP Degree of Protection
- IP20 IEC 60529
- Ambient Air Temperature for Operation
- -20 to 60 °C (-4 to 140 °F)
- Fire Resistance
- 960 °C IEC 60695-2-11
- Environmental Compliance
- RoHS Compliant with Exemptions, Mercury free, China RoHS
- Product Certifications
- CCC, UL, CSA, EAC, ATEX, Lloyds Register of Shipping, BV, ABS, DNV-GL, UKCA
- Suitability for Isolation
- Yes IEC 60947-1
Thermal Protection Adjustment Range37-50 A IEC 60947-4-1
Magnetic Tripping Current700 A
Rated Impulse Withstand Voltage6 kV IEC 60947-2
Network Frequency50/60 Hz IEC 60947-4-1
Motor Power22 kW @ 400/415 V AC 50/60 Hz
Device Applicationmotor protection
Mechanical Durability50000 cycles
Tightening Torque5 N·m screw clamp terminal
Height132 mm (5.20 in)
Net Weight0.96 kg (2.12 lb)
Control TypeRotary handle
Material & Constructiondark grey finish
IK Degree of ProtectionIK09 enclosure
Ambient Air Temperature for Storage-40 to 80 °C (-40 to 176 °F)
Rohs Exemption InformationYes
StandardsEN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Phase Failure SensitivityYes IEC 60947-4-1
Country of OriginFrance
