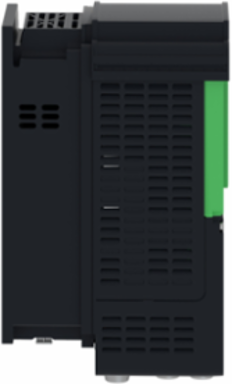

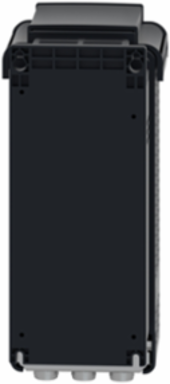

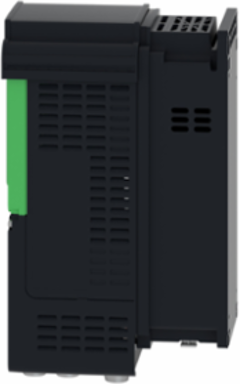

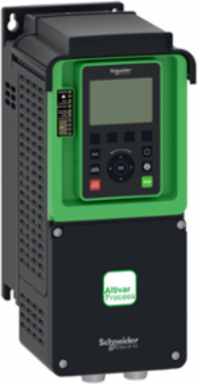

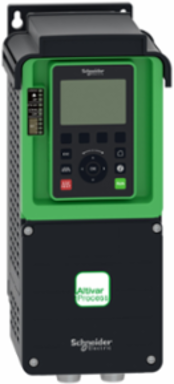

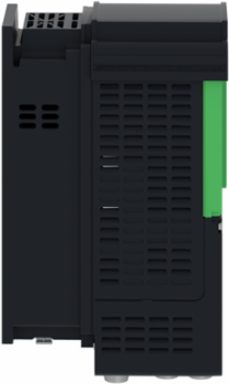

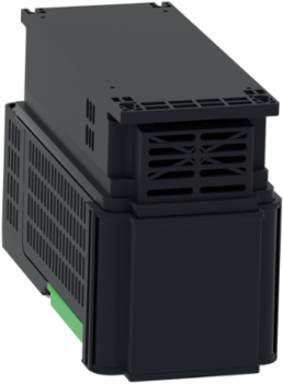

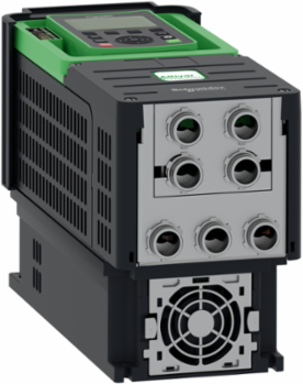

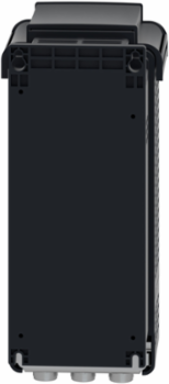

Schneider Electric ATV630U22M3 Variable Speed Drive, 2.2kW, 3hp, 200-240V, IP21, Wall Mount
- MPN: ATV630U22M3
- PPN: SCH-ATV630U22M3
CAD
$1330.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 2.2kW / 3hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 1.5kW / 2hp for applications requiring significant overload (up to 150%). It weighs 4.5kg and its dimensions are, 144mm wide, 350mm high, 203mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States

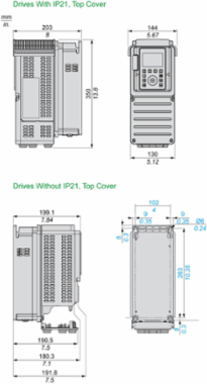

Depth203 mm
Communications & Management Attributes
- Communication Port Protocol
- Ethernet, Modbus serial, Modbus TCP
Complementary Attributes
- Maximum Thdi
- <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12
- Maximum Associated Fuse Rating
- 16.0 A
- Maximum Input Current Per Phase
- 8.4 A
- Maximum Output Voltage
- 240.0 V
- Maximum Transient Current
- 12 A 60 s heavy duty)12.3 A 60 s normal duty)
Brake Chopper Integratedfalse
Maximum Horse Power Rating3 hp normal duty2 hp heavy duty
Maximum Output Frequency500 kHz
Maximum Switching Currentrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V ACrelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DCrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Asynchronous Motor Control Profile
- constant torque standard, optimized torque mode, variable torque standard
- Discrete And Process Manufacturing
- food and beverage processing pumpfood and beverage processing fanwater and waste water electro submersible pump (ESP)water and waste water screw compressorwater and waste water compressor centrifugalwater and waste water fanbuilding - HVAC compressor centrifugalfood and beverage processing other applicationmining mineral and metal fan, mining mineral and metal pump, oil and gas fan, water and waste water other application, building - HVAC screw compressor, food and beverage processing atomization, oil and gas electro submersible pump (ESP), oil and gas water injection pump, oil and gas jet fuel pump, oil and gas compressor for refinery, water and waste water centrifuge pump, water and waste water positive displacement pump, water and waste water screw pump, water and waste water lobe compressor, water and waste water conveyor, water and waste water mixer
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
- Line Current
- 8.4 A 200 V normal duty)7.2 A 240 V normal duty)6 A 200 V heavy duty), 5.3 A 240 V heavy duty)
- Local Signalling
- 3 LEDs for local diagnostic3 LEDs (dual colour) for embedded communication status4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage
- Noise Level
- 86/188/EEC, 54.5 dB
- Product Destination
- asynchronous motors, synchronous motors
- Sampling Duration
- 2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output
- Synchronous Motor Control Profile
- permanent magnet motor, synchronous reluctance motor
- Certificate Agency
- ATEX INERIS, ATEX zone 2/22, CSA, DNV-GL, TÜV, UL
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
- Environmental Class (During Transport)
- class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 6.220317674678752, 6 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 83 kg CO2 eq., 82.6617561876918
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Average Percentage Of Asi Certified Metals
- 100 %
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1501005EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1923
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- YES_SSI2Yes
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- 4 Quadrant Operation Possible
- false
- Application In Domestic And Commercial Area Permitted
- false
- Base Load Current At High Overload
- 8.0 A
- Braking To Standstill
- by DC injection
- Computer Port
- true
- Design Of Frequency Changer
- U converter
- Emc Filter
- without EMC filter
- Exchange Mode
- half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
- Housing Material
- plastic
- Marking
- CE
- Maximum Input Current Per Phase
- 8.4 A
- Motor Power Kw
- 2.2 kW normal duty)1.5 kW heavy duty)
- Mounting Mode
- wall mount
- Nominal Switching Frequency
- 4 kHz
- Number Of Hw Interfaces Industrial Ethernet
- 1
- Number Of Output Phases
- 3
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- III
- Phase
- 3 phase
- Power Loss Per Device Current Dependent
- 116.0 W
- Power Range
- 2.2-3 kW 200-240 V 3 phase
- Product Or Component Type
- variable speed drive
- Prospective Line Isc
- 50 kA
- Range Of Product
- Altivar Process ATV600
- Regulation Loop
- adjustable PID regulator
- Relative Symmetric Network Frequency Tolerance
- 5 %
- Safety Function
- STO (safe torque off) SIL 3
- Software Version
- v6.2.5-6
- Supply Frequency
- 50...60 Hz - 5...5 %
- Supporting Protocol For Bacnet
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- true
- Supporting Protocol For Profibus
- true
- Supporting Protocol For Profinet Io
- true
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Switching Frequency
- 2...12 kHz adjustable4...12 kHz with derating factor
- Transmission Frame
- RTU
- Type Of Polarization
- no impedance
- Vibration Resistance
- 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-61 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Application In Industrial Area Permitted
- true
- Pep Code
- ENVPEP1501005EN
- Pep Verification Date
- 2025-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 350 mm
- [Us] Rated Supply Voltage
- 200...240 V200...240 V - 15...10 %
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 1.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Storage)
- class 1K5 according to EN 60721-3
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- true
- Supporting Protocol For Tcp/Ip
- true
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 5.928 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Connector TypeRJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial
Electrical Connectioncontrol removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWGmotor screw terminal 2.5...6 mm² 14 AWG...10 AWG, line side screw terminal 2.5...6 mm² 14 AWG...10 AWG
Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output
Motor Slip Compensationadjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
Option Cardslot A communication module, Profibus DP V1, slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IPslot A communication module, CANopen daisy chain RJ45slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminalsslot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink
Protection Typesafe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
Supplyexternal supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protectioninternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
Transmission Rate10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
[Ue] Rated Operational Voltage200...240 V 2.2 kW 3 hp normal duty, 200...240 V 1.5 kW 2 hp heavy duty
Environmental Class (During Storage)class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
Carbon Footprint Of The Distribution Phase [A4]1.0870677811789156, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]3 kg CO2 eq., 3.390891788642316
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 384 kg CO2 eq., 1383.7722264693145
Local Publishable Date2026-03-26
Stocking FlagN
Device TypeVariable speed drive - VSD Compacts
TraceabilityYes
Average Life Duration10 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
1 Phase Low Current Possiblefalse
Apparent Power3 kVA 240 V normal duty)2.2 kVA 240 V heavy duty)
Average Percentage Of Recycled Plastic Content3 %
Base Load Current At Low Overload11.2 A
Capacity Of Dc Link940.0 µF
Data Format8 bits, configurable odd, even or no parity
Device Short NameATV630
Enclosure Mountingwall mounted
Frequency Resolutiondisplay unit 0.1 Hzanalog input 0.012/50 Hz
Isolationbetween power and control terminals
Maximum Associated Fuse Rating16.0 A
Method Of Accessslave Modbus TCP
Motor Starter Typevariable speed drive
Network Frequency50-60 Hz
Number Of Addresses1-247 Modbus serial
Number Of Hw Interfaces Serial Rs4851
Operating Element Presenttrue
Optical Interface Presentfalse
Permissible Temporary Current Boost1.1 x In 60 s normal duty)1.5 x In 60 s heavy duty)
Power Dissipation In Wnatural convection 32 W 200 V 4 kHzforced convection 74 W 200 V 4 kHz
Power Loss Static Current Independent13.0 W
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationprocess and utilities
Quantity Per Set1
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
Relative Symmetric Mains Voltage Tolerance10 %
ReturnabilityYes
Shock Resistance15 gn 11 ms IEC 60068-2-27
Specific Applicationutility
Supporting Protocol For Asifalse
Supporting Protocol For Cantrue
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbatrue
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 477 kg CO2 eq.
Type Of Coolingforced convection
UpdatabilityUpgradeable through digital modules
Volume Of Cooling Air38 m3/h
With Safety Function Safe Programmable Logicfalse
Motor Power Kw 18 N Motor Power Kw1.5 kW
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 5,5 kW for heavy duty electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 6% uptime in full phase, 15% uptime in medium high phase, 35% uptime in medium low phase and 44% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: pump/fan/compressor.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %77
Width Nominal144 mm
Emc Limit Value (Complied)false
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)false
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504404000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor)
- Ambient Air Transport Temperature
- -40-70 °C, -40-70 °C
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1501005EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1501005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Ip Degree Of ProtectionIP21IP21IEC 61800-5-1, IP21IEC 60529
Take BackNo
China Rohs RegulationX
Carbon Footprint1477.1322599015061
Environmental DisclosureENVPEP1501005EN
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % without condensation IEC 60068-2-3
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Process ATV600
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Analogue Output Type
- software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bitssoftware-configurable current AQ1, AQ2 0...20 mA 10 bitssoftware-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
- Output Voltage
- <= power supply voltage, <= power supply voltage
- Analogue Output Number
- 2
- Discrete Output Number
- 0
- Maximum Output Voltage
- 240.0 V
- Nominal Output Power
- 2.2 kW
- Speed Drive Output Frequency
- 0.1-500 Hz
Discrete Output Typerelay outputs R2A, R2C 30 V DC 5000 mArelay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mArelay outputs R1A, R1B, R1C 30 V DC 3000 mArelay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles
Continuous Output Current11.2 A 4 kHz normal duty8 A 4 kHz heavy duty
Maximum Output Frequency500 kHz
Nominal Output Current11.2 A
Relay Output Number3
Surge Protection And Filtering Attributes
- Emc Filter
- without EMC filter
Input Attributes
- Analogue Input Type
- AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
- Input Compatibility
- DI1...DI6 discrete input level 1 PLC IEC 61131-2DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
- Discrete Input Number
- 8
- Number Of Input Phases
- 3
Discrete Input Logicpositive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
Analogue Input Number3
Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Batteries & Runtime Attributes
- Removable Battery
- Yes
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$1330.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$1330.88/ EA
Loading add to cart quantity...
