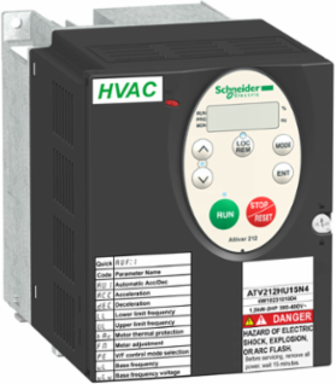

Altivar 212 Variable Speed Drive 2.2kW 3hp 480V 3-Phase IP21
Schneider Electric

Schneider Electric ATV212HU22N4 Altivar 212 Variable Speed Drive 2.2kW 3hp 480V 3-Phase IP21

  • MPN: ATV212HU22N4
  • PPN: SCH-ATV212HU22N4
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $724.23

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Altivar 212 Variable Speed Drive 2.2kW 3hp 480V 3-Phase IP21

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, United States
    Depth150 mm

    Communications & Management Attributes

    Communication Port Protocol
    BACnet, LonWorks, Modbus, METASYS N2, APOGEE FLN
    Communication Servicewrite single register (06), read device identification (43), time out setting from 0.1 to 100 s, read holding registers (03) 2 words maximum, write multiple registers (16) 2 words maximum, monitoring inhibitable

    Complementary Attributes

    Maximum Switching Current
    2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R), 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R), 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R)
    Maximum Transient Current
    5.6 A 60 s
    Maximum Horse Power Rating3 hp
    Minimum Switching Current3 mA 24 V DC configurable relay logic

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Connector Type
    1 open style, 1 RJ45
    Discrete And Process Manufacturing
    building - HVAC compressor for scroll, building - HVAC fan, building - HVAC pump
    Electromagnetic Compatibility
    electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
    Frequency Resolution
    display unit 0.1 Hz, analog input 0.024/50 Hz
    Line Current
    3.6 A 480 V, 4.6 A 380 V
    Motor Slip Compensation
    not available in voltage/frequency ratio motor control, adjustable, automatic whatever the load
    Protection Type
    overheating protection drive, thermal power stage drive, short-circuit between motor phases drive, input phase breaks drive, overcurrent between output phases and earth drive, overvoltages on the DC bus drive, break on the control circuit drive, against exceeding limit speed drive, line supply overvoltage and undervoltage drive, line supply undervoltage drive, against input phase loss drive, thermal protection motor, motor phase break motor, with PTC probes motor
    Sampling Duration
    2 ms +/- 0.5 ms F discrete, 2 ms +/- 0.5 ms R discrete, 2 ms +/- 0.5 ms RES discrete, 3.5 ms +/- 0.5 ms VIA analog, 22 ms +/- 0.5 ms VIB analog
    Supply
    internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection, internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
    Tightening Torque
    1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T), 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
    Type Of Cable
    without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR, without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC, with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
    Certificate Agency
    CSA, NOM 117, UL, C-tick
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Device Type
    Variable speed drive - VSD Compacts
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI110204EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1916
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Tier Id
    4
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Assembly Style
    with heat sink
    Data Format
    8 bits, 1 stop, odd even or no configurable parity
    Emc Filter
    Class C2 EMC filter integrated
    Isolation
    electrical between power and control
    Marking
    CE
    Motor Starter Type
    variable speed drive
    Noise Level
    51 dB 86/188/EEC
    Number Of Addresses
    1-247
    Option Card
    communication card LonWorks
    Power Dissipation In W
    103 W
    Product Destination
    asynchronous motors
    Product Specific Application
    pumps and fans in HVAC
    Range Of Product
    Altivar 212
    Returnability
    Yes
    Specific Application
    HVAC
    Supply Frequency
    50...60 Hz - 5...5 %
    Sustainable Packaging
    No
    Transmission Frame
    RTU
    Type Of Polarization
    no impedance
    Motor Power Kw 11 N Motor Power Kw
    2.2 kW
    Pep Code
    ENVPEP110204EN
    Width Nominal
    107 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type IdsEU, LC, OM, OM8, PB
    Asynchronous Motor Control Profilevoltage/frequency ratio, automatic IR compensation (U/f + automatic Uo), voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, voltage/frequency ratio, 2 points
    Dielectric Strength3535 V DC between earth and power terminals, 5092 V DC between control and power terminals
    Electrical ConnectionVIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14, L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
    Environmental Characteristicclasses 3C1 conforming to IEC 60721-3-3, classes 3S2 conforming to IEC 60721-3-3
    Insulation Resistance>= 1 mOhm 500 V DC for 1 minute, >= 1 mOhm 500 V DC for 1 minute>= 1 mOhm 500 V DC for 1 minute, >= 1 mOhm 500 V DC for 1 minute
    Linearity ErrorVIA +/- 0.15 % of maximum value input, VIB +/- 0.15 % of maximum value input, FM +/- 0.2 % output
    Power Range2.2-3 kW 380-440 V 3 phase, 2.2-3 kW 480-500 V 3 phase
    Response TimeFM 2 ms +/- 0.5 ms analog, FLA, FLC 7 ms +/- 0.5 ms discrete, FLB, FLC 7 ms +/- 0.5 ms discrete, RY, RC 7 ms +/- 0.5 ms discrete
    Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
    Switching Frequency6...16 kHz adjustable, 12...16 kHz with derating factor
    Torque Accuracy+/- 15 %, +/- 15 %
    Vibration Resistance1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier4
    Function OptionAdvanced
    Market SegmentationIndustrial
    Apparent Power3.9 kVA 380 V
    Braking To Standstillby DC injection
    Device Short NameATV212
    Functionalitymid
    Local Signalling1 LED (red) for DC bus energized
    Motor Power Kw2.2 kW
    Network Frequency47.5...63 Hz
    Nominal Switching Frequency12 kHz
    Operating Positionvertical +/- 10 degree
    Phase3 phase
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typevariable speed drive
    Prospective Line Isc5 kA
    Regulation Loopadjustable PI regulator
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Speed Range1-10
    Supply Voltage Limits323-528 V
    Transient Overtorque120-120 % of nominal motor torque +/- 10 % 60 s
    Transmission Rate9600 bps or 19200 bps
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Motor Power Hp 133 hp
    Height Nominal143 mm
    [Us] Rated Supply Voltage380...480 V - 15...10 %
    Package Weight(Lbs)1.962 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating), 40-50 °C (with derating factor)
    Ip Degree Of Protection
    IP21 IEC 60529, IP41 on upper part IEC 60529, IP21, IP20 on upper part without blanking plate on cover IEC 61800-5-1, IP20 on upper part without blanking plate on cover IEC 60529, IP21 IEC 61800-5-1, IP41 on upper part IEC 61800-5-1
    Relative Humidity
    5-95 % without condensation IEC 60068-2-3, 5-95 % without dripping water IEC 60068-2-3
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI110204EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP110204EN
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
    Take BackNo
    China Rohs RegulationX
    Air Flow35 m3/h
    Environmental DisclosureENVPEP110204EN
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar 212
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits, FM switch-configurable current 0...20 mA 970 Ohm 10 bits
    Discrete Output Type
    configurable relay logic FLA, FLC) NO - 100000 cycles, configurable relay logic FLB, FLC) NC - 100000 cycles, configurable relay logic RY, RC) NO - 100000 cycles
    Analogue Output Number
    1
    Speed Drive Output Frequency
    0.5-200 Hz
    Continuous Output Current5.1 A 380 V, 5.1 A 460 V
    Output Voltage<= power supply voltage, <= power supply voltage
    Discrete Output Number2

    Surge Protection And Filtering Attributes

    Emc Filter
    Class C2 EMC filter integrated

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Analogue Input Type
    VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits, VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits, VIB configurable PTC probe 0...6 probes 1500 Ohm, VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
    Discrete Input Type
    F programmable 24 V DC level 1 PLC 4700 Ohm, R programmable 24 V DC level 1 PLC 4700 Ohm, RES programmable 24 V DC level 1 PLC 4700 Ohm
    Discrete Input Logicpositive logic (source) F, R, RES), <= 5 V, >= 11 V, negative logic (sink) F, R, RES), >= 16 V, <= 10 V
    Analogue Input Number2
