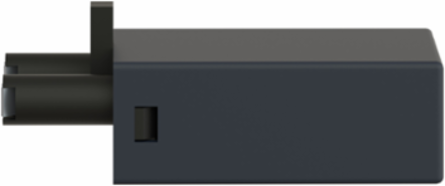

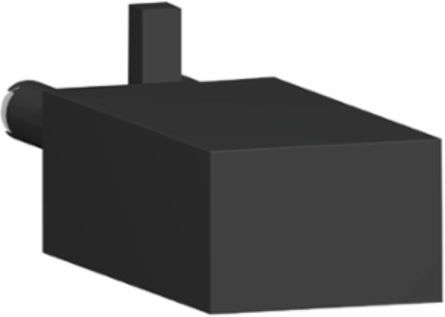

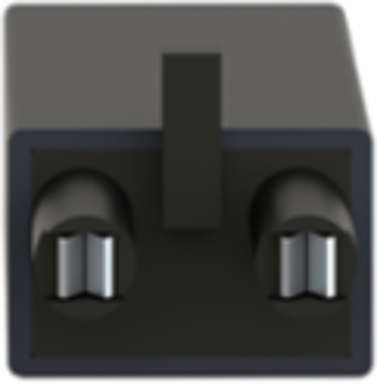

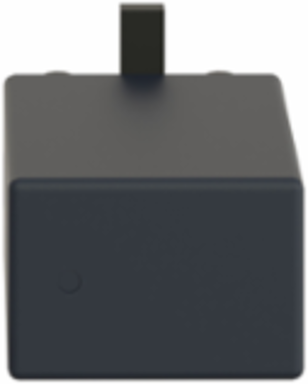

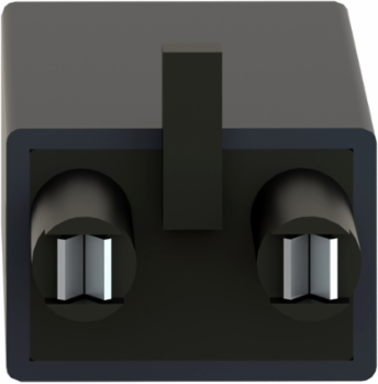

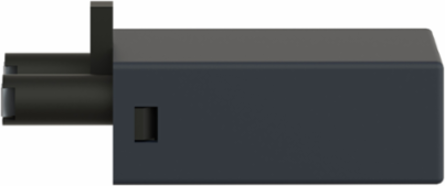

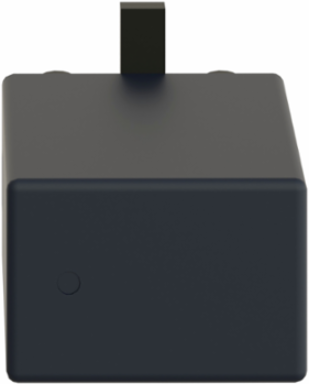

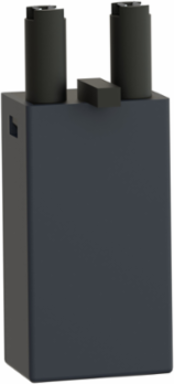

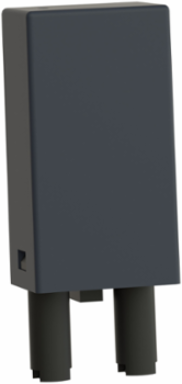

Schneider Electric RXM021FP Electromechanical Relay Protection Module, 110-240V AC/DC, with Varistor
- MPN: RXM021FP
- PPN: SCH-RXM021FP
CAD
$16.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RXG varistor has a rated voltage of 110V to 240V AC/DC. It has a light weight and it is compatible with socket RPZ with 1 and 2 changeover contacts. This protection module enables safety to your relay which helps to protect both people and system from electrical shock. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It can be matched with any relay socket from RPZ and RXZ ranges. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Features
- Engineered with a flexible, wide-range operational rating of 110V to 240V AC/DC, this module accommodates all standard mid-to-high voltage industrial control systems. This multi-voltage capability allows integration into standard industrial footprints, helping automation panel builders and procurement managers streamline inventory overhead by standardizing on a single component for multiple application designs.
- Designed for tool-free, plug-in integration, the unit slides contextually into standard Harmony RPZ (1 and 2 C/O) and RXZ (2, 3, and 4 C/O) electromechanical relay sockets. This seamless physical matching ensures a secure connection beneath the host RXM or RPM miniature "ice cube" relays without increasing the width of the DIN rail assembly or disrupting surrounding wire routing layouts.
- Featuring a ultra-compact, modular footprint measuring just 0.35 in times 0.47 in (0.9 cm times 1.2 cm), this functional pluggable module snaps directly into designated slots on compatible relay bases. This simple architecture enables rapid field field deployment, diagnostics, and system adaptations without needing to disconnect terminal field wiring, saving extensive maintenance hours during unexpected downtime.
- Fully RoHS, REACH, and WEEE compliant, this Schneider Electric protection accessory meets strict international environmental and chemical safety standards. Its eco-certified manufacturing footprint eliminates unauthorized heavy metals, ensuring your industrial control panels pass municipal compliance audits while promoting clean, efficient asset lifecycles
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, Singapore, United States |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Product Destination | RXM relay, RPM relay |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0003199751, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0000330329, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony Electromechanical Relays |
| Sale Per Indivisible Quantity | 20 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1705013EN |
| Pep Verification Date | 2017-06-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity from hydro power; AC; production mix, at power plant; 230V; RER |
| Energy Model - End Of Life [C1-c4] | Electricity from hydro power; AC; production mix, at power plant; 230V; RER |
| Accessory / Separate Part Category | protection accessories |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536308000 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| [Uc] Control Circuit Voltage | AC/DC, 110...240 V |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0003521807 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0 kg CO2 eq., 0.0339064222 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | RXM |
| Product Or Component Type | protection module |
| Returnability | Yes |
| Software Version | EIME v5.5 |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect during 20 years against transient overvoltages electrical equipements connected to electrical networks with a rated operational voltage up to 1000 V AC or 1500 V DC |
| Functional-unit Unit | unité (unit) |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity from hydro power; AC; production mix, at power plant; 230V; RER |
| Recyclability Potential In % | 55 |
| Accessory / Separate Part Designation | varistor |
| Package Weight(Lbs) | 2.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Product Compatibility | socket RPZ 1 C/O), socket RPZ 2 C/O), socket RXZ 2 C/O), socket RXZ 3 C/O), socket RXZ 4 C/O) |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1705013EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1705013EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.0346116109 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2017-06-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | protection module |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC000683 |
|---|
| ETIM 9 | EC000683 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
