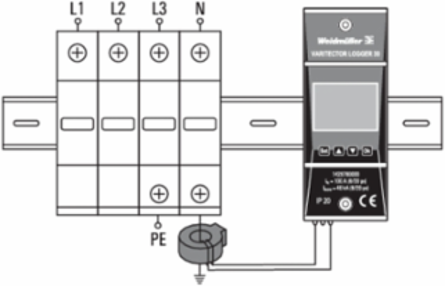

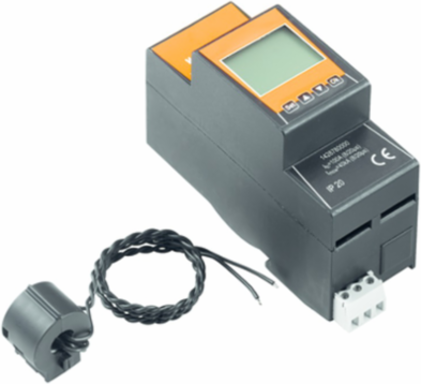

Weidmuller 1428780000 VARITECTOR LOGGER 30
- MPN: 1428780000
- PPN: WDM-1428780000
CAD
$683.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Lightning and surge protection, Pulse counter
Documentation & Downloads
Specifications
General Data
| Colour | black, orange |
|---|---|
| Protection degree | IP20 |
| UL 94 flammability rating | V-0 |
| Design | Installation housing; 2TE, Insta IP 20 |
|---|---|
| Rail | TS 35, TS 35 x 15, TS 35 x 7.5 |
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|
Rated Data Iec / En
| Approx. snap ferrite connection length | 500 mm |
|---|---|
| Display | LCD |
| Maximum discharge withstand current I | 50 kA |
| Pulse length | ≤ 1 sec |
| Standards | EN 62561-6, VDE 0185-561-6 |
| Battery | Typ CR123A 3V |
|---|---|
| Max. number of pulses | 999 |
| Pick-up current I | 50 A |
| Snap ferrite diameter | 15.5 mm |
| Typical battery service life | 4 years |
Dimensions And Weights
| Width | 36 mm |
|---|---|
| Height | 90 mm |
| Depth | 68 mm |
| Net weight | 165 g |
| Width (inches) | 1.417 inch |
|---|---|
| Height (inches) | 3.543 inch |
| Depth (inches) | 2.677 inch |
Classifications
| ETIM 6.0 | EC000490 |
|---|---|
| eClass 9.0 | 27-20-03-16 |
| ETIM 7.0 | EC000490 |
|---|---|
| eClass 9.1 | 27-13-92-90 |
Temperatures
| Humidity | 0...95 % (no condensation) |
|---|---|
| Operating temperature, min. | -20 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -20 °C...60 °C |
