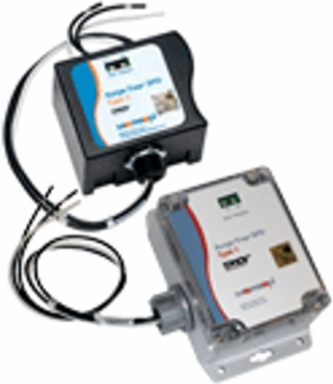

Mersen STT2240SPG Surge-Trap Type 1 SPD - 200 kA SCCR, NEMA 2 & 4X, 10-20 kA Discharge
- MPN: STT2240SPG
- UPC: 782001421489
- PPN: FER-STT2240SPG
CAD
$126.19
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen's Surge-Trap Type 1 SPD is a fail-safe and economical solution for applications that require a NEMA-style SPD. It is UL 1449 Third Edition approved and offers a wide range of voltage configurations to meet all needs in its class. The Surge-Trap Type 1 SPD features Mersen's patented TPMOV technology eliminating the need for additional overcurrent protection, thus providing substantial cost savings.
Features
- Compact design Easy to mount No additional overcurrent protection devices required 200kA Short circuit current rating (SCCR) UL 1449 Third Edition Type 1 Listed Nominal discharge current (In) of 20KA (10KA on select models) For indoor, NEMA 2 applications For outdoor, NEMA 4X applications Status LEDs Wire markers 2 year warranty
Specifications
Product Details
- SCCR
- 200 kA
- Applications
- AC distribution Power supplies Industrial Commercial Telecommunications Residential IT / Data centers
- Mounting
- Panel Panel / Screw
- UL Certification
- E210793 VZCA.E210793
- Body Material
- Polycarbonate
- Standards
- UL 1449 Third Edition Approved, File No E210793 Type 1 Listed for United States Type 2 Listed for Canada RoHS compliant ANSI/IEEE C62.41
- AC Voltage Range
- 120 - 480 VAC
- CE conformity
- Consult Technical Services
Nominal discharge current10 kA 20 kA
EnclosureNEMA 2 NEMA 4X
Operating Temp Range (Min/Max)-40 to +85 °C
ROHS CompliantConsult Technical Services
Connection Terminal TypePre-wired With 16 (0.4m) 12 AWG Conductors
Lead FreeConsult Technical Services
Number of Poles1 2 3
