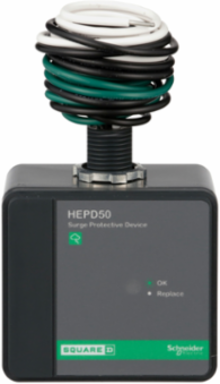

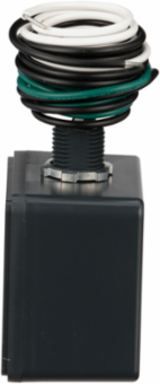

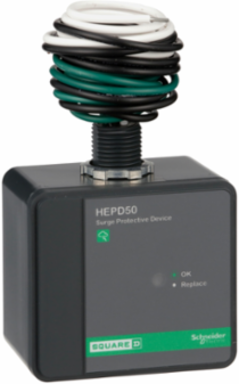

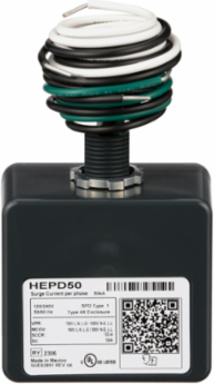

Square D HEPD50 Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1
- MPN: HEPD50
- UPC: 785901006626
- PPN: SCH-HEPD50
CAD
$211.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 50 kA of surge protection per phase. The surge protection device is in a NEMA 4X housing. The surge protection device is UL listed.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

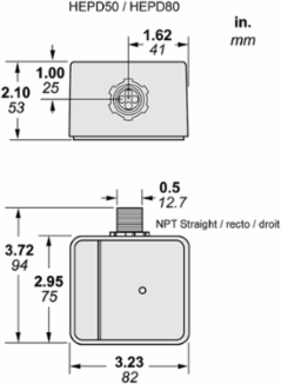

Depth2.10 in
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Certificate Agency
- UL 1449, cUL, UL 1449:ed. 4: type II
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.9036554863828715
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 3.0532955877821037
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 108.00
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2510004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Nominal Discharge Current
- 10 kA
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- surge protection device
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2510004EN
- Pep Verification Date
- 2025-10-27
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 9
- Width Nominal
- 3.72 in
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase [A4]0.19482770021330115, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.005004125560986175, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]236 kg CO2 eq., 235.6685386818315
Local Publishable Date2026-03-26
Future Imap103.95
Stocking FlagN
Device TypeSurge Protection and Power Conditioning - Surge Protection Devices
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Device Short NameHEPD
Local Signalling1 LED green normal operation
Phase1 phase
Product Destinationload center
Range Of ProductSquare D
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint240 kg CO2 eq.

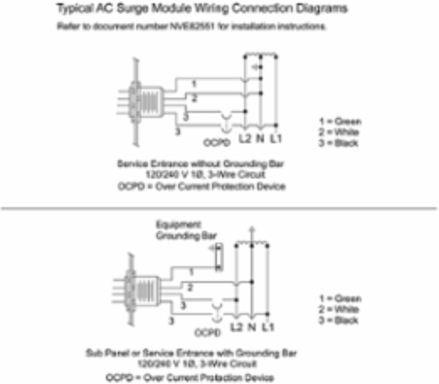

Wiring Configuration3-wire (isolated ground)
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh525.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal3.23 in
[Uc] Maximum Continuous Operating Voltage150 V
Short-circuit Protection25 kA
Package Weight(Lbs)408.233 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2510004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-10-27
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-35-65 °C, -35-65 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint239.82532158177077
Environmental DisclosureENVPEP2510004EN
Nema Degree Of ProtectionNEMA 4X
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2510004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Square D
Product Or Component Typesurge protection device
Surge Protection And Filtering Attributes
- Surge Current
- 50 kA per phase
Input Attributes
- Input Voltage
- 600 V L-N, 600 V L - G, 1000 V L - L, 900 V N - G
