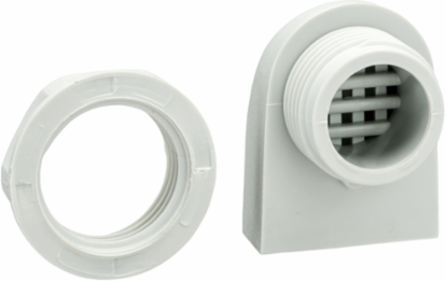

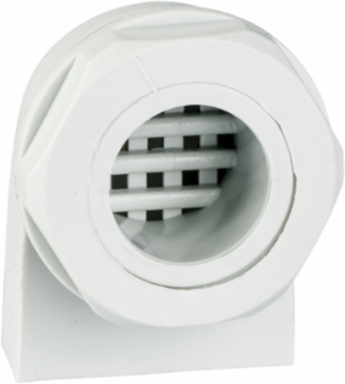

Schneider Electric NSYCAG19LP Airing grille cut-out diameter 19mm IP45
- MPN: NSYCAG19LP
- PPN: SCH-NSYCAG19LP
CAD
$2.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plastic ventilation louvre 23.5 x 30mm made from polyamide 6 for PanelSeT PLS, PanelSeT PLM and PanelSeT TBS enclosures. The kit is made of 2 plastic louvres. The external width is 23.5mm. Ingress protection rating (according to IEC 60529) is IP45. Fixing by screws. Mounting position is vertical. Cut-out dimensions is 19mm. Painted in grey (RAL 7035). Painted in grey (RAL 7035).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.013872694728386158, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0020643015562233718, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-04-13
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Composition
- 2 plastic louvre
- Fixing Mode
- by screws
- Mounting Position
- vertical
- Product Name
- ClimaSys CA
- Range
- ClimaSys
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; High voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 8
- Width Nominal
- external: 23.5 mm
- Accessory / Separate Part Destination
- ClimaSys ventilation system
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
- Customs Code
- 3926909989
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.012829314480239147
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0 kg CO2 eq., 0.039477835483354984
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialpolyamide 6
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeplastic ventilation louvre
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP2012014EN
Pep Verification Date2024-06-09
Psr VersionPSR-0008-ed3-EN-2023 10 19
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y17
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalexternal: 30 mm
Accessory / Separate Part Categorythermal management accessory
Cut-out Dimensions19 mm
Package Weight(Lbs)7.000 g
Take-backNo
Other Technical GuideCPTG001_EN
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2012014EN
- Ip Degree Of Protection
- IP45
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint0.06824414624820366
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2012014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- plastic ventilation louvre
ETIM
- ETIM 8
- EC000331
ETIM 9EC000331
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
