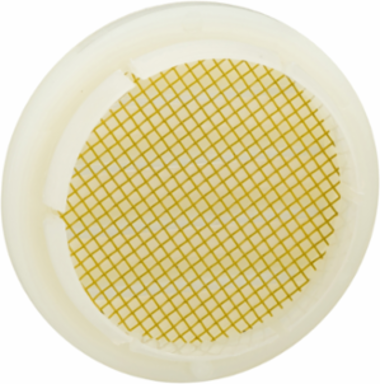

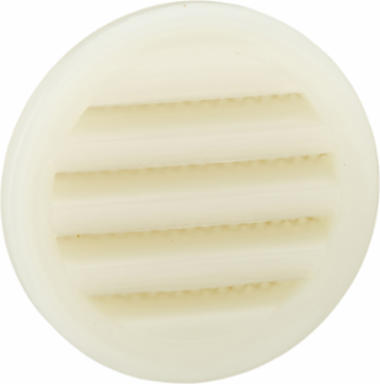

Schneider Electric NSYCAG45LP Airing grille cut-out diameter 45.5mm IP32
- MPN: NSYCAG45LP
- PPN: SCH-NSYCAG45LP
CAD
$26.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Thalassa PLS/PLM/TBS Airing grille cut-out. Diameter 45.5 mm cut-out. Thermal management accessory. Plastic ventilation louvre. Vertical mounting position. Clipped fixing mode. polyamide 6. White. IP22 Protection.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
Physical Attributes
| Color | White |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.04954533831566486, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0073725055579406135, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-13 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Composition | 2 plastic louvre |
| Fixing Mode | clipped |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | plastic ventilation louvre |
| Returnability | No |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2012014EN |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 17 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | external: 55.8 mm |
| Accessory / Separate Part Category | thermal management accessory |
| Cut-out Dimensions | 45.5 mm |
| Package Weight(Lbs) | 25.000 g |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | CPTG001_EN |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.04581898028656838 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.1 kg CO2 eq., 0.14099226958341066 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Material | polyamide 6 |
| Product Name | ClimaSys CA |
| Range | ClimaSys |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 0.2 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity Mix; High voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 8 |
| Width Nominal | external: 55.8 mm |
| Accessory / Separate Part Destination | ClimaSys ventilation system |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3926909989 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.2437290937435845 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2012014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2012014EN |
| Ip Degree Of Protection | IP22 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
General Attributes
| Product Or Component Type | plastic ventilation louvre |
|---|
ETIM
| ETIM 8 | EC000331 |
|---|
| ETIM 9 | EC000331 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
