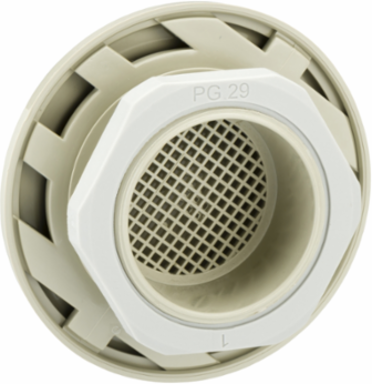

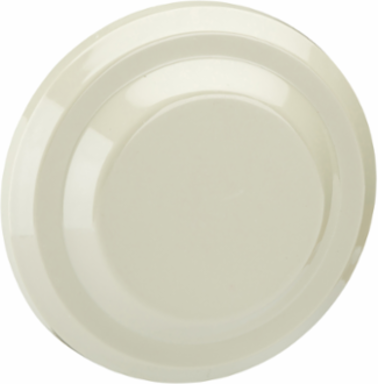

Schneider Electric NSYCAG38LP ClimaSys Airing Grille 38mm Cut-Out IP45 Plastic Louvre
- MPN: NSYCAG38LP
- PPN: SCH-NSYCAG38LP
CAD
$7.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Thalassa PLS/PLM/TBS Airing grille cut-out. Diameter 38mm cut-out. Thermal management accessory. Plastic ventilation louvre. Vertical mounting position. Fixing by screws. polyamide 6. Grey RAL 7032. IP45 Protection.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, France
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.11494518489234247, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.017104212894422224, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-04-13
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Composition
- 2 plastic louvre
- Fixing Mode
- by screws
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- plastic ventilation louvre
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2012014EN
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 17
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- external: 63 mm
- Accessory / Separate Part Category
- thermal management accessory
- Cut-out Dimensions
- 38 mm
- Package Weight(Lbs)
- 58.000 g
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.10630003426483865
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.3271020654335128
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
MaterialASA + PC
Product NameClimaSys CA
RangeClimaSys
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; High voltage; 2020; Europe, EU-27
Recyclability Potential In %8
Width Nominalexternal: 63 mm
Accessory / Separate Part DestinationClimaSys ventilation system
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Customs Code3926909989
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2012014EN
- Ip Degree Of Protection
- IP45
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint0.5654514974851161
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2012014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- plastic ventilation louvre
ETIM
- ETIM 8
- EC000331
ETIM 9EC000331
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
