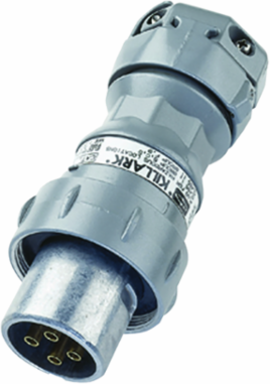

Killark VP6485 60A 3 Pole 4 Wire Pin & Sleeve Plug Assembly, 600 VAC, 8.81 Inch Length
- MPN: VP6485
- UPC: 783936834481
- PPN: HBL-VP6485
CAD
$563.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
60A 3 Pole 4 Wire Plug Assembly
Features
- Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
- Insulators have high mechanical and dielectric strength.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Includes suitability for Type P marine cable.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 3.68 in
- Voltage Rating
- 600 VAC;250 VDC
- Engineering Drawing 1 Display Text
- VP6034 / VP6485 Engineering Drawing
- Application
- Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
- Frequency Rating
- 50-400 Hz
- Style
- Style II
- Class Code
- D35
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D35D260
- Material
- Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936834481
Dimensions8.81 in x 3.68 in x 3.68 in
Length8.81 in
Width3.68 in
Amperage Rating60 A
Finish TypeBaked Powder Epoxy/Polyester Finish
Number Of Wires4
TypePin & Sleeve
Description - Invoice60A 3W4P PLUG ASSY-S37
Harmonization Code8536699902
MSDS FlagNo
Grommet Range0.65-1.50
SeriesVersaMate Series
BOX SIZE(in)
NAICS Code335931A104
