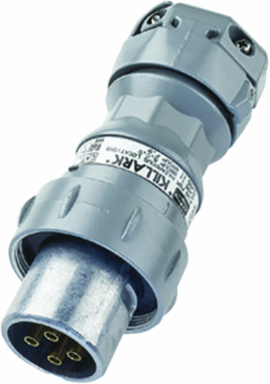

Killark VP6275 VersaMate Pin & Sleeve Plug, 60 Amp, 600 VAC, 3.68 Inch Width, 8.81 Inch Length
- MPN: VP6275
- UPC: 783936834399
- PPN: HBL-VP6275
CAD
$1062.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Features
- Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
- Insulators have high mechanical and dielectric strength.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Includes suitability for Type P marine cable.
Documentation & Downloads
Specifications
Key Specifications
- Application
- Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
- Grommet Range
- 0.65-1.50
- Series
- VersaMate
- Type
- Pin & Sleeve
- Height
- 3.68 in
- Width
- 3.68 in
- Frequency Rating
- 50-400 Hz
Finish TypeBaked Powder Epoxy/Polyester Finish
MaterialBody-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
StyleStyle I
UPC783936834399
Length8.81 in
Amperage Rating60 A
Number Of Wires2
