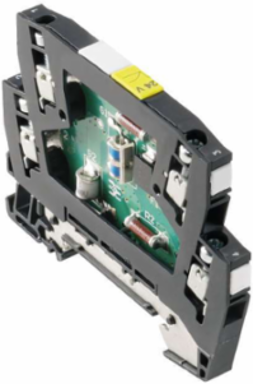

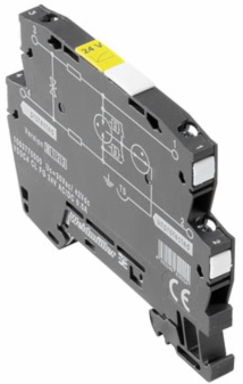

Weidmuller 1063770000 VSSC4 CL FG24VAC/DC0.5A
- MPN: 1063770000
- PPN: WDM-1063770000
CAD
$111.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surge protection for instrumentation and control, 24 V, 34 V, 500 mA, IEC 61643-21, HART-compatible
Documentation & Downloads
Specifications
Further Details Of Approvals
| GOST certificate | GOST-Zertifikat |
|---|
General Data
| Colour | black |
|---|---|
| Isolating function | No |
| Protection degree | IP20 |
| Segment | Measurement - Monitoring - Setting |
| Version | Surge protection for measurement and control |
| Design | Terminal |
|---|---|
| Optical function display | No |
| Rail | TS 35 |
| UL 94 flammability rating | V-0 |
Probability Of Failure
| λges | 29 |
|---|---|
| PFH in 1*10 | 1.95 |
| SIL PAPER | SIL Paper |
| MTTF | 3,936 Years |
|---|---|
| SFF | 93.28 % |
| SIL in compliance with IEC 61508 | 3 |
Approvals
| Approvals | CE, CSAEX, EAC, FUSAFETY, OEVE, UL |
|---|---|
| UL File Number Search | E311081 |
| ROHS | Conform |
|---|
Insulation Coordination Acc. To En 50178
| Pollution severity | 2 |
|---|
| Surge voltage category | III |
|---|
Rated Data Iec / En
| Dielectric strength at FG against PE | ≥ 500 V |
|---|---|
| Discharge current, max. (8/20 µs) | 10 kA |
| Insertion loss | 3.45 MHz |
| Lightning test current, I | 0.5 kA |
| Max. continuous voltage, Uc (DC) | 42 V |
| Overload - failure mode | Modus 2 |
| Pulse-reset capacity | ≤ 20 ms |
| Rated voltage (AC) | 24 V |
| Requirements category acc. to IEC 61643-21 | C2, C3, D1 |
| Standards | IEC 61643-21, HART-compatible |
| Surge current-carrying capacity C3 | 50 A 10/1000 μs |
| Voltage type | AC/DC |
| Discharge current I | 2.5 kA |
|---|---|
| Fuse | 0.5 A |
| Lightning test current I | 0.5 kA |
| Max. continuous voltage, Uc (AC) | 30 V |
| Number of poles | 1 |
| Protection level U | ≤ 1500 V |
| Rated current I | 500 mA |
| Rated voltage (DC) | 34 V |
| Signal transmission properties (-3 dB) | 3.4 MHz |
| Surge current-carrying capacity C2 | 2.5 kA 8/20 µs 5 kV 1.2/50 µs |
| Surge current-carrying capacity D1 | 0.5 kA 10/350 μs |
| Volume resistance | 1.8 Ω 10 % |
Dimensions And Weights
| Width | 6.2 mm |
|---|---|
| Height | 76 mm |
| Depth | 58.5 mm |
| Net weight | 27.4 g |
| Width (inches) | 0.244 inch |
|---|---|
| Height (inches) | 2.992 inch |
| Depth (inches) | 2.303 inch |
Csa Protection Data
| Gas group C | IIB |
|---|---|
| Gas groups A, B | IIC |
| Input voltage, max. U | 42 V |
| Internal inductance, max. L | 0 µH |
| Gas group D | IIA |
|---|---|
| Input current, max. I | 500 mA |
| Internal capacity, max. C | 1 nF |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 0.8 Nm |
| Clamping range, max. | 4 mm² |
| Wire cross-section, solid, max. | 6 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 4 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Tightening torque, min. | 0.5 Nm |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Wire cross-section, solid, min. | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.5 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
Rated Data Ul
| Certificate No. (UL) | E311081 |
|---|
| UL certificate | UL Zertifikat |
|---|
Tender Specification Sheets

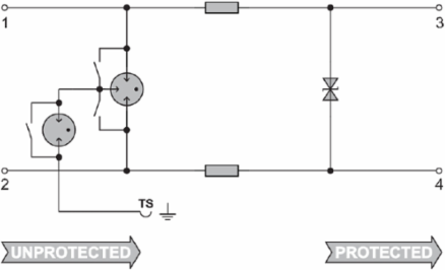

| Long specification | Surge protection in a one piece, 6.2 mm wide DIN rail module for a floating-ground driven signal circuit with 24 V DC, 2-wire technology. A current loop with max. 0.5 A can be protected here. When the terminal is fitted, there is a simultaneous sparkover gap created to the high-impedance earth between the mounting rail (earth) and the reference potential (ground) of the protective switch. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked. |
|---|
| Short specification | Surge protection in a one piece, 6.2 mm wide DIN rail module for a floating-ground driven signal circuit with 2-wire technology. Version: 24V DC |
|---|
Classifications
| ETIM 6.0 | EC000943 |
|---|---|
| eClass 9.0 | 27-13-08-07 |
| eClass 10.0 | 27-13-08-07 |
| ETIM 7.0 | EC000943 |
|---|---|
| eClass 9.1 | 27-13-08-07 |
| UNSPSC | 30-21-19-21 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Humidity | 5...96 % |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...70 °C |
Ratings Iecex/Atex/Cul
| cUL certificate | cUL Certificate |
|---|
