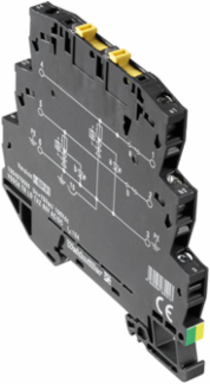

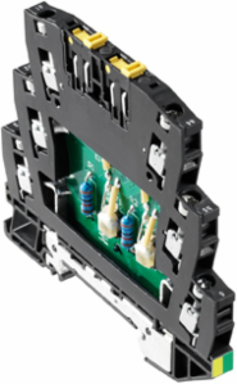

Weidmuller 1064950000 VSSC6 TRLDTAZ 24VAC/DC
- MPN: 1064950000
- PPN: WDM-1064950000
CAD
$75.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surge protection for instrumentation and control, 24 V, 34 V, 12 A, IEC 61643-21
Documentation & Downloads
Specifications
Further Details Of Approvals
- GOST certificate
- GOST-Zertifikat
General Data
- Colour
- black
- Isolating function
- Yes
- Protection degree
- IP20
- Segment
- Measurement - Monitoring - Setting
- UL 94 flammability rating
- V-0
DesignTerminal
Optical function displayYes
RailTS 35
Testing optionFunctional screw with test plug receptacle, connections 1, 2, 4, 5
VersionSurge protection for measurement and control
Probability Of Failure
- λges
- 43
- PFH in 1*10
- 0.9
- SIL PAPER
- SIL Paper
MTTF2,655 years
SFF97.91 %
SIL in compliance with IEC 615083
Approvals
- Approvals
- CE, CSAEX, EAC, FUSAFETY, OEVE, UL
- UL File Number Search
- E311081
ROHSConform
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
Surge voltage categoryIII
Rated Data Iec / En
- Capacitance
- 0.8 nF
- Discharge current, max. (8/20 µs)
- 0.4 kA
- Max. continuous voltage, Uc (DC)
- 42 V
- Overload - failure mode
- Mode 1
- Rated current I
- 12 A
- Rated voltage (DC)
- 34 V
- Standards
- IEC 61643-21
- Voltage type
- AC/DC
Discharge current I0,1 kA
Max. continuous voltage, Uc (AC)30 V
Number of poles1
Protection level U≤ 100 V
Rated voltage (AC)24 V
Requirements category acc. to IEC 61643-21C3
Surge current-carrying capacity C315 A
Volume resistance< 0.1 Ω
Dimensions And Weights
- Width
- 6.2 mm
- Height
- 88.5 mm
- Depth
- 81 mm
- Net weight
- 46 g
Width (inches)0.244 inch
Height (inches)3.484 inch
Depth (inches)3.189 inch
Csa Protection Data
- Gas group C
- IIB
- Gas groups A, B
- IIC
- Input voltage, max. U
- 42 V
- Internal inductance, max. L
- 0 µH
Gas group DIIA
Input current, max. I500 mA
Internal capacity, max. C2 nF
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.8 Nm
- Clamping range, max.
- 4 mm²
- Wire cross-section, solid, max.
- 6 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 4 mm²
- Connection cross-section, stranded, max.
- 4 mm²
Tightening torque, min.0.5 Nm
Clamping range, min.0.5 mm²
Wire cross-section, solid, min.0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.5 mm²
Connection cross-section, stranded, min.0.5 mm²
Rated Data Ul
- Certificate No. (UL)
- E311081
UL certificateUL Zertifikat
Tender Specification Sheets
- Long specification

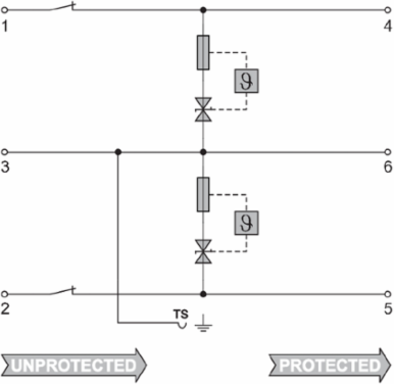

- Feed-through terminal, 6.2 mm wide with suppressor diodes between the two signal lines and the mounting rail potential, TS 35 contact base. Each signal path can be opened using an isolator. A signal with max. 12A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
Short specificationFeed-through terminal with suppressor diodes (TAZ) between two signal lines and mounting rail potential.Each signal path can be opened using an isolator. TS 35 contact base. Version: 24 V AC
Classifications
- ETIM 6.0
- EC000943
- eClass 9.0
- 27-13-08-07
- eClass 10.0
- 27-13-08-07
ETIM 7.0EC000943
eClass 9.127-13-08-07
UNSPSC30-21-18-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 5...96 %
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, max.70 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...70 °C
Ratings Iecex/Atex/Cul
- cUL certificate
- cUL Certificate
