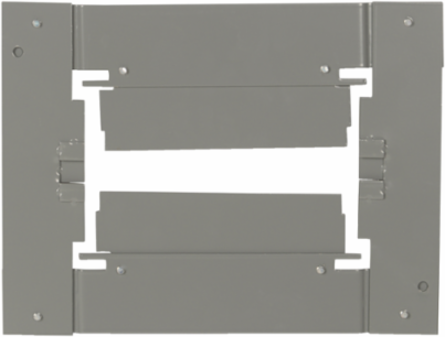

Square D ACF88WF Wall flange, I-Line Busway, 1600A, 600VAC, 3 phase, 4 wire, vertical [TAA]

MPN: ACF88WF
UPC: 785901812593
PPN: SCH-ACF88WF
UNSPSC: 39131701

$1006.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This wall flange is rated 1600A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to terminate the bus into switchgear, motor control centers, switchboards or any rigid bus-to-bus connection. This wall flange can be used with aluminum and copper busways. This unit is for vertical mounting. This wall flange meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.

Features

Improved system protection against environmental contaminants.
Clean and professional finish for wall penetrations.
Supports structural integrity of the busway installation.
Prevents dust and debris from entering the busway system.
This product is TAA, and BAA via COTS compliant.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Compliance	\|TAA Compliant \| BAA Compliant via COTS

Complementary Attributes

Ue Rated Operational Voltage	600 V AC/DC 50/60 Hz

Important Information Attributes

Persona Type Ids	LC, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL 857CSA C22.2 No 27:1994, IEC 61439-6
Local Publishable Date	2026-08-26
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	wall flange
Returnability	Yes
Length Total	13.32 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	Outside of Europe
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1911
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Product Destination	busbar trunking 1600-1600 A aluminium
Range Of Product	I-Line
Sustainable Packaging	No
Width Nominal	10.26 in
Customs Code	8547900040

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP1407015EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1407015EN
