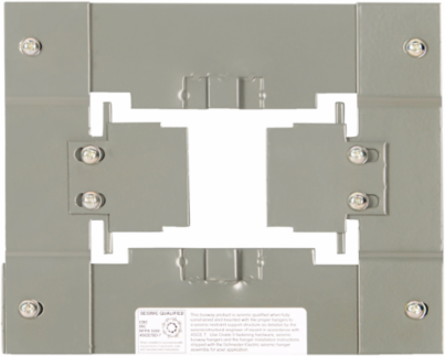

![Wall flange, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, vertical, copper [TAA]](https://images.province-electric.com/SCH-ACF38WF/wall-flange-i-line-busway-medium.webp)
Documentation & Downloads
Square D ACF38WF Wall flange, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, vertical, copper [TAA]
- MPN: ACF38WF
- UPC: 785901812470
- PPN: SCH-ACF38WF
CAD
$1006.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This wall flange is rated 800A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to terminate the bus into switchgear, motor control centers, switchboards or any rigid bus-to-bus connection. This wall flange can be used with copper busways. This unit is for vertical mounting. This wall flange meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Compliance|TAA Compliant | BAA Compliant via COTS
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL 857CSA C22.2 No 27:1994, IEC 61439-6
- Local Publishable Date
- 2025-11-18
- Stocking Flag
- Y
- Scope Perimeter
- Outside of Europe
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1911
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Destination
- busbar trunking 800-800 A copper
- Range Of Product
- I-Line
- Sustainable Packaging
- No
- Length Total
- 8.32 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC 50/60 Hz
- Package Weight(Lbs)
- 6.110 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typewall flange
ReturnabilityYes
Pep CodeENVPEP1407015EN
Width Nominal10.26 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407015EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1407015EN
General Attributes
- Product Or Component Type
- wall flange
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
