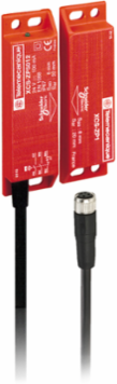

Telemecanique Sensors XCSDMP790L01M12 Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 2 NC, staggered, M12 0.15 m
- MPN: XCSDMP790L01M12
- PPN: TES-XCSDMP790L01M12
- UNSPSC: 39122213
CAD
$236.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XCSDMP Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 normally closed staggered contacts in presence of magnet. It has a rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Cable Length
- 0.15 m
- Component Name
- XCSDMP
- Material
- plastic
- Connector Type
- M12
- Contact Operation
- staggered
- Approach Directions
- 3 directions
- Number Of Poles
- 2
[Ue] Rated Operational Voltage24 V DC
Product Or Component Typecoded magnetic switch
Designrectangular, standard
Size88 x 25 x 13 mm
Contacts Type And Composition2 NC
Electrical Connectionconnector on flying lead
[Ui] Rated Insulation Voltage100 V DC
Complementary
- Maximum [Ie] Rated Operational Current
- 100 mA
- Switching Frequency
- 150 Hz
- Switching Capacity In Ma
- 0.1...100 mA
- Contacts Material
- rhodium
- Resistance Across Terminals
- 10 Ohm
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-5-1
- [Sa] Assured Operating Distance
- 8 mm
- Breaking Capacity
- 10 VA
- Enclosure Material
- thermoplastic PBT
- Depth
- 13 mm
- Safety Level
- can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Height88 mm
Short-Circuit Protection500 mA external cartridge fuse gG (gl)
[Sar] Assured Tripping Distance20 mm
Insulation Resistance1000 MOhm
Net Weight0.18 kg
Maximum Switching Voltage100 V DC
Cable MaterialPVC
Safety Reliability DataB10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Width25 mm
Electrical Durability1200000 cycles
Environment
- Product Certifications
- UL || CSA
- Standards
- CSA C22.2 No 14 || EN/ISO 12100 || UL 508 || EN/IEC 60204-1 || EN/IEC 60947-5-1 || ISO 14119
- Vibration Resistance
- 10 gn 10-150 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
- Maximum Sensitivity To Magnetic Fields
- 0.3 mT
Ambient Air Temperature For Operation-25-85 °C
Shock Resistance30 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Electrical Shock Protection Classclass II EN/IEC 61140
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
