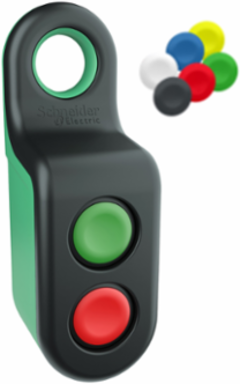

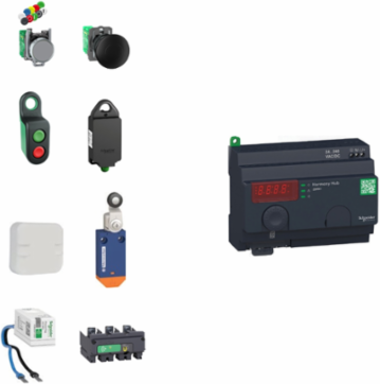

Schneider Electric ZBRM22A0 Wireless Batteryless Pushbutton Transmitter, 22 mm, 0.2 kg, IP65
- MPN: ZBRM22A0
- PPN: SCH-ZBRM22A0
CAD
$305.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

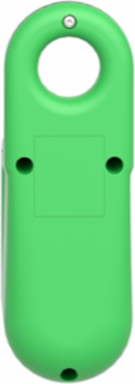

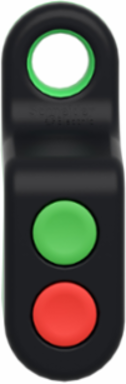

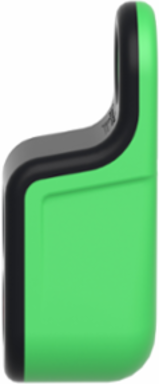

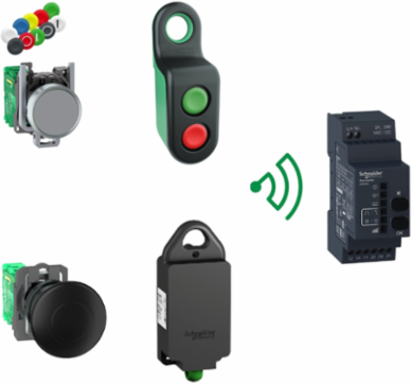

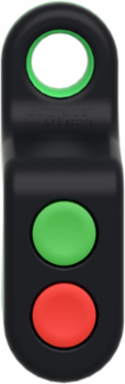

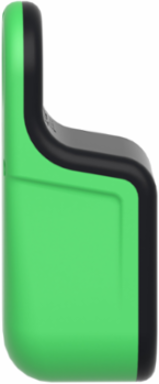

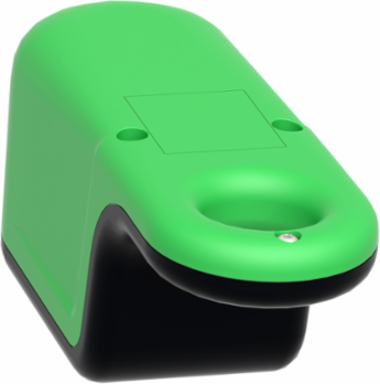

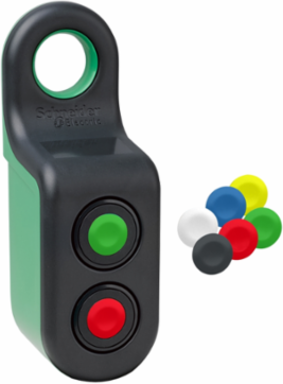

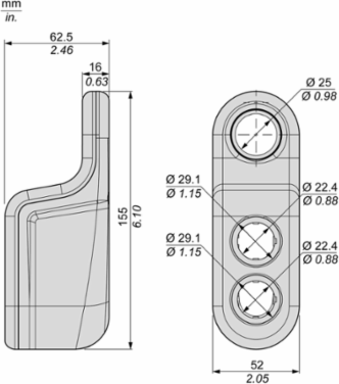

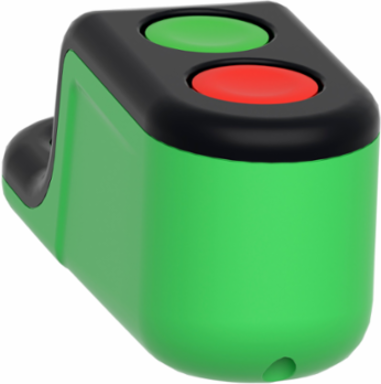

Harmony XB4R-XB5R offer wireless and batteryless interfaces for use in various building utilities and industrial applications. They are based on a transmitter and a receiver, which communicate at a 2.4 GHz radio transmission. System is Zigbee Greenpower certified using an accessory. This plastic moble box has 2 pushbuttons, a ZBRT1 transmitter and a set of push button caps. The unit is 6.10 inches tall, 2.05 inches wide and 2.46 inches deep. The unit weighs 0.44 lbs. The mobile box is UL Listed and CSA certified. "The mobile box is made of polycarbonate with plastic fixing collar and bezel. Its dimensions are 52mm (width) x 62.5mm (depth) x 155mm (height). It weighs 0.2kg." "It is ideal for automotive and logistic centers conveying systems, bottle filling, palletizer and wrapping machines. It is also suitable for lighting and door opening." "This product is certified by C-Tick, CSA, BT 2006/95/EC, EAC, UL and CCC. It meets EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1 and UL 508 standards." "The handy box kit includes 1x set of caps, 1x handy box, 2x transmitter, 2x 22mm pushbutton head and 2x fixing collars." "Complete freedom to place or move the wireless pushbutton anywhere. Battery less devices for no maintenance, no recharge and no recycling." "Harmony universal wireless batteryless devices are compatible with the Ø 22mm Harmony XB4-XB5 actuators."
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Communications & Management Attributes
- Communication Port Protocol
- Zigbee green power 2.4 GHz
Physical Attributes
- Cad Overall Depth
- 65 mm
- Cad Overall Width
- 65 mm
Cad Overall Height163 mm
Complementary Attributes
- Maximum Sensing Distance
- 100 m in free field25 m transmitter in the handy box and receiver in a metal enclosure300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Kit Composition
- 1 set of caps, 1 handy box2 transmitter2 push-button head 22 mm, 2 fixing collars
- Shock Resistance
- 25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Certificate Agency
- C-tick, CSA, BT 2006/95/EC, EAC, UL, CCC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0998837333
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.8274133333
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2009013EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- plastic
- Device Short Name
- XB5R
- Emission Power
- 3 mW
- Group Of Product
- flush push wireless
- Mechanical Durability
- 1000000 cycles
- Mounting Diameter
- 22 mm
- Operating Travel
- 4.3 mm total travel)
- Operator Profile
- flush
- Product Or Component Type
- wireless and batteryless transmitter
- Range Of Product
- Harmony XB5R
- Returnability
- Yes
- Software Version
- EIME v5.8.1
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Pep Code
- ENVPEP2009013EN
- Pep Verification Date
- 2020-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; <lt/> 1kV; EU-27
- Package Weight(Lbs)
- 206.000 g
- Take-back
- No
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 23.1488
- Water Pollution (M3) End Of Life [C1-c4]
- 4.1824
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Radio AgreementRSS UL 508ARIB T66 CSA C22.2 No 14, ICASA, ANATEL, FCC
Vibration Resistance+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase [A4]0.0315552, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00533632, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operation2 simple action push-button
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Fixing Collar Materialplastic
Main Groupwireless push-button
Mechanical Robustnessfree fall resistance 1000 mm IEC 60068-2-32
Operating Force25 N C/O changing electrical state
Operator Additional Informationset of caps
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Response Time< 2 ms< 2 ms
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Type Of Operatorspring return push-button with transmitter
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity Mix; AC; <lt/> 1kV; EU-27
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]18.5696
Customs Code8526925000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Directives
- 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.9641885867
- Environmental Disclosure
- ENVPEP2009013EN
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 95-95 % 70-70 °C without condensation
- Pep Verification Date
- 2020-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Ip Degree Of ProtectionIP65 IEC 60529 front face), IP65 UL Type 12 front face)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2009013EN
Eu Rohs DirectiveCompliant By Exemption
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2009013EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- wireless and batteryless transmitter
Range Of ProductHarmony XB5R
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
