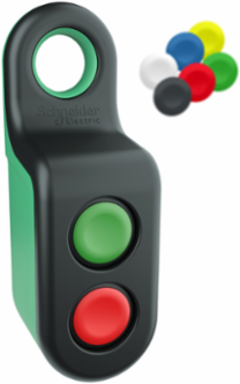

Schneider Electric ZBRM22B0 Harmony XB5R Wireless Transmitter, 22 mm, 2 Push-Buttons, IP65
- MPN: ZBRM22B0
- PPN: SCH-ZBRM22B0
CAD
$326.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This wireless and batteryless transmitter provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5R
- Contact Operation
- 2 double action UP/DOWN push-buttons
- Product Or Component Type
- wireless and batteryless transmitter
- Fixing Collar Material
- plastic
Bezel Materialplastic
Mounting Diameter22 mm
Device Short NameXB5R
Complementary
- Mechanical Robustness
- free fall resistance 1000 mm IEC 60068-2-32
- Operating Force
- 25 N C/O changing electrical state
- Operating Travel
- 4.3 mm total travel)
- Type Of Operator
- spring return push-button with transmitter
- Communication Port Protocol
- Zigbee green power 2.4 GHz
- Kit Composition
- 1 set of caps || 1 handy box || 2 transmitter || 2 push-button head 22 mm || 2 fixing collars
- Shape Of Signaling Unit Head
- round
- Emission Power
- 3 mW
Operator Additional Informationset of caps
Maximum Sensing Distance100 m in free field || 25 m transmitter in the handy box and receiver in a metal enclosure || 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna
Mechanical Durability400000 cycles
Acquisition Time2 ms
Operator Profileflush
Shock Resistance25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Response Time< 2 ms
Net Weight0.2 kg
Environment
- Product Certifications
- BT 2006/95/EC || C-Tick || EAC || CSA || UL || CCC
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- UL 508 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1
- Radio Agreement
- RSS UL 508 || ARIB T66 CSA C22.2 No 14 || ICASA || ANATEL || FCC
- Ip Degree Of Protection
- IP65 IEC 60529 front face) || IP65 UL Type 12 front face)
Ik Degree Of ProtectionIK03 conforming to IEC 50102
Directives2004/108/EC - electromagnetic compatibility || 1999/5/EC - R&TTE directive
Relative Humidity95-95 % 70-70 °C without condensation
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Vibration Resistance5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
