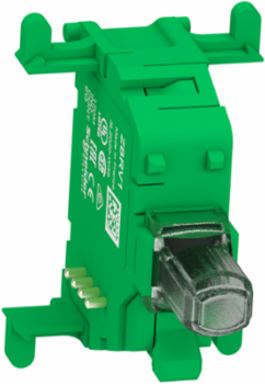

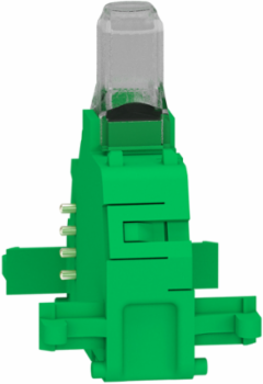

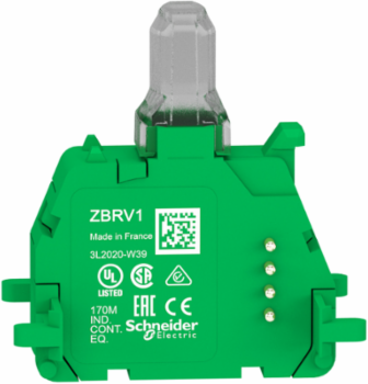

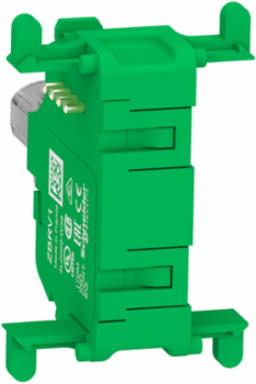

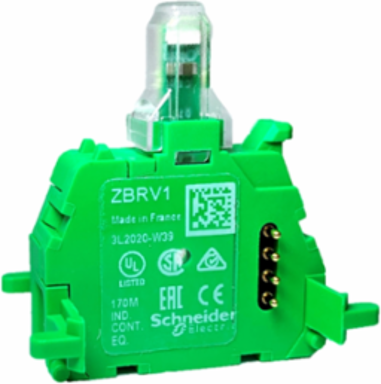

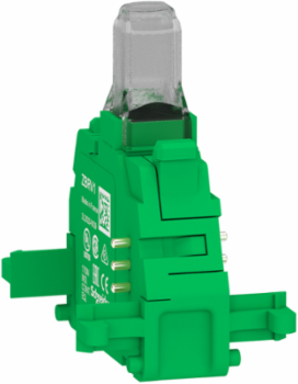

Schneider Electric ZBRV1 Harmony XB5R Visual Feedback Pushbutton - 24.2 mm Width, 37.4 mm Height
- MPN: ZBRV1
- PPN: SCH-ZBRV1
CAD
$76.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Compatible with all XB5 & XB4 actuators(not suitable for safety applications) Enables end users to considerably reduce installation and maintenance costs Suitable for the most demanding environments, depending on the model, up to IP 69, for external use from -40 to 70 °C Possibility to change frequency and highest cybersecurity level Satisfaction with optional feedback( illuminated actuators only) Visual feedback option to easily check functioning Wireless and batteryless pushbuttons including a transmitter equipped with fixing collar a spring return pushbutton head with cap attached
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Cad Overall Depth
- 39.6 mm
- Cad Overall Width
- 24.2 mm
- Light Source Color
- white
Cad Overall Height37.4 mm
Embedding Depth42 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 3 V/m conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 3 V/m (1000...6000 MHz) conforming to IEC 61000-4-3
- Certificate Agency
- CSA, UL Listed, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0084901173
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.1553301333
- Local Data Status
- Publishable
- Pre Comm Date
- 2021-03-29
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2009013EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2049
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- XB5R
- Light Source
- protected LED
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XB5R
- Sale Per Indivisible Quantity
- 1
- Signalling Type
- blinking
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2009013EN
- Pep Verification Date
- 2020-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity Mix; AC; <lt/> 1kV; EU-27
- [Us] Rated Supply Voltage
- 3 V with battery
- Package Weight(Lbs)
- 17.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Vibration Resistance+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase [A4]0.002682192, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0004535872, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]31 kg CO2 eq., 31.0418797733
Local Publishable Date2026-03-26
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier1
Function OptionStandard
Bulb Baseintegral LED
Light Block Supplydirect
Mechanical Durability50000 cycles
Product Or Component Typevisual feedback
ReturnabilityYes
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint31 kg CO2 eq.
Light Source Colorwhite
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
Energy Consumption On Product Lifetime In Kwh52.5746
Energy Model - Installation [A5]Electricity Mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; <lt/> 1kV; EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531200040
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Product Compatibility
- ZBRRA - receiver V2.2 and above), ZBRRC - receiver V2.2 and above), ZBRRD - receiver V2.2 and above), ZBRA1 - antenna V3.3 and above), ZBRN1 - wireless access point V3.32 and above), ZBRN2 - wireless access point V3.32 and above)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2009013EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % 0-55 °C without condensation
- Pep Verification Date
- 2020-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint31.2088358032
Environmental DisclosureENVPEP2009013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2009013EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- visual feedback
Range Of ProductHarmony XB5R
ETIM
- ETIM 8
- EC001358
ETIM 9EC001358
