Schneider Electric ZB5RTA4 Harmony XB5R Wireless Red Spring Return Push Button 22mm
Schneider Electric ZB5RTA4 Harmony XB5R Wireless Red Spring Return Push Button 22mm
- MPN: ZB5RTA4
- PPN: SCH-ZB5RTA4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$126.94/ EA
Description

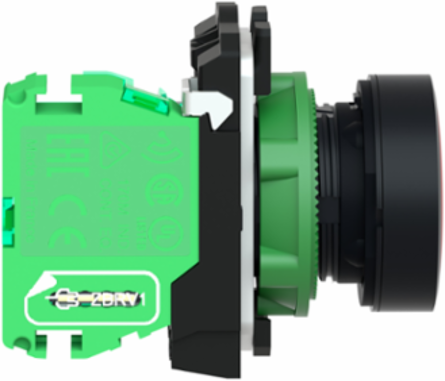

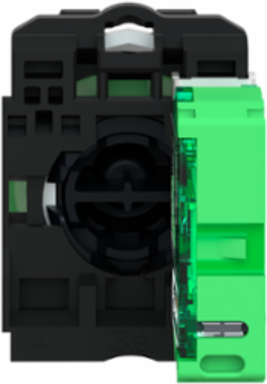

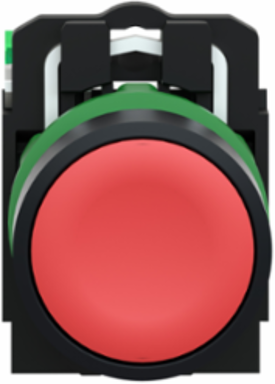

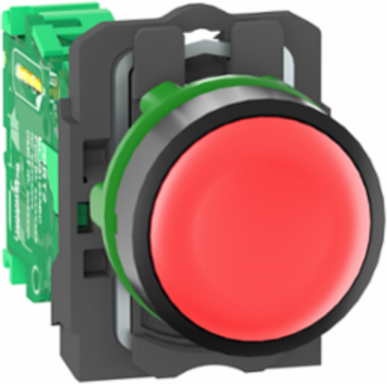

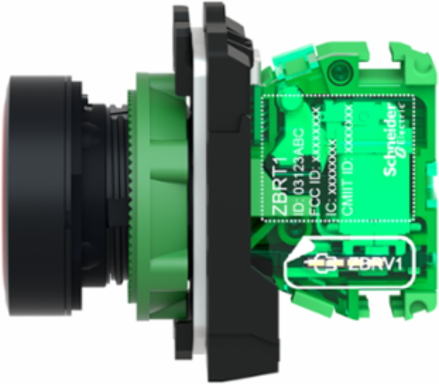

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return flush push button head with red clipped-in cap. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 45g.
Specifications
Environment
- Product Certifications
- BT 2006/95/EC || UL || GOST || CSA || C-Tick
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
- Ambient Air Temperature For Storage
- -40-70 °C
- Mechanical Durability
- 1000000 cycles
Ik Degree Of ProtectionIK03 conforming to IEC 50102
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Vibration Resistance5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Directives1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility
Relative Humidity95-95 % -40-70 °C without condensation
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP101106EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1103010EN
Complementary
- Mechanical Robustness
- free fall resistance 1000 mm EN/IEC 60068-2-32
- Modulation Technique
- O-QPSK
- Embedding Depth
- 42 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Electrical Composition Code
- PW1
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4
- Response Time
- < 2 ms
- Net Weight
- 0.045 kg
- Maximum Sensing Distance
- 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
- Number Of Channels
- 16
- Station Name
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Width
- 30 mm
- Cad Overall Depth
- 43 mm
Operating Force10 N C/O changing electrical state
StandardsCSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508
Operating Travel4.3 mm total travel)
Type Of Operatorspring return push-button with transmitter
Acquisition Time2 ms
Shape Of Signaling Unit Headround
Antenna Gain0 dBi
Cad Overall Height41.5 mm
Max Power Consumption In W1 mW
Operator Profilered flush
Radio AgreementANATEL || ARIB T66 || FCC || ICASA || RSS
Emission Power3 mW
Bandwidth5-5 MHz
Specifications
- Antenna Type
- omnidirectional
- Transmission Frequency
- 2405 MHz
- Product Or Component Type
- wireless and batteryless transmitter
- Level Or Class
- 5M00G7W
- Device Short Name
- XB5R
Range Of ProductHarmony XB5
Mounting Diameter22 mm
Fixing Collar Materialplastic
Bezel Materialdark grey plastic
