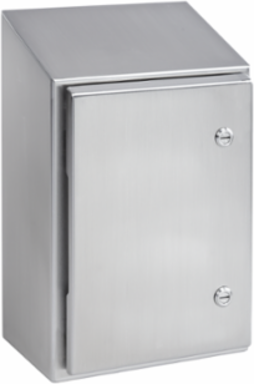

nVent Hoffman WS302408SS WaterShed Wallmount Sloped Top 1/4-Turn Latch Type 4X, 30x24x8, Brushed, SS 304
- MPN: WS302408SS
- UPC: 783510131142
- PPN: HOF-WS302408SS
- UNSPSC: 39121324
CAD
$2152.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
WaterShed designed for sanitary washdown environments, particularly food and beverage manufacturing. This WaterShed Wallmount Sloped Top 1/4-Turn Latch Type 4X, WS302408SS item measures 30x24x8 in. with a material of SS 304, Brushed.
Features
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 97-degree door opening
- Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Enclosures with 'A' dimension of 16.00 in. (406mm) or greater utilize NEMA style panels; models with 'A' dimension less than 16.00 in. (406mm) utilize Junction Box style panels
- Mounting holes in back of body for direct mounting optional stand-off kit or mounting bracket kit
- Furnished hardware kit consists of panel mounting fasteners grounding hardware and sealing washers for wall-mounting hole
Documentation & Downloads
Specifications
Additional
| NEMA Rating | 4X Watertight, corrosion-resistant |
|---|---|
| Weight | 62 lb |
| Finish | Brushed #4 |
| Latch Quantity | 4 |
| Door Edge Slope | 20 degrees top and bottom |
| Seams | Continuously welded and ground smooth |
| Gasket | Seamless foam-in-place |
| Mounting | Mounting holes in back for direct mounting, optional stand-off or bracket kit |
| Bonding and Grounding | Bonding provision on door; grounding stud on body |
| Size | 30.00x24.00x8.00 in |
|---|---|
| Material | Type 304 Stainless Steel |
| Latch Type | 1/4-Turn, Flush Slotted Insert |
| Door Opening Angle | 97 degrees |
| Top Slope Angle | 20 degrees |
| Hinges | Type 304 stainless steel lift-off bullet-style, shielded by door |
| Latch System | Self-grounding with double seal |
| Panel Type | NEMA style panels (A dimension 16 in) |
