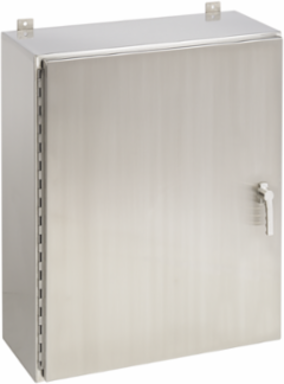

nVent Hoffman A30H2408SSLP3PT Wallmount 3-Point Latch Type 4X, 30x24x8, Brushed, SS 304
- MPN: A30H2408SSLP3PT
- UPC: 783510143114
- PPN: HOF-A30H2408SSLP3PT
- UNSPSC: 39121324
CAD
$3851.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching. This Wallmount 3-Point Latch Type 4X, A30H2408SSLP3PT item measures 30x24x8 in. with a material of SS304, Brushed.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 610
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 2
- IP Rating
- IP66
- Material
- Stainless Steel
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)762
Depth (D)203
FinishBrushed #4
Data PocketLarge
Weight62
Size30.00x24.00x8.00 in
