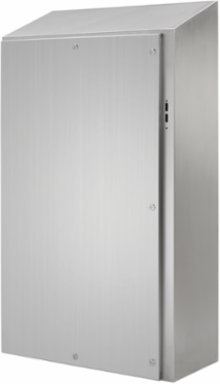

Nvent Hoffman WS30HS2508SS WaterShed Wallmount Disconnect Enclosure Type 4X, 30x25x8, Brushed, SS304
Nvent Hoffman WS30HS2508SS WaterShed Wallmount Disconnect Enclosure Type 4X, 30x25x8, Brushed, SS304
- MPN: WS30HS2508SS
- UPC: 783510136413
- PPN: HOF-WS30HS2508SS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4282.92/ EA
Description
WaterShed, Disconnect enclosures are ideal in food and beverage, washdown applications. This WaterShed Wallmount Disconnect Enclosure Type 4X, WS30HS2508SS item measures 30x25x8 inches with material SS304 finish Brushed.
Features
- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door edges
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top
- 97-degree door opening
- Door edges are sloped 20 degrees at top and bottom
- Slanted flange trough collar along the top edge of the enclosure opening
- Stainless steel quarter-turn latches with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system
- Bonding provision on door; grounding stud on body
- Panel studs fit optional NEMA size panels
- Adjustable door interlock bracket fastened to door
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 635
- Protection Rating
- NEMA Type 4X
- Finish
- Brushed #4
- Latch Quantity
- 4
- Weight
- 65
- Material
- Stainless Steel
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)762
Depth (D)203
Product FamilyWaterShed
Thickness (T)1.98
IP RatingIP66
Sub BrandWaterShed
Size30.00x25.00x8.00 in
