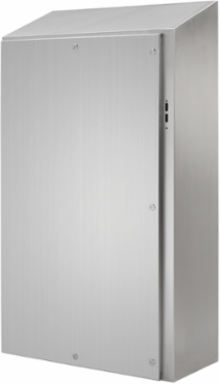

nVent Hoffman WS60HS3716SS WaterShed Wallmount Disconnect Enclosure Type 4X, 60x37x16, Brushed, SS304
nVent Hoffman WS60HS3716SS WaterShed Wallmount Disconnect Enclosure Type 4X, 60x37x16, Brushed, SS304
- MPN: WS60HS3716SS
- UPC: 783510136444
- PPN: HOF-WS60HS3716SS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
WaterShed, Disconnect enclosures are ideal in food and beverage, washdown applications. This WaterShed Wallmount Disconnect Enclosure Type 4X, WS60HS3716SS item measures 60x37x16 inches with material SS304 finish Brushed.
Features
- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door edges
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top
- 97-degree door opening
- Door edges are sloped 20 degrees at top and bottom
- Slanted flange trough collar along the top edge of the enclosure opening
- Stainless steel quarter-turn latches with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system
- Bonding provision on door; grounding stud on body
- Panel studs fit optional NEMA size panels
- Adjustable door interlock bracket fastened to door
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 940
- Protection Rating
- NEMA Type 4X
- Finish
- Brushed #4
- Latch Quantity
- 5
- Weight
- 205
- Material
- Stainless Steel
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)1,524
Depth (D)406
Product FamilyWaterShed
Thickness (T)1.98
IP RatingIP66
Sub BrandWaterShed
Size60.00x37.00x16.00 in
