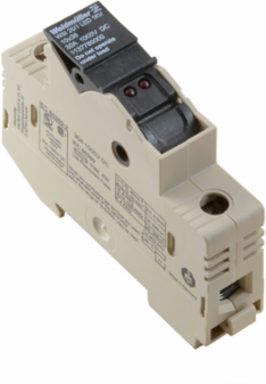

Weidmuller 1137780000 WSI 25/1 10X38/LED 1KV

MPN: 1137780000
PPN: WDM-1137780000

$49.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection

Documentation & Downloads

Specifications

Approvals

Approvals	CSA, EAC, UL
UL File Number Search	E355388

ROHS	Conform

Dimensions And Weights

Width	18 mm
Height	81 mm
Depth	58 mm
Net weight	52.75 g

Width (inches)	0.709 inch
Height (inches)	3.189 inch
Depth (inches)	2.283 inch

Fuse Terminals

Current for fuse with semiconductor protection	25 A
Permitted power loss for the standard fuse variants	3 W
Power loss, 1-pole	0.3 W
Power loss, 2-pole	0.6 W
Wire cross-section for fuse with semiconductor protection	10 mm²

Permitted power loss for fuse with semiconductor protection	4.300000 W/ 10.000000 mm²/ 25.000000 A/
Power loss for fuse with semiconductor protection	4.3 W
Power loss, 1-pole ; 2-pole ; 3-pole	0.300000 W/ 0.600000 W/ 0.900000 W/
Power loss, 3-pole	0.9 W

Csa Rating Data

Certificate No. (CSA)	238018-1868186
Wire cross section min. (CSA)	18 AWG

Wire cross section max. (CSA)	8 AWG

Additional Technical Data

Open sides	closed

Type of mounting	Snap-on

Material Data

Material	PA 66/6
UL 94 flammability rating	V-0

Colour	dark beige

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000899
eClass 9.0	27-14-11-16
eClass 10.0	27-14-11-16

ETIM 7.0	EC000899
eClass 9.1	27-14-11-16

Product Information

Product information	The clamping points must be checked depending on the operating conditions. For normal environmental conditions and load cases, we recommend checking at intervals of 6 months. With unfavourable operating conditions or frequent temperature changes at the clamping points, a shorter interval may be necessary.

System Specifications

Version	Screw connection, Fuse cartridge, with LED, in closed state
Number of potentials	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 35
PE function	No

End cover plate required	No
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Rating Data

Rated cross-section	25 mm²
Rated voltage to adjoining terminal	1,000 V
Rated current	30 A
Standards	IEC 60269-1
Power loss in accordance with IEC 60947-7-x	3.23 W
Pollution severity	3

Rated voltage	1,000 V
Rated DC voltage	1,000 V DC
Current at maximum wires	30 A
Volume resistance according to IEC 60947-7-x	0.32 mΩ
Rated impulse withstand voltage	6 kV

Conductors For Clamping (Rated Connection)

Clamping range, max.	25 mm²
Connection cross-section, stranded, max.	25 mm²
Connection direction	on side
Stripping length	11 mm
Tightening torque, min.	2 Nm
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section, finely stranded, max.	25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	1.5 mm²
Wire connection cross-section, solid core, max.	25 mm²

Clamping range, min.	1.5 mm²
Connection cross-section, stranded, min.	1.5 mm²
Number of connections	2
Tightening torque, max.	2.5 Nm
Type of connection	Screw connection
Wire connection cross section AWG, min.	AWG 18
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	25 mm²
Wire connection cross-section, finely stranded, min.	1.5 mm²
Wire connection cross-section, solid core, min.	1.5 mm²
