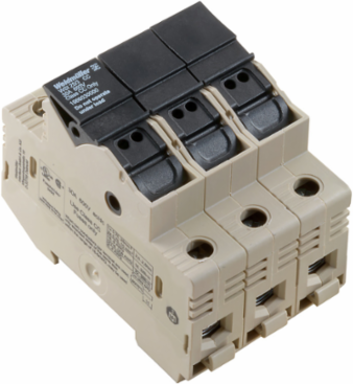

Weidmuller 1966030000 WSI 25/3 CC
- MPN: 1966030000
- PPN: WDM-1966030000
CAD
$73.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection
Documentation & Downloads
Specifications
Additional
| Rated current | 32 A |
|---|---|
| Rated impulse withstand voltage | 6 kV |
| Rated cross-section | 25 mm2 |
| Tightening torque | 2-2.5 Nm |
| Continuous operating temperature range | -50 C to 120 C |
| Pollution severity | 3 |
| Net weight | 154.5 g |
| Number of levels | 1 |
| Mounting type | Snap-on TS 35 rail |
| Colour | dark beige |
| Rated voltage | 690 V |
|---|---|
| Power loss | 3.23 W |
| Wire cross section range | 1.5 mm2 - 25 mm2 (18 AWG - 4 AWG) |
| Operating temperature range | -5 C to 40 C |
| Storage temperature range | -25 C to 55 C |
| Dimensions (Height x Width x Depth) | 81 mm x 54 mm x 58 mm |
| Number of connections | 2 |
| Connection type | Screw connection |
| Material | PA 66/6 |
| Compliance | RoHS, UL Listed (UL File Number E175322), CSA Certified, CE, CULUS, EAC |
