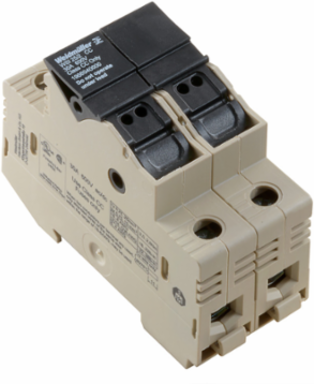

Weidmuller 1966040000 WSI 25/2 CC

MPN: 1966040000
PPN: WDM-1966040000

Spec sheet

Available to Order

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$44.74/ EA

Qty:

Loading add to cart quantity...

Description

W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection

Specifications

Approvals

Approvals: CE, CSA, CULUS, EAC

UL File Number Search: E175322

ROHSConform

Dimensions And Weights

Width: 36 mm

Height: 81 mm

Depth: 58 mm

Weight: 131 g

Width (inches)1.417 inch

Height (inches)3.189 inch

Depth (inches)2.283 inch

Net weight103.333 g

Fuse Terminals

Cartridge fuse: max. 3W for gG/gL max. 1.2W for aM

Fuse holder (cartridge holder)Pivoting

Dimensions

TS 35 offset: 40.5 mm

Csa Rating Data

Certificate No. (CSA): 238018-1868186

Wire cross section min. (CSA): 18 AWG

Wire cross section max. (CSA)3 AWG

Additional Technical Data

Open sides: closed

Type of mountingSnap-on

Material Data

Material: PA 66/6

UL 94 flammability rating: V-0

Colourdark beige

Classifications

ETIM 6.0: EC000899

eClass 9.0: 27-14-11-16

eClass 10.0: 27-14-11-16

ETIM 7.0EC000899

eClass 9.127-14-11-16

UNSPSC30-21-18-01

System Specifications

Version: Screw connection, Fuse cartridge, in closed state

Number of potentials: 1

Number of clamping points per level: 2

Levels cross-connected internally: No

Rail: TS 35

PE function: No

End cover plate requiredYes

Number of levels1

Number of potentials per tier1

PE connectionNo

N-functionNo

PEN functionNo

Temperatures

Storage temperature, max.: 40 °C

Storage temperature: 10 °C...40 °C

Continuous operating temp., max.: 120 °C

Storage temperature, min.10 °C

Continuous operating temp., min.-50 °C

Rating Data

Rated cross-section: 25 mm²

Rated voltage to adjoining terminal: 690 V

Current at maximum wires: 32 A

Volume resistance according to IEC 60947-7-x: 0.32 mΩ

Rated impulse withstand voltage: 6 kV

Rated voltage690 V

Rated current32 A

StandardsIEC 60947-7-3

Power loss in accordance with IEC 60947-7-x3.23 W

Pollution severity3

Conductors For Clamping (Rated Connection)

Clamping range, max.: 25 mm²

Connection cross-section, stranded, max.: 25 mm²

Connection direction: on side

Stripping length: 11 mm

Tightening torque, min.: 2 Nm

Wire connection cross section AWG, max.: AWG 4

Wire connection cross section, finely stranded, max.: 25 mm²

Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 1.5 mm²

Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 1.5 mm²

Wire connection cross-section, solid core, max.: 25 mm²

Clamping range, min.1.5 mm²

Connection cross-section, stranded, min.1.5 mm²

Number of connections4

Tightening torque, max.2.5 Nm

Type of connectionScrew connection

Wire connection cross section AWG, min.AWG 18

Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.25 mm²

Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.25 mm²

Wire connection cross-section, finely stranded, min.1.5 mm²

Wire connection cross-section, solid core, min.1.5 mm²
