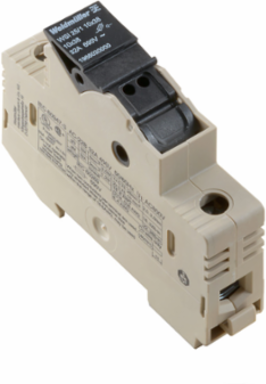

Weidmuller 1966020000 WSI 25/1 10x38
Weidmuller 1966020000 WSI 25/1 10x38
- MPN: 1966020000
- PPN: WDM-1966020000
Spec sheet
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$21.29/ EA
Description
W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection
Specifications
Approvals
- Approvals
- CE, CSA, CULUS, EAC
- UL File Number Search
- E175322
ROHSConform
Dimensions And Weights
- Width
- 18 mm
- Height
- 81 mm
- Depth
- 58 mm
- Weight
- 63 g
Width (inches)0.709 inch
Height (inches)3.189 inch
Depth (inches)2.283 inch
Net weight51.25 g
Fuse Terminals
- Cartridge fuse
- max. 3W for gG/gL max. 1.2W for aM
Dimensions
- TS 35 offset
- 40.5 mm
Csa Rating Data
- Certificate No. (CSA)
- 238018-1868186
- Wire cross section min. (CSA)
- 18 AWG
Wire cross section max. (CSA)3 AWG
Additional Technical Data
- Open sides
- closed
Type of mountingSnap-on
Material Data
- Material
- PA 66/6
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
UNSPSC30-21-18-01
System Specifications
- Version
- Screw connection, Fuse cartridge, in closed state
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 25 mm²
- Rated voltage to adjoining terminal
- 690 V
- Current at maximum wires
- 32 A
- Volume resistance according to IEC 60947-7-x
- 0.32 mΩ
- Rated impulse withstand voltage
- 6 kV
Rated voltage690 V
Rated current32 A
StandardsIEC 60947-7-3
Power loss in accordance with IEC 60947-7-x3.23 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Clamping range, max.
- 25 mm²
- Connection cross-section, stranded, max.
- 25 mm²
- Connection direction
- on side
- Stripping length
- 11 mm
- Tightening torque, min.
- 2 Nm
- Wire connection cross section AWG, max.
- AWG 4
- Wire connection cross section, finely stranded, max.
- 25 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 1.5 mm²
- Wire connection cross-section, solid core, max.
- 25 mm²
Clamping range, min.1.5 mm²
Connection cross-section, stranded, min.1.5 mm²
Number of connections2
Tightening torque, max.2.5 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 18
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.25 mm²
Wire connection cross-section, finely stranded, min.1.5 mm²
Wire connection cross-section, solid core, min.1.5 mm²
