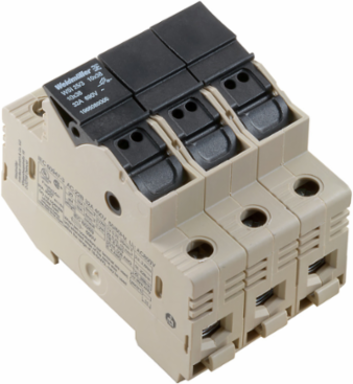

Weidmuller 1444240000 WSI 25/3 10X38/LED
- MPN: 1444240000
- PPN: WDM-1444240000
CAD
$105.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 54 mm |
|---|---|
| Height | 81 mm |
| Depth | 58 mm |
| Net weight | 104 g |
| Width (inches) | 2.126 inch |
|---|---|
| Height (inches) | 3.189 inch |
| Depth (inches) | 2.283 inch |
Fuse Terminals
| Cartridge fuse | max. 3W for gG/gL max. 1.2W for aM |
|---|
Additional Technical Data
| Type of mounting | Snap-on |
|---|
Material Data
| Material | PA 66/6 |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Classifications
| ETIM 6.0 | EC000899 |
|---|---|
| eClass 9.0 | 27-14-11-16 |
| eClass 10.0 | 27-14-11-16 |
| ETIM 7.0 | EC000899 |
|---|---|
| eClass 9.1 | 27-14-11-16 |
System Specifications
| Number of potentials | 1 |
|---|---|
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
| Number of levels | 1 |
|---|---|
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 25 mm² |
|---|---|
| Rated voltage to adjoining terminal | 690 V |
| Current at maximum wires | 32 A |
| Power loss in accordance with IEC 60947-7-x | 3.23 W |
| Pollution severity | 3 |
| Rated voltage | 690 V |
|---|---|
| Rated current | 32 A |
| Volume resistance according to IEC 60947-7-x | 0.32 mΩ |
| Rated impulse withstand voltage | 6 kV |
Conductors For Clamping (Rated Connection)
| Number of connections | 2 |
|---|---|
| Type of connection | Screw connection |
| Stripping length | 11 mm |
|---|
