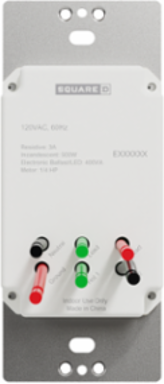

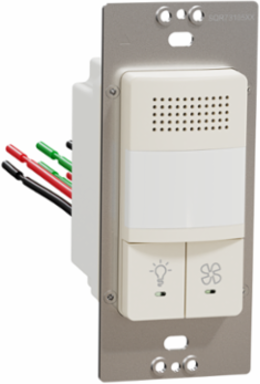

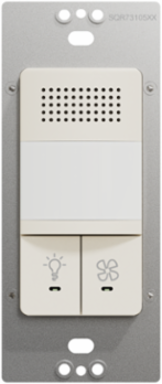

Schneider Electric SQR73105LA X Series 15A 500W Occupancy/Humidity Sensor, Light Almond, 180 FOV

MPN: SQR73105LA
UPC: 785901549710
PPN: SCH-SQR73105LA
UNSPSC: 39122236

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$55.16

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

X Series 15A 500W Occupancy/Humidity Sensor, Light Almond, 180 FOV

Features

Supports multi-switch functionality to save space
Two independent pushbuttons to manually control fan or light
Easy to clean
Wall plate required, sold separately

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Weight	0.2 g

Complementary Attributes

Maximum Horse Power Rating	0.25-0.25 hp
Ue Rated Operational Voltage	120 V

Ie Rated Operational Current Ac	10 A

Important Information Attributes

Persona Type Ids	EUA, LC, SC
Load Type	halogen 0...500 W, incandescent 0...500 Wdimmable LED 0...150 Wfan motor 2.5 A
X Main Color Tint	light almond
Carbon Footprint Of The Distribution Phase A4	0.00002580490196078431, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.00000468686274509804, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	14 kg CO2 eq., 13.975
Local Publishable Date	2026-08-19
Pre Comm Date	2020-12-18
Use Carbon Footprint	13.975
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2012005_V1
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Residential
Aesthetic Name	X Series
Energy Efficiency Optimized	False
Marking	LIGHT-FAN
Mounting Mode	by screws
Network Type	AC
Number Of Poles	1
Product Or Component Type	sensor
Range	Square D X Series
Software Version	EIME v5.9.1
Sustainable Packaging	No
Targeted Channel	distributor
Main Color Tint	light almond
Data Source	extrapolated product
Width Nominal	43 mm
Customs Code	8537109170
Functional Unit Description	The switch device combines a humidity sensor with a passive infrared (PIR) motion detection sensor. The sensor switch reduces bathroom condensation and saves energy on bathroom lighting.
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	20.18

Persona Type Names	Consumer, Contractor, Electrician
Sensor Type	PIR, humidity sensor, light level sensor
Certificate Agency	cULus, ICES-003
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0000945176470588235
Carbon Footprint Of The Manufacturing Phase A1 To A3	0 kg CO2 eq., 0.003719803921568628
Local Data Status	Publishable
Pre Comm Announcement Date	2020-10-30
Return Indicator	Y
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Device Application	control
Market Segment	residential
Material	plastic: strapmetal: fixing frame
Network Frequency	60 Hz
Number Of Gangs	1 gang
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	1 piece
Returnability	Yes
Surface Finish	Matte
Switch Function	1-way
Total Lifecycle Carbon Footprint	0 kg CO2 eq.
Database Version	2016-11
Height Nominal	103 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	24
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	29

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.0175457937254902
Environmental Disclosure	ENVPEP2012005_V1
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2012005_V1
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2012005_V1
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2026-05-29
Psr Version	PSR-0005-ed2-EN-2016 03 29
