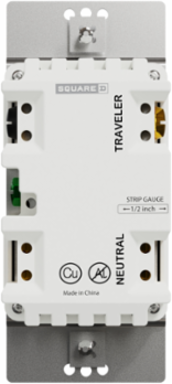

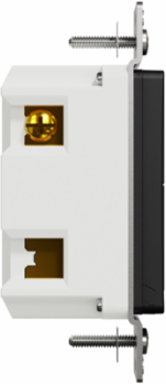

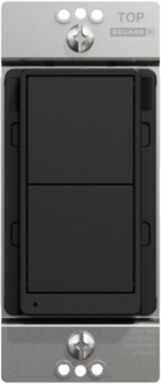

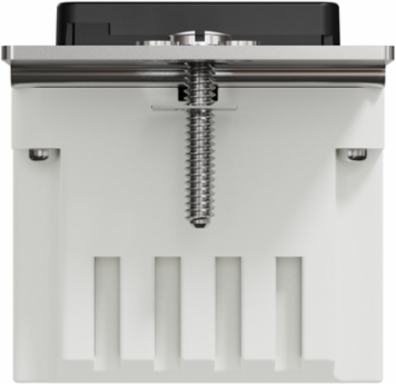

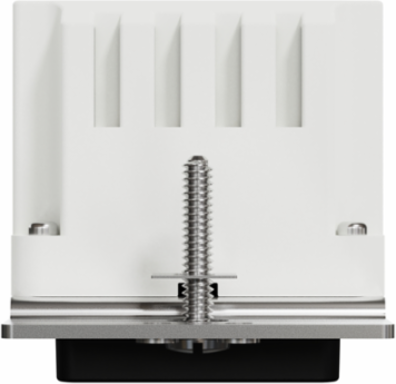

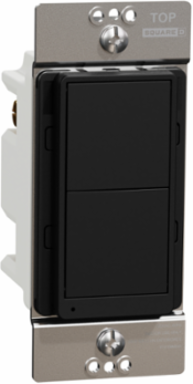

Schneider Electric SQR50101BKZ X Series Z-Wave Plus Rocker Switch, 15A, 120V, Matte Black
- MPN: SQR50101BKZ
- UPC: 785901544500
- PPN: SCH-SQR50101BKZ
CAD
$98.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
X Series residential wiring devices Z-Wave Plus switch offers an array of new features, such as flush mounting, easy installation, and connectivity. Thanks to its Z-Wave Plus connectivity which is compatible with many home automation systems, the lighting can be controlled remotely. The rated operational voltage of this switch is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. The switch is made of metal and plastic making it resistant and durable. This switch has a black frame. It features protective painted surface treatment. This switch benefits from an elegant matt finishing, constituting an added-value for your interior design. This switch has a width of 44 mm, a height of 103 mm and a depth of 45 mm. By offering a solution compatible with several types of installations, this switch is UL 773A and cUlus certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 45 mm |
|---|
Communications & Management Attributes
| Communication Network Type | Z-Wave Plus |
|---|
Physical Attributes
| Color | Black, Black |
|---|---|
| Main Color Tint | black |
| Color Tint | black |
|---|---|
| Signalling Color | blue |
Important Information Attributes
| Persona Type Ids | EU, LC |
|---|---|
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Aesthetic Name | X Series |
| Energy Efficiency Optimized | False |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Rocker | 1 |
| Product Or Component Type | connected switch |
| Returnability | Yes |
| Surface Finish | Matte |
| Sustainable Packaging | No |
| Technology Type | electronic |
| Main Color Tint | black |
| Height Nominal | 103 mm |
| Certificate Agency | cULus |
| [Ue] Rated Operational Voltage | 120 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
| Persona Type Names | End User, Contractor |
|---|---|
| Local Publishable Date | 2026-06-23 |
| Pre Comm Date | 2020-12-18 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Actuator | rocker |
| Device Application | control |
| Local Signalling | 1 LED |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Poles | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | Square D X Series |
| Signalling Function | status |
| Surface Treatment | painted |
| Targeted Channel | distributor |
| Color Tint | black |
| Signalling Color | blue |
| Width Nominal | 44 mm |
| [Ie] Rated Operational Current Ac | 15 A |
| Connections - Terminals | phase and neutral 2 screw terminal copperearth 1 screw terminal copper |
| Package Weight(Lbs) | 161 g |
| Warranty (In Months) | 24 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | connected switch |
|---|
ETIM
| ETIM 8 | EC001590 |
|---|
| ETIM 9 | EC001590 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
