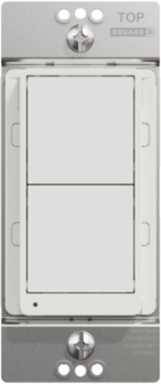

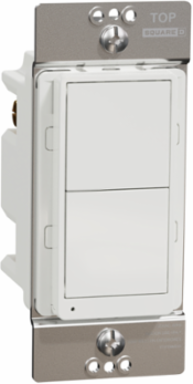

Schneider Electric SQR50101WHZ X Series Z-Wave Plus 15A Switch, 120V, Flush Mount, White
Schneider Electric SQR50101WHZ X Series Z-Wave Plus 15A Switch, 120V, Flush Mount, White
- MPN: SQR50101WHZ
- UPC: 785901544524
- PPN: SCH-SQR50101WHZ
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$85.20/ EA
Description
X Series residential wiring devices Z-Wave Plus switch offers an array of new features, such as flush mounting, easy installation, and connectivity. Thanks to its Z-Wave Plus connectivity which is compatible with many home automation systems, the lighting can be controlled remotely. The rated operational voltage of this switch is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. The switch is made of metal and plastic making it resistant and durable. This switch has a white frame. It features protective painted surface treatment. This switch benefits from an elegant matt finishing, constituting an added-value for your interior design. This switch has a width of 44 mm, a height of 103 mm and a depth of 45 mm. By offering a solution compatible with several types of installations, this switch is UL 773A and cUlus certified.
Specifications
Environment
- Product Certifications
- cULus
StandardsUL 773A || FCC part 15 class B
Contractual warranty
- Warranty
- 2 years
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Complementary
- Communication Network Type
- Z-Wave Plus
- Signalling Function
- status
- Actuator
- rocker
- Signalling Colour
- blue
- Range Compatibility
- Square D WD switch
- Colour Tint
- white
- Targeted Channel
- distributor
- [Ie] Rated Operational Current Ac
- 15 A
- Technology Type
- electronic
- Local Signalling
- 1 LED
- Market Segment
- residential
- Depth
- 45 mm
- Number Of Poles
- 1
Network Frequency60 Hz
Height103 mm
Device Mountingflush
Network TypeAC
Surface Finishmatt

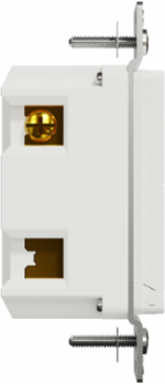

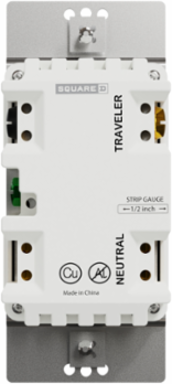

Connections - Terminalsphase and neutral 2 screw terminal copper || earth 1 screw terminal copper
Mounting Modeby screws
Colourwhite
Materialplastic: strap || metal: fixing frame
Width44 mm
Number Of Rocker1
[Ue] Rated Operational Voltage120 V
Specifications
- Aesthetic Name
- X Series
- Range
- Square D X Series
- Device Application
- control
Product Or Component Typeswitch
Device Presentationmechanism with fixing frame
