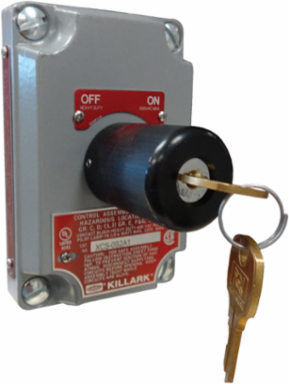

Killark XCS-0K2A1A Aluminum Keyed Selector Switch Cover 1NO/1NC 7.625 Inch x 5.875 Inch x 4.125 Inch
Killark XCS-0K2A1A Aluminum Keyed Selector Switch Cover 1NO/1NC 7.625 Inch x 5.875 Inch x 4.125 Inch
- MPN: XCS-0K2A1A
- UPC: 783936960463
- PPN: HBL-XCS-0K2A1A
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$855.63/ EA
Description
XCS Series - Aluminum Maintained Contact 2-Position Keyed Selector Switch Cover With Device - Keyed Alike With Key Removal In Both Positions - "Off - On" Nameplate - 1NO/1NC Contact Rating
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- SWB
- Depth
- 2-3/4
- Each - Width
- 5.875 in
- Height
- 4.125 in
- Action
- Rotary
- Amperage Rating
- 10 A
- Color
- Black
- Number of Poles
- 1
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Width
- 5.875 in
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- UL File Number
- E53360
- Series
- XCS Series
- BOX SIZE
- 26.130x7.000x6.380 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936960463
- Master Pack Description
- Each
Country of OriginUS
Dimensions7.625 in x 5.875 in x 4.125 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length7.625 in
Actuator2 Position Selector Switch
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
Contact Rating60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC.
Size7.625 in x 5.875 in x 4.125 in
TypeAluminum Cover With 2-Position Key Selector Switch
Frequency Rating50/60 Hz
ARRA CompliantContact Manufacturer
Description - InvoiceCOVER ASSY KEYED 2 POS SEL SWT MAINT
Harmonization Code8536509025
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging1.63
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.150 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
