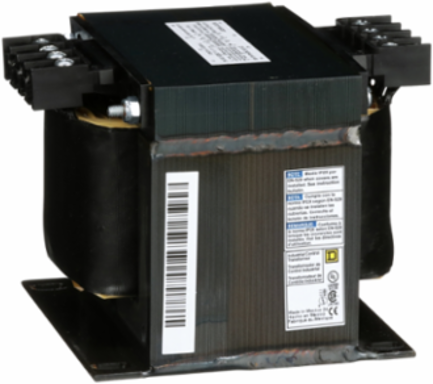

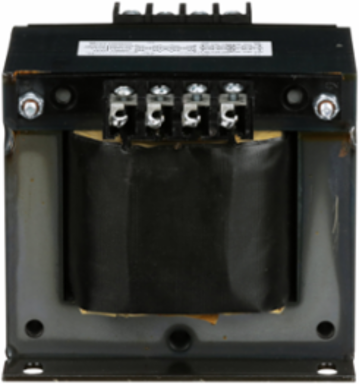

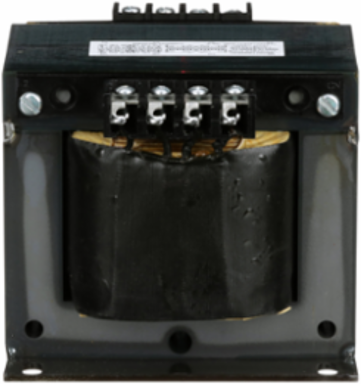

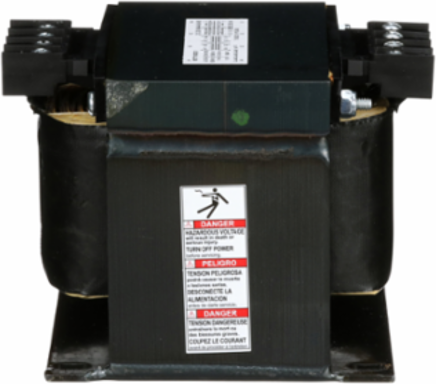

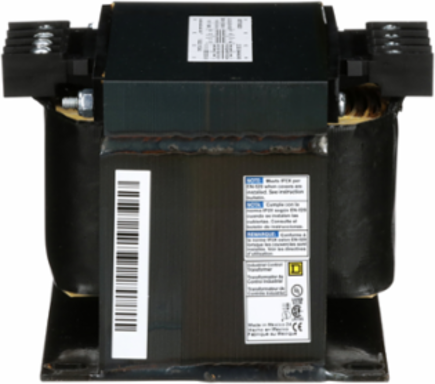

Square D 9070T1000D31 Control Transformer 1000VA 240x480V 1 Phase 4.51 Inch H, 5.25 Inch W, 6.3 Inch D

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 1000VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110/220V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 4.51 in (H), 5.25 in (W), 6.3 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2. This product comes with an 18 month warranty.
