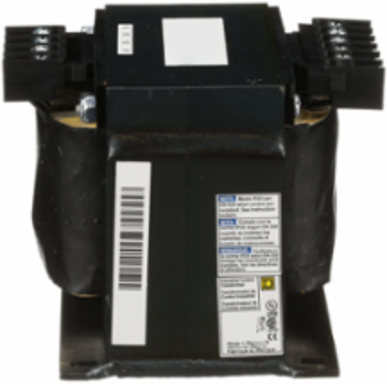

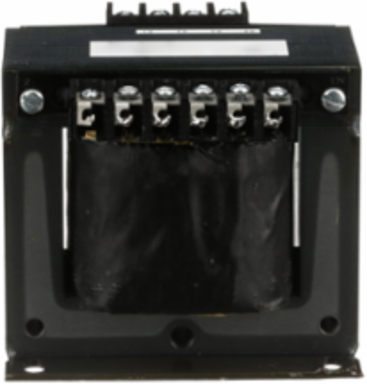

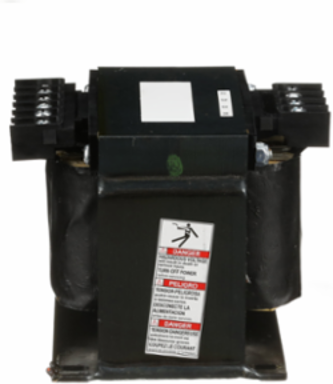

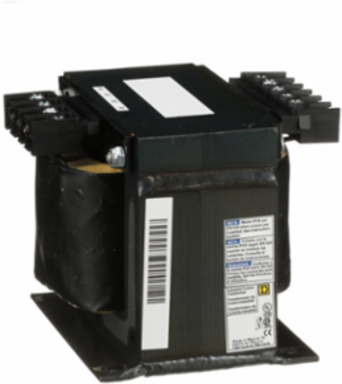

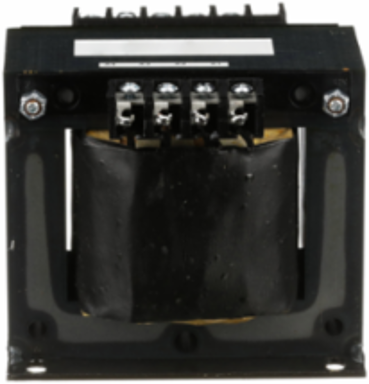

Square D 9070T500D19 Industrial Control Transformer 500VA 1 Phase 208/240/277/380/480V 24V
- MPN: 9070T500D19
- UPC: 785901039303
- PPN: SCH-9070T500D19
CAD
$344.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for efficiency and robust performance, this industrial control transformer from Schneider Electric is an excellent choice for various power distribution applications. With a capacity of 500VA and compatibility with multiple voltage options including 208, 240, 277, 380, and 480 volts, it provides versatile solutions for your electrical systems. Its step-down functionality to 24V ensures reliable operation for control circuits, making it an essential component in industrial setups where precision and safety are paramount.
Features
- Engineered with a highly versatile D19 multi-tap primary, this Type T control transformer seamlessly accepts 208, 240, 277, 380, or 480 VAC inputs and reliably steps the power down to a safe 24 VAC secondary. This universal flexibility eliminates the need to stock multiple dedicated voltage transformers, allowing panel builders to standardize their 24V control power solutions across various global machinery and commercial applications.
- Rated for a robust 500 Volt-Amperes (VA), this Schneider Electric industrial control transformer is precision-wound to maintain excellent voltage regulation during momentary, high-demand loads. By preventing secondary voltage dips when energizing magnetic contactors and solenoids, it permanently eliminates dangerous relay "chatter" and nuisance dropouts, ensuring your automated manufacturing lines run without costly electrical interruptions.
- Constructed with tightly wound copper coils and premium insulation materials, this component operates efficiently at a 115°C temperature rise within a 180°C maximum insulation class. This superior thermal management drastically reduces excess heat radiation inside enclosed panels, actively protecting adjacent PLCs and sensitive drives from thermal degradation while extending the operational lifespan of the transformer itself.
- Designed with rugged screw clamp terminals, this Square D control transformer guarantees a secure, vibration-proof electrical connection that easily withstands the constant rumbling of factory machinery. It is fully compatible with FSC23 finger-safe terminal covers and holds rigorous UL, CSA, and CE certifications, ensuring your panel build smoothly passes local safety inspections and complies with stringent international touch-safe mandates.
Documentation & Downloads
Specifications
Additional
- Power Rating
- 500 VA UL, CSA, NOM, CE
- Primary Voltage
- 208/240/277/380/480 V
- Temperature Rise
- 115 °C
- Height
- 4.51 in
- Depth
- 5.61 in
- Material
- Copper winding
- Product Compatibility
- FSC23
- RoHS Compliance
- Compliant with Exemptions
- Mercury Free
- Yes
- Country of Origin
- US
Number of Phases1 phase
Secondary Voltage24 V
Insulation Temperature180 °C
Width5.25 in
Electrical ConnectionScrew clamp terminals
Enclosure TypeNot rated (open device)
CertificationsUL listed, CSA
PVC FreeYes
Warranty18 months
