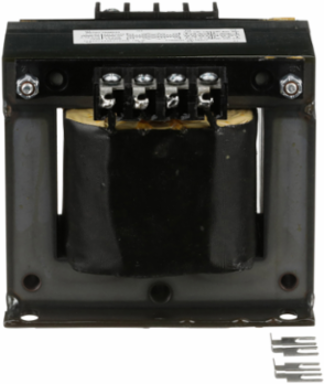

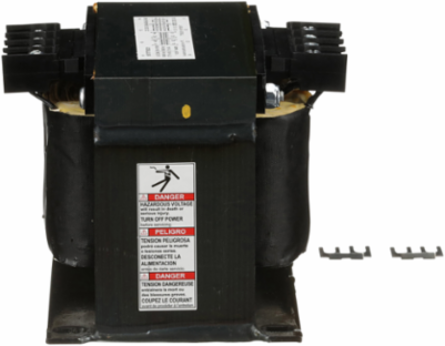

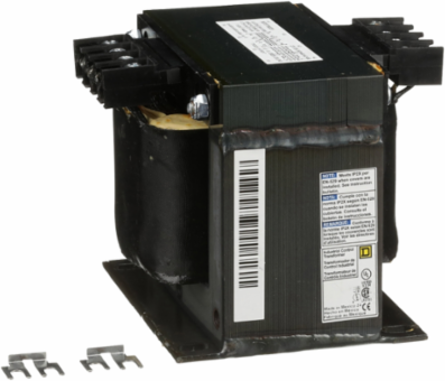

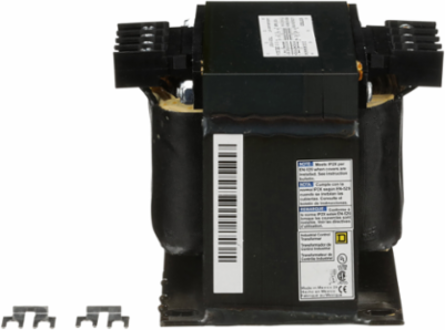

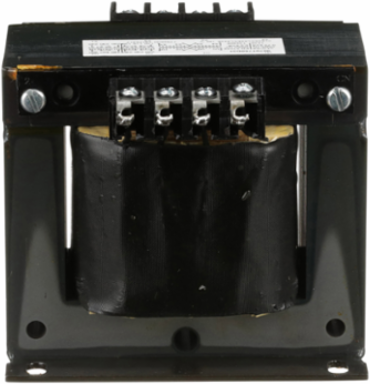

Square D 9070T750D31 Type T Industrial Control Transformer 750VA 1 Phase 240x480V Primary 115°C Rise
- MPN: 9070T750D31
- UPC: 785901845591
- PPN: SCH-9070T750D31
CAD
$428.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type T is our most popular and complete line of control transformers and is best choice if size and cost are of concern. These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 750VA and is single phase. It has a 240/480 V primary voltage and 120/240 V secondary voltage with a temperature rise of 115 °C. Dimensions for this product are 4.51 in (H), 5.25 in (W), 5.61 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
Features
- Featuring a versatile multi-tap primary winding, this control power transformer is designed to convert either 240V or 480V incoming power down to a stable 120V secondary output. This flexibility allows industrial engineers to standardize on a single part number for multiple machine configurations, simplifying inventory and ensuring seamless integration into varied factory electrical environments.
- With a robust 750VA capacity, this Type T transformer provides ample steady-state power for larger contactor coils, industrial relays, and programmable logic controllers (PLCs). Its high-quality copper windings are engineered to handle the momentary high-inrush currents typical of electromagnetic loads, preventing voltage drops that cause control systems to chatter or fail during startup.
- The transformer core and coils are completely encapsulated in a specialized epoxy resin, sealing out dust, moisture, and corrosive airborne contaminants. This rugged construction not only improves heat dissipation but also protects the unit from mechanical vibration and thermal shock, significantly extending the lifespan of your electrical panel in demanding wood shops, metalworking facilities, or chemical plants.
- Designed for easy integration with Schneider’s optional fuse covers and clips, this unit simplifies compliance with NEC 450 and UL 508A requirements for control circuit protection. The built-in terminal blocks feature deep-recessed screw terminals to prevent accidental contact, ensuring your control cabinet remains finger-safe and easily passes safety inspections during commissioning.
Documentation & Downloads
Specifications
Additional
- Rated Power
- 750 VA UL, CSA, NOM; 500 VA CE
- Number of Phases
- 1 phase
- Insulation Temperature
- 180 °C
- Width
- 5.25 in
- Electrical Connection
- Screw clamp terminals
- NEMA Degree of Protection
- Not rated (open device)
- EU RoHS Directive
- Compliant with exemptions
- RoHS Exemption Information
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Contains SVHC above threshold
Primary Voltage240 x 480 V, 120/240 V; also 230 x 460 V, 115/230 V, 220 x 440 V, 110/220 V
Temperature Rise115 °C
Height4.51 in
Depth5.61 in
MaterialCopper winding
CertificationsUL Listed, CSA Certified, CE Certified (files E61239, LR37055 guide 184-N-90)
China RoHS RegulationOut of China RoHS scope
Product CompatibilityFSC2
Mercury FreeYes
Country of OriginMexico
