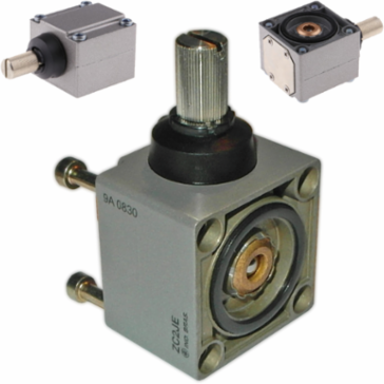

Telemecanique Sensors ZC2JE01 Limit switch head, Limit switches XC Standard, ZC2J, without lever spring return left and right actuation
- MPN: ZC2JE01
- PPN: TES-ZC2JE01
- UNSPSC: 39122213
CAD
$71.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation from left and right, CW and CCW without positive opening operation. Without spring return operating lever. The movement of operating head is rotary. It supports lateral approach in 2 directions. It weighs 0.21kg. It is compatible with XC2J limit switches. It is associated with ZC2JY13, ZC2JY12, ZC2JY11, ZC2JY91, ZC2JY51, ZC2JY81, ZC2JY31 levers and ZC2JC2, ZC2JC28, ZC2JC18, ZC2JD2, ZC2JC1, ZC2JD1 bodies.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | rotary |
| Associated Lever | ZC2JY13 || ZC2JY12 || ZC2JY11 || ZC2JY91 || ZC2JY51 || ZC2JY81 || ZC2JY31 |
| Product Or Component Type | limit switch head |
| Product Compatibility | XC2J |
| Head Type | rotary head |
| Series Name | special format |
|---|---|
| Range Of Product | OsiSense XC |
| Type Of Operator | without operating lever spring return |
| Associated Body | ZC2JC2 || ZC2JC28 || ZC2JC18 || ZC2JD2 || ZC2JC1 || ZC2JD1 |
| Device Short Name | ZC2J |
Complementary
| Switch Actuation | from left and right || CW and CCW |
|---|---|
| Head Material | metal |
| Positive Opening | without |
|---|---|
| Net Weight | 0.21 kg |
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
