Tripp Lite PDUMV20HVNETLX 3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA

3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
3.2–3.8kW Single-Phase Switched PDU with LX Platform Interface, 200–240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
  • MPN: PDUMV20HVNETLX
  • UPC: 037332205292
  • PPN: TRP-PDUMV20HVNETLX

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1901.41/ EA

Description

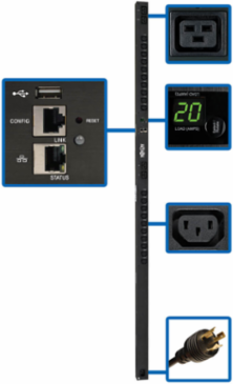

3.2–3.8kW vertical PDU distributes, monitors and manages single-phase power in an IT or industrial environment. Built-in network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

  • 3.2–3.8kW 200/208/230/240V switched PDU
  • 24 individually controllable outlets—20 C13, 4 C19
  • Built-in LX Platform interface for 24/7 remote access
  • Auto Probe for Autonomous Device Management
  • Digital ammeter for on-site load monitoring in real time

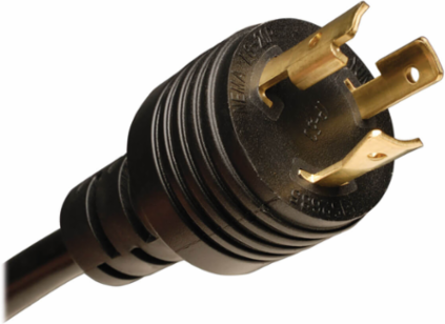

  • C20 inlet with 10ft NEMA L6-20P AC power cord
  • To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
  • 2-year limited warranty
  • Distributes Network-Grade Single-Phase Power
  • 24 Switched Outlets Distribute AC Power
  • Digital Ammeter
  • Built-In LX Platform Interface
  • Broad Communications Compatibility
  • Reduce Service Calls with Auto Probe Autonomous Device Management
  • Easy 0U Installation in EIA-Standard 19 in. Racks
  • TAA-Compliant

Specifications

Certifications

Certifications
Tested to UL 60950-1:2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), IEC 60950-1: 2005 (CE), FCC Class A, EN55022:2010+2011, EN55024:2010 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Physical

Form Factors Supported

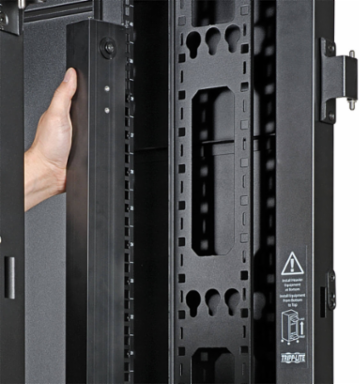

0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
Shipping Dimensions (hwd / in.)
5.30 x 6.40 x 73.00
Unit Dimensions (hwd / in.)
70 x 2.19 x 2.65
PDU Form FactorVertical (0U)
Shipping Weight (lbs.)14.20
Unit Weight (lbs.)8.5

User Interface, Alerts & Controls

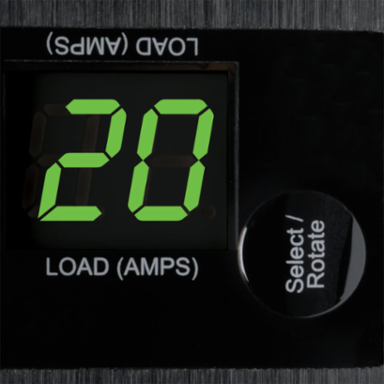

Front Panel LCD Display
Digital meter reports PDU output current in amps
Switches
Push button to rotate digital display and view IP address. LX Platform Interface: Recessed rest switch for interface reboot and factory reset
Front Panel LEDs24 power availability LEDs confirm power off/on status for each built-in outlet; LX Platform Interface status LED (Green); Network Link/Activity LED (Yellow), Network Speed LED (Green)

Input

PDU Input Voltage
200; 208; 220; 230; 240
Maximum Input Amps
20
Input Connection Type
C20 inlet accepts included L6-20P input cable
Input Phase
Single-Phase
Recommended Electrical Service20A 208/240V; 16A 230V
Maximum Input Amps DetailsAgency de-rated to 16A continuous
PDU Plug TypeNEMA L6-20P; IEC-320 C20
Input Cord Length (ft.)10

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles

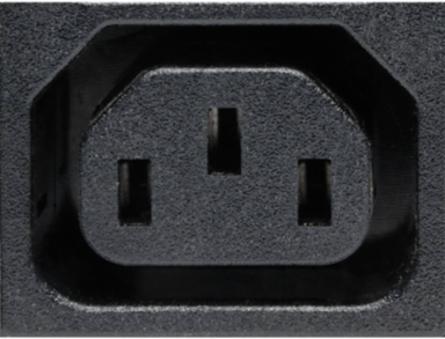

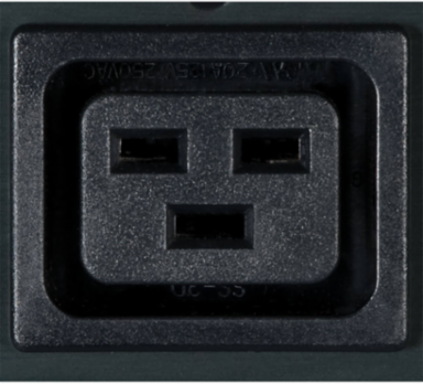

(20) C13; (4) C19
Overload Protection
n/a
Output Capacity Details3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Output Nominal Voltage200; 208; 220; 230; 240
Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface

Communications

Network Monitoring Port

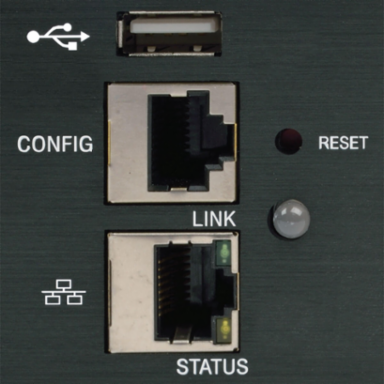

RJ45 Network port; RJ45 Config/Console Access port; USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP CompatibilityPre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Environmental

Storage Temperature Range
-30°C to +60°C (-22°F to +140°F)
Relative HumidityUp to 95% non-condensing

Overview

UPC Code
037332205292
PDU TypeSwitched

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty
