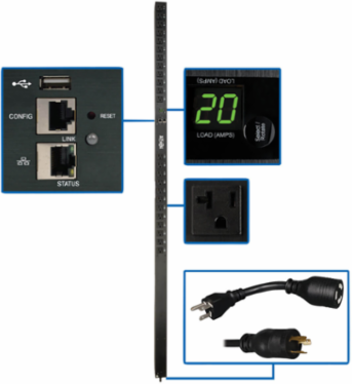

Tripp Lite PDUMV20NETLX 1.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord with L5-20P, 0U, TAA

1.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord with L5-20P, 0U, TAA - https://media.province-electric.com/tripplite/2020q1/ac64204ed75d51a0de5f73532c2af7599a524cf2-medium.png

1.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord with L5-20P, 0U, TAA

Tripp Lite PDUMV20NETLX 1.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord with L5-20P, 0U, TAA

MPN: PDUMV20NETLX
UPC: 037332205315
PPN: TRP-PDUMV20NETLX

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1702.49/ EA

Qty:

Loading add to cart quantity...

Description

1.9kW vertical PDU distributes, monitors and manages single-phase power in an IT environment with no Java required. Built-in network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

1.9kW 120V single-phase switched 0U PDU
24 individually controllable NEMA 5-15/20R outlets
Built-in LX Platform interface for 24/7 remote access
Auto Probe for Autonomous Device Management
Digital ammeter for on-site load monitoring in real time

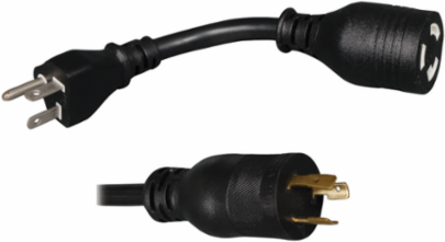

NEMA L5-20P input with 10 ft. AC power cord and 5-20P adapter
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
2-year limited warranty
Distributes Network-Grade AC Power

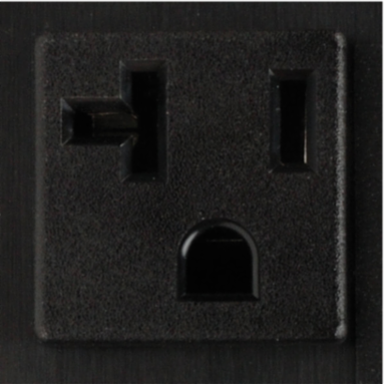

24 Switched NEMA 5-15/20R Outlets Distribute AC Power

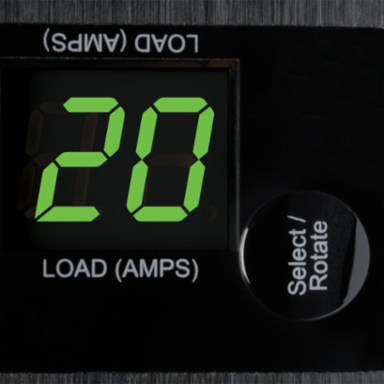

Digital Ammeter

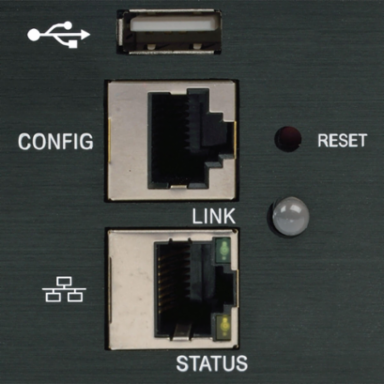

Built-In LX Platform Interface
Broad Communications Compatibility
Reduce Service Calls with Auto Probe Autonomous Device Management

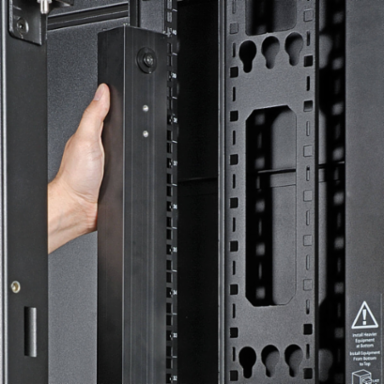

Easy 0U Installation in EIA-Standard 19 in. Racks
TAA-Compliant

Specifications

Certifications

Certifications: Tested to UL 60950-1:2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Physical

Form Factors Supported: 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks

Shipping Dimensions (hwd / in.): 4.00 x 6.00 x 72.50

Unit Dimensions (hwd / in.): 70 x 2.19 x 2.65

PDU Form FactorVertical (0U)

Shipping Weight (lbs.)15.50

Unit Weight (lbs.)8.5

User Interface, Alerts & Controls

Front Panel LCD Display: Digital meter reports PDU output current in amps

Switches: Push button to rotate digital display and view IP address. LX Platform Interface: Recessed reset switch for interface reboot and factory reset

Front Panel LEDs24 power availability LEDs confirm power off/on status for each built-in outlet. LX Platform Interface: Network Link/Activity Status LED (Yellow), Network Speed LED (Green); LX Platform status LED (Green)

Input

PDU Input Voltage: 100; 120; 127

Maximum Input Amps: 20

PDU Plug Type: NEMA 5-20P; NEMA L5-20P

Input Cord Length (ft.): 10

Recommended Electrical Service20A 120V

Maximum Input Amps DetailsAgency de-rated to 16A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (24) 5-15/20R

Overload Protection: n/a

Output Capacity Details2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet

Output Nominal Voltage100; 120; 127

Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface

Communications

Network Monitoring Port: RJ45 Network port, RJ45 Config/Console Access port; USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.

SNMP CompatibilityPre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, Telnet, SSH, CLI and SNMP management systems
